13A-145F063 - Troy-Bilt LTX Lawn Tractor (1998) Electrical Assembly Parts Diagram

LTX Lawn Tractor

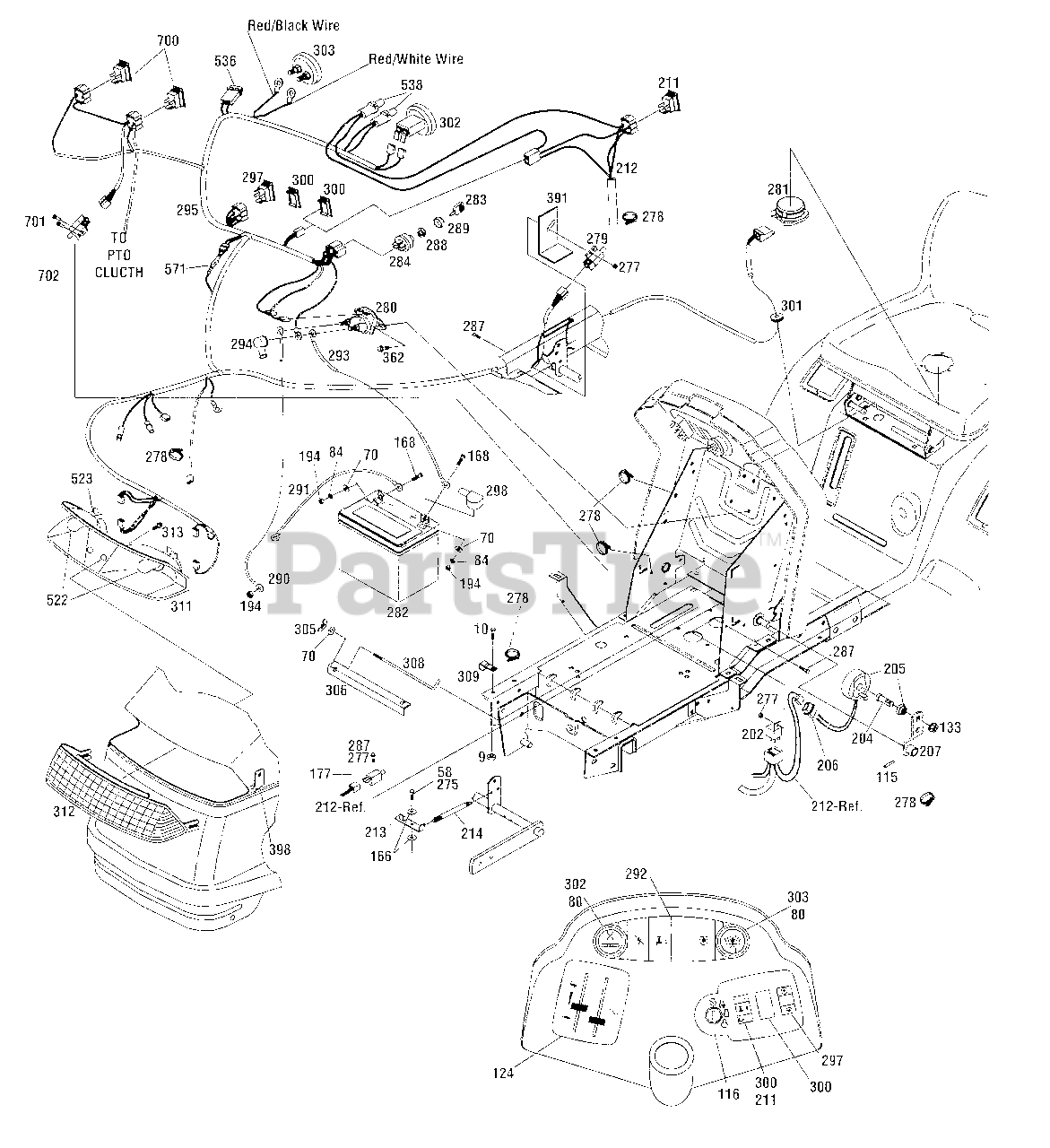

Electrical Assembly Parts Diagram

  • Title

9

Troy-Bilt 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

Note: Model 13123, Model 13104

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

Hex Head Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

Note: Model 13123, Model 13104

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 1734398

Top Locknut, 1/4-20
(Superseded to 912-0291)

Note: Model 13105

$

$

Not available

70

Troy-Bilt 1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

80

MTD 1772950

Cap

Note: Model 13123, Model 13104

$

$

Not available

84

Troy-Bilt 1100241

Lockwasher, 1/4 SAE
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

115

MTD 1120210

Drive Pin, 3/16 x 1

Note: Model 13105

$

$

Not available

116

MTD 1772916

Ignition Decal

$

$

Not available

124

MTD 1772915

Control Decal

Note: Model 13123

$

$

Not available

Troy-Bilt 1772914

Control Decal

Note: Model 13104, 13105

$

$

Currently unavailable

133

MTD 1186396

Flange Nut, 7/16-20

Note: Model 13105

$

$

Not available

166

Troy-Bilt 1720883

Washer, 1/4 x 1-1/4

Note: Model 13105

$

$

Not available

168

Troy-Bilt 1100805

Hex Head Screw, 1/4-20 x 3/4
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

177

MTD 1748723

Push-Button Switch

Note: Model 13105

$

$

Not available

194

Troy-Bilt 1186229

Hex Nut, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

202

MTD 1749907

Relay

Note: Model 13105

$

$

Not available

204

Troy-Bilt 1750736

Special Screw

Note: Model 13105

$29.99

$

Usually ships in 3-6 days

0

205

Troy-Bilt 1768971

Magnet

Note: Model 13105

$173.99

$

Usually ships in 3-6 days

0

206

MTD 1767852

Housing Pin Terminal

Note: Model 13105

$

$

Not available

207

MTD 1773617

Cruise Arm

Note: Model 13105

$

$

Not available

211

Troy-Bilt 1766350

Cruise Switch

Note: Model 13105

$

$

Not available

212

MTD 1766351

Cruise Harness

Note: Model 13105

$

$

Not available

213

MTD 1767803

Cruise Arm

Note: Model 13105

$

$

Not available

214

MTD 1767822

Spring

Note: Model 13105

$

$

Not available

275

Troy-Bilt 1111599

Hex Head Screw, 1/4-20 x 5/8
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

277

Troy-Bilt 1185985

Keps Nut, #10-24
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

278

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

279

Troy-Bilt 1751328

Push-Button Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

280

Troy-Bilt 1752137

Solenoid
(Superseded to 1752137P)

$70.99

$

Usually ships in 3-6 days

0

281

MTD 1768882

Seat Switch

$

$

Not available

282

Troy-Bilt 725-1737

Battery
(Superseded to 925-1707D)

$

$

Not available

283

MTD 1753986

Key

$

$

Not available

284

Troy-Bilt 1754250

Ignition Switch
(Superseded to 1754250P)

$73.99

$

Usually ships in 3-6 days

0

287

Troy-Bilt 1758070

Sems Screw, #10-24 x 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

288

Troy-Bilt 1758146

Ignition Switch Mounting Nut
(Superseded to 925-1346)

$

$

Not available

289

Troy-Bilt 1758147

Cap
(Superseded to 725-1347)

$4.99

$

In Stock, only 1 left!

0

290

Troy-Bilt 1764898

Starter Cable
(Superseded to 629-0700)

$

$

Not available

291

MTD 1764886

Negative Battery Cable

$

$

Not available

292

UNKNOWN

$

$

Not available

293

MTD 1764888

Battery Cable

$

$

Not available

294

MTD 1764890

Solenoid Boot

$

$

Not available

295

MTD 629-3051

Main Harness

Note: Model 13123, Model 13104

$

$

Not available

Troy-Bilt 629-3052

Main Harness

Note: Model 13105

$

$

Not available

297

Troy-Bilt 1771865

PTO Switch

$92.99

$

In Stock, only 2 left!

0

298

MTD 1764888

Terminal Boot

$

$

Not available

300

MTD 1766184

Switch Cover

Note: Model 13123, Model 13104

$

$

Not available

301

MTD 1772922

Grommet

$

$

Not available

302

MTD 1757364

Hour Meter

Note: Model 13105

$

$

Not available

303

Troy-Bilt 1725031

Ammeter
(Superseded to 925-3141)

Note: Model 13105

$62.99

$

In Stock, only 4 left!

0

305

MTD 1709652

Wing Locknut,1/4-20

$

$

Not available

306

MTD 1765258001

Battery Clamp

$

$

Not available

308

Troy-Bilt 1766163

Hook Bolt
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

309

MTD 1747738

J-Clamp

$

$

Not available

311

Troy-Bilt 1772002

Headlight Reflector

$

$

Not available

312

MTD 1765400

Lens

$

$

Not available

313

MTD 1185712

Self-Threading Screw

$

$

Not available

362

MTD 1724492

Self-Tapping Screw, 1/4-20 x 1/2

$

$

Not available

391

MTD 1772387

Switch Bracket

$

$

Not available

398

MTD 1772906

Clip

$

$

Not available

522

Troy-Bilt 1772001

Headlight Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

523

MTD 1752875

Socket

$

$

Not available

536

Troy-Bilt 1768969

Fuse
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

538

MTD 1764897

Panel Light Bulb

$

$

Not available

571

MTD 1755616

Diode

$

$

Not available

700

Troy-Bilt 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

701

Troy-Bilt 710-1003

Tap Screw, #10-16 x 5/8
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

702

Troy-Bilt 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

703

Troy-Bilt 721-0342

Relay Gasket
(Superseded to 921-0342)

Note: (Not Shown)

$7.99

$

In Stock, only 3 left!

0
