13A-145F063 - Troy-Bilt LTX Lawn Tractor (1998) Body & Trim Assembly Parts Diagram

LTX Lawn Tractor

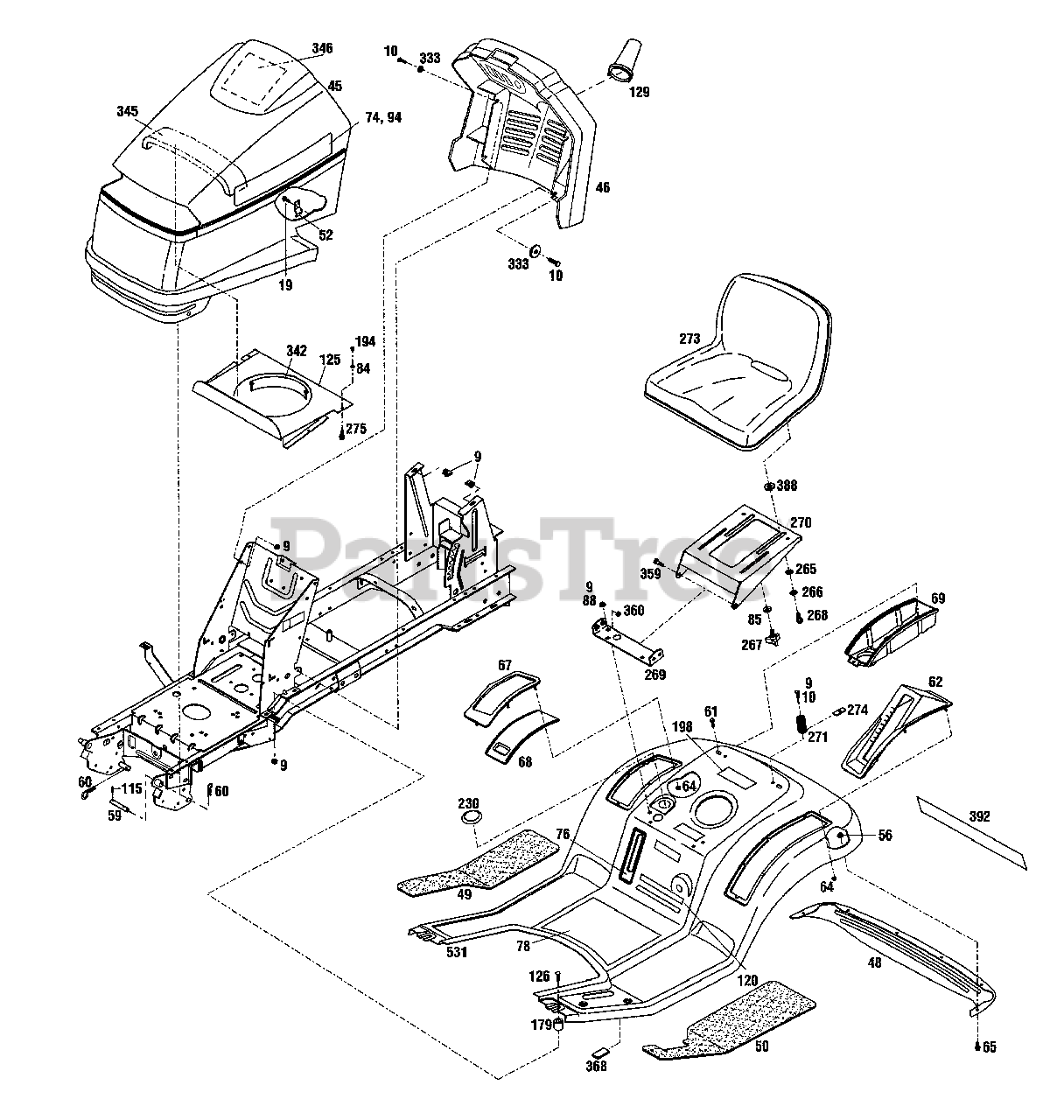

Body & Trim Assembly Parts Diagram

  • Title

9

Troy-Bilt 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

Hex Head Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

MTD 1772878

Self Threading Screw, #10

$

$

Not available

45

MTD 1765382

Hood

$

$

Not available

46

MTD 1772896

Console

$

$

Not available

48

MTD 1765331010

Rear Fender Trim

$

$

Not available

49

MTD 1772846

Right Foot Pad

$

$

Not available

50

Troy-Bilt 1772845

Left Foot Pad

$

$

Not available

52

MTD 1773591

Latch

$

$

Not available

56

Troy-Bilt 1186389

Flange Nut,1/4-20

$3.49

$

Usually ships in 3-6 days

0

?57

Troy-Bilt 1761680

Self Threading Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

59

Troy-Bilt 1773226

Hood Pivot Pin

$

$

Not available

60

MTD 1723478

Cotter Spring, 1/8

$

$

Not available

61

Troy-Bilt 1186330

Screw, 5/16-18 x 7/8
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

62

MTD 1772979

Lift Handle Cover

Note: Model 13123, Model 13104

$

$

Not available

?63

MTD 1901900

American Legend Decal

$

$

Not available

64

Troy-Bilt 1750532

Self-Threading Nut, 1/4
(Superseded to 712-0415)

$5.49

$

In Stock, only 3 left!

0

65

Troy-Bilt 1186309

Flange Screw, 1/4-20 x 1/2

$

$

Not available

67

MTD 1765493

Storage Top

$

$

Not available

68

MTD 1765492

Container Cover

$

$

Not available

69

MTD 1765494

Storage Container

$

$

Not available

74

Troy-Bilt 191-5781

Logo Decal, L.H.

$

$

Currently unavailable

76

MTD 1773205

Fuel Level Decal

$

$

Not available

78

Troy-Bilt 1772965

Tunnel Decal

Note: Model 13123, Model 13104

$

$

Currently unavailable

Troy-Bilt 1772966

Tunnel Decal

Note: Model 13105

$

$

Currently unavailable

84

Troy-Bilt 1100241

Lockwasher, 1/4 SAE
(Superseded to 936-0329)

Note: Model 13123, Model 13104

$4.49

$

In Stock, Qty 11

0

Troy-Bilt 1100241

Lockwasher, 1/4 SAE
(Superseded to 936-0329)

Note: Model 13105

$4.49

$

In Stock, Qty 11

0

85

Troy-Bilt 1107383

Flat washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

88

Troy-Bilt 1186097

Carriage Bolt, 5/16-18 x 5/8
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

94

Troy-Bilt 191-5780

Logo Decal, R.H.

$

$

Currently unavailable

115

MTD 1120210

Drive Pin, 3/16 x 1

$

$

Not available

120

MTD 1773223

Height Indicator Decal

$

$

Not available

125

MTD 1773622001

Upper Heat Shield

Note: Model 13105

$

$

Not available

126

Troy-Bilt 1186469

Carriage Bolt, 5/16-18 x 3/4
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

129

MTD 1773236

Steering Cover

$

$

Not available

?133

Troy-Bilt 1723384

Washer
(Superseded to 736-3089)

$

$

Not available

179

MTD 1730681

Spacer

$

$

Not available

194

Troy-Bilt 1186229

Hex Nut, 1/4-20
(Superseded to 712-3006)

Note: Model 13123, Model 13104

$4.99

$

In Stock, Qty 19

0

Troy-Bilt 1186229

Hex Nut, 1/4-20
(Superseded to 712-3006)

Note: Model 13105

$4.99

$

In Stock, Qty 19

0

198

MTD 1767876

Fuel Decal

$

$

Not available

230

MTD 1768787

Cap

$

$

Not available

265

MTD 1705793

Nylon Washer, 3/8

$

$

Not available

266

Troy-Bilt 1706782

Bowed Washer, 3/8

$2.49

$

In Stock, only 1 left!

0

267

MTD 1734269

Adjusting Knob

$

$

Not available

268

Troy-Bilt 1754125

Shoulder Bolt, 3/8-18 x 1/2

$

$

Not available

269

MTD 1766075001

Seat Bracket

$

$

Not available

270

MTD 1766074001

Seat Support

$

$

Not available

271

Troy-Bilt 1766077

Compression Spring

$12.99

$

Usually ships in 3-6 days

0

273

MTD 1774127

High Back Seat

$

$

Not available

274

Troy-Bilt 1766347

Spring Hold-Down Bracket

$

$

Not available

275

Troy-Bilt 1111599

Screw, 1/4-20 x 5/8
(Superseded to 710-0751)

Note: Model 13123, Model 13104

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 1111599

Screw, 1/4-20 x 5/8
(Superseded to 710-0751)

Note: Model 13105

$3.99

$

In Stock, Qty 20+

0

333

Troy-Bilt 1723384

Flat Washer, 5/16 x 1-1/2
(Superseded to 736-3089)

$

$

Not available

342

MTD 1767897

Heat Shield Gasket

Note: Model 13105

$

$

Not available

345

MTD 1767898

Sealing Strip

Note: Model 13105

$

$

Not available

346

MTD 1773105

Service Decal

$

$

Not available

359

Troy-Bilt 1100913

Hex Head Screw, 3/8-18 x 7/8
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

360

Troy-Bilt 1110108

Locknut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

368

MTD 1767995

Pad

$

$

Not available

388

Troy-Bilt 1893445

Flat Washer, 3/8
(Superseded to 936-0133)

$

$

Not available

392

Troy-Bilt 1915505

Decal, Model

Note: Model 13123

$

$

Currently unavailable

Troy-Bilt 1772804

Decal, Model

Note: Model 13104

$

$

Currently unavailable

Troy-Bilt 1772805

Decal, Model

Note: Model 13105

$

$

Currently unavailable

531

MTD 1772963

Rear Fender

Note: (Incl. Refs. 78 & 198); Model 13123, Model 13104

$

$

Not available

MTD 1772964

Rear Fender

Note: (Incl. Refs. 78 & 198); Model 13105

$

$

Not available

?600

Troy-Bilt 1735222

Black Spray Paint, 13 oz.
(Superseded to 788-0637A)

Note: Not included with unit-order separately.

$30.99

$

In Stock, only 1 left!

0

?601

Troy-Bilt 1900706

Red Spray Paint, 13 oz.
(Superseded to 788-0638A)

Note: Not included with unit-order separately.

$24.99

$

Usually ships in 3-6 days

0
