13A-130F063 - Troy-Bilt LTX Lawn Tractor (1998) Peerless 930 5-Speed Transmission Assembly Parts Diagram

LTX Lawn Tractor

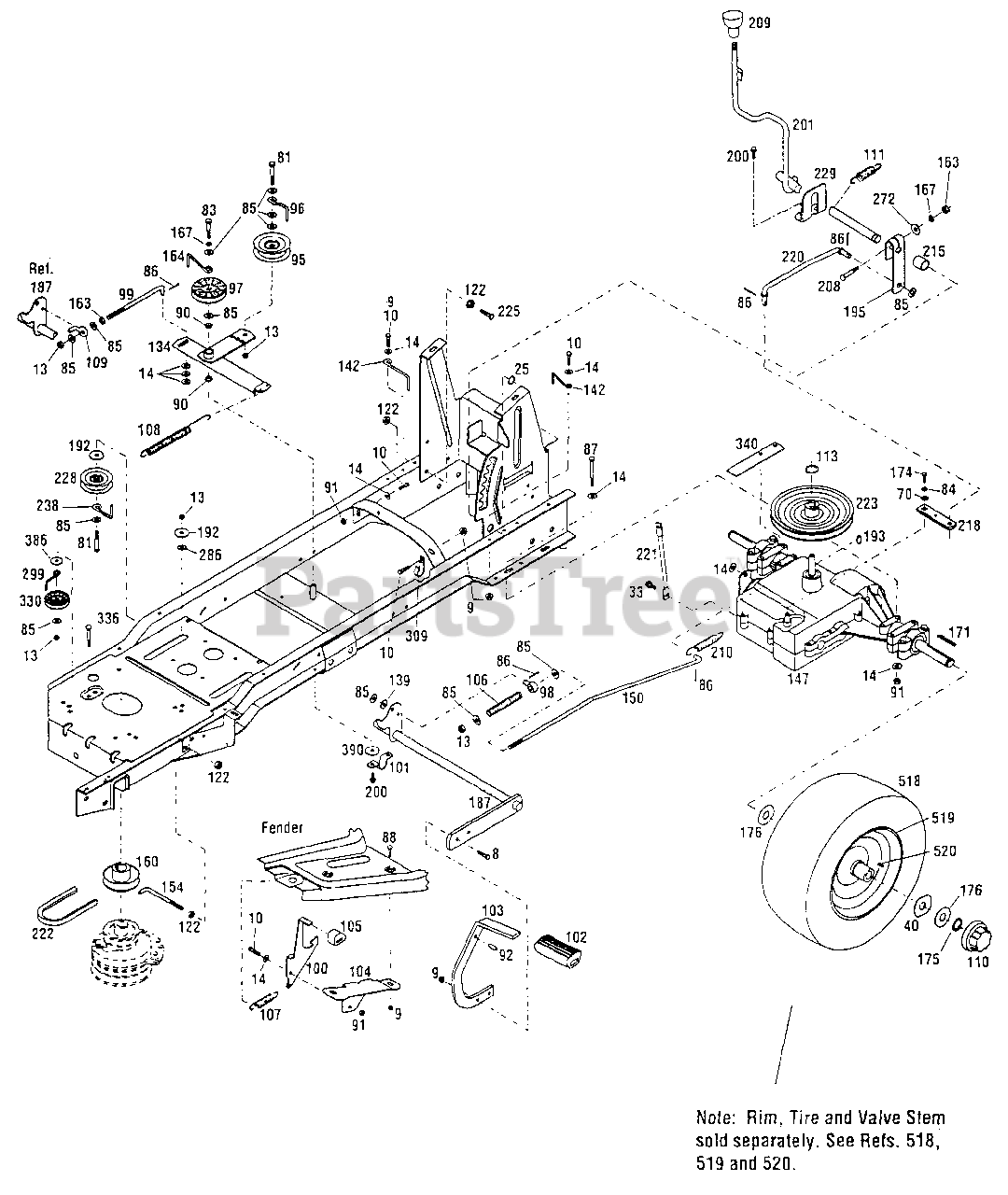

Peerless 930 5-Speed Transmission Assembly Parts Diagram

  • Title

8

Troy-Bilt 1100045

Hex Head Capscrew, 5/16-18 x 1
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

Hex Head Capscrew, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

Top Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

14

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

25

Troy-Bilt 1113527

Retaining Ring, 3/4
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1766984

Flange Lock screw, 5/16-18 x 3/4

$3.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1766241

Special Washer, 3/4 x 2-1/2

$

$

Not available

70

Troy-Bilt 1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

81

Troy-Bilt 1100048

Hex Capscrew, 3/8-16 x 2
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

83

Troy-Bilt 1100086

Hex Capscrew, 3/8-16 x 1-3/4
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 1100241

Lock Washer, 1/4 SAE
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

86

Troy-Bilt 1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

87

Troy-Bilt 1111609

Hex Screw, 5/16-18 x 2-3/4
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

88

Troy-Bilt 1186097

Carriage Bolt, 5/16-18 x 5/8
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

Troy-Bilt 1715538

Nyliner Bushing

$

$

Not available

91

Troy-Bilt 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

92

MTD 1770205

Drive Pin, 5/16 x 1

$

$

Not available

95

Troy-Bilt 1756151

Idler Pulley

$48.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 1760096

Belt Guide

$

$

Not available

97

Troy-Bilt 1760097

Idler Pulley

$

$

Not available

98

MTD 1751848

Swivel

$

$

Not available

99

MTD 1772460

Clutch Rod

$

$

Not available

100

MTD 1771514

Brake Lock Latch

$

$

Not available

101

MTD 1765156

Clip, 3/4

$

$

Not available

102

MTD 1765167

Brake Pedal Pad

$

$

Not available

103

MTD 1772741

Brake Pedal

$

$

Not available

104

MTD 1765257

Brake Lock Bracket

$

$

Not available

105

MTD 1765297

Parking Brake Pedal Pad

$

$

Not available

106

MTD 1765305

Compression Spring

$

$

Not available

107

MTD 1985140

Extension Spring

$

$

Not available

108

Troy-Bilt 1765402

Extension Spring

$33.99

$

Usually ships in 3-6 days

0

109

MTD 1765461

Pivot Rod

$

$

Not available

110

MTD 1766215

Hub Cap

$

$

Not available

111

MTD 1773176

Spring

$

$

Not available

113

Troy-Bilt 1118808

Retaining Ring, 5/8

$

$

Not available

122

Troy-Bilt 1186393

Flange Nut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

134

MTD 1765064

Idler Arm Assembly

$

$

Not available

139

Troy-Bilt 1890945

Flat Washer, 3/8
(Superseded to 936-0140)

$

$

Not available

142

MTD 1767808

Belt Guide

$

$

Not available

147

Transaxle, Peerless MST-205 5-Speed

Note: (See "Peerless MST 205 Transaxle Assembly" ill. and parts list); Purchase transaxle parts from your Tecumseh/Peerless dealer. Refer to transaxle for type and code.

$

$

Not available

150

MTD 1767895

Brake Rod

$

$

Not available

154

MTD 1766025

Clutch Retainer

$

$

Not available

160

MTD 1766200

Engine Sheave

$

$

Not available

163

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

164

MTD 1767900

Belt Guide

$

$

Not available

167

Troy-Bilt 1100243

Lock Washer, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

171

Troy-Bilt 1104335

Square Key, 3/16
(Superseded to 714-0139)

$9.49

$

Usually ships in 3-6 days

0

174

Troy-Bilt 1111683

Hex Screw, 1/4-28 x 1/2
(Superseded to 710-0230)

$

$

Not available

175

Troy-Bilt 1185388

Retaining E-Ring, 5/8
(Superseded to 916-0231)

$

$

Not available

176

MTD 1747998

Flat Washer, 3/4 x 1-7/8

$

$

Not available

187

MTD 1772728

Brake Pedal Assembly

$

$

Not available

192

Troy-Bilt 1891733

Flat Washer
(Superseded to 936-0206)

$4.49

$

In Stock, only 3 left!

0

193

Troy-Bilt 1104436

Woodruff Key, 3/16 x 3/4
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

195

MTD 1770294

Shift Shaft Arm

$

$

Not available

200

Troy-Bilt 1724491

Flange Lock screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

201

Troy-Bilt 1772830

Gear Shift Arm

$

$

Currently unavailable

208

MTD 1770298

Carriage Bolt, 3/8-16 x 2-1/4

$

$

Not available

209

MTD 1766115

Knob

$

$

Not available

210

MTD 1767884

Extension Spring

$

$

Not available

215

MTD 1766345

Spacer

$

$

Not available

218

MTD 1766186

Transmission Arm

$

$

Not available

220

MTD 1770602

Adjusting Rod

$

$

Not available

221

MTD 1767894

Transmission Support

$

$

Not available

222

Troy-Bilt 1765300

V-Belt

$84.99

$

Usually ships in 3-6 days

0

223

MTD 1770629

Transmission Sheave

$

$

Not available

225

Troy-Bilt 1100047

Screw, 3/8-16 x 1-1/4
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

228

Troy-Bilt 1713803

Idler Pulley
(Superseded to 956-3054)

$52.99

$

In Stock, only 2 left!

0

229

MTD 1772829

Shaft Guide

$

$

Not available

238

MTD 1767892

Belt Guide

$

$

Not available

272

Troy-Bilt 1701055

Special Washer, 3/8

$6.49

$

Usually ships in 3-6 days

0

286

Troy-Bilt 1768818

Flat Washer
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

299

MTD 1729780

Belt Guide

$

$

Not available

309

MTD 1747738

J-Clamp

$

$

Not available

330

MTD 1756164

Idler Sheave

$

$

Not available

336

Troy-Bilt 1186132

Carriage Bolt, 3/8-16 x 1-3/4
(Superseded to 710-0560)

$6.99

$

In Stock, Qty 12

0

340

MTD 1767899

Stop

$

$

Not available

386

Troy-Bilt 1107385

Flat Washer, 1/2
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

390

Troy-Bilt 1705108

Flat Washer, 3/8
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

518

Troy-Bilt 1772455

Tire, 20 x 8.00-8
(Superseded to 734-1730-0901)

$99.99

$

In Stock, only 1 left!

0

519

MTD 1772454

Rim

$

$

Not available

520

Troy-Bilt 1718086

Valve Stem
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
