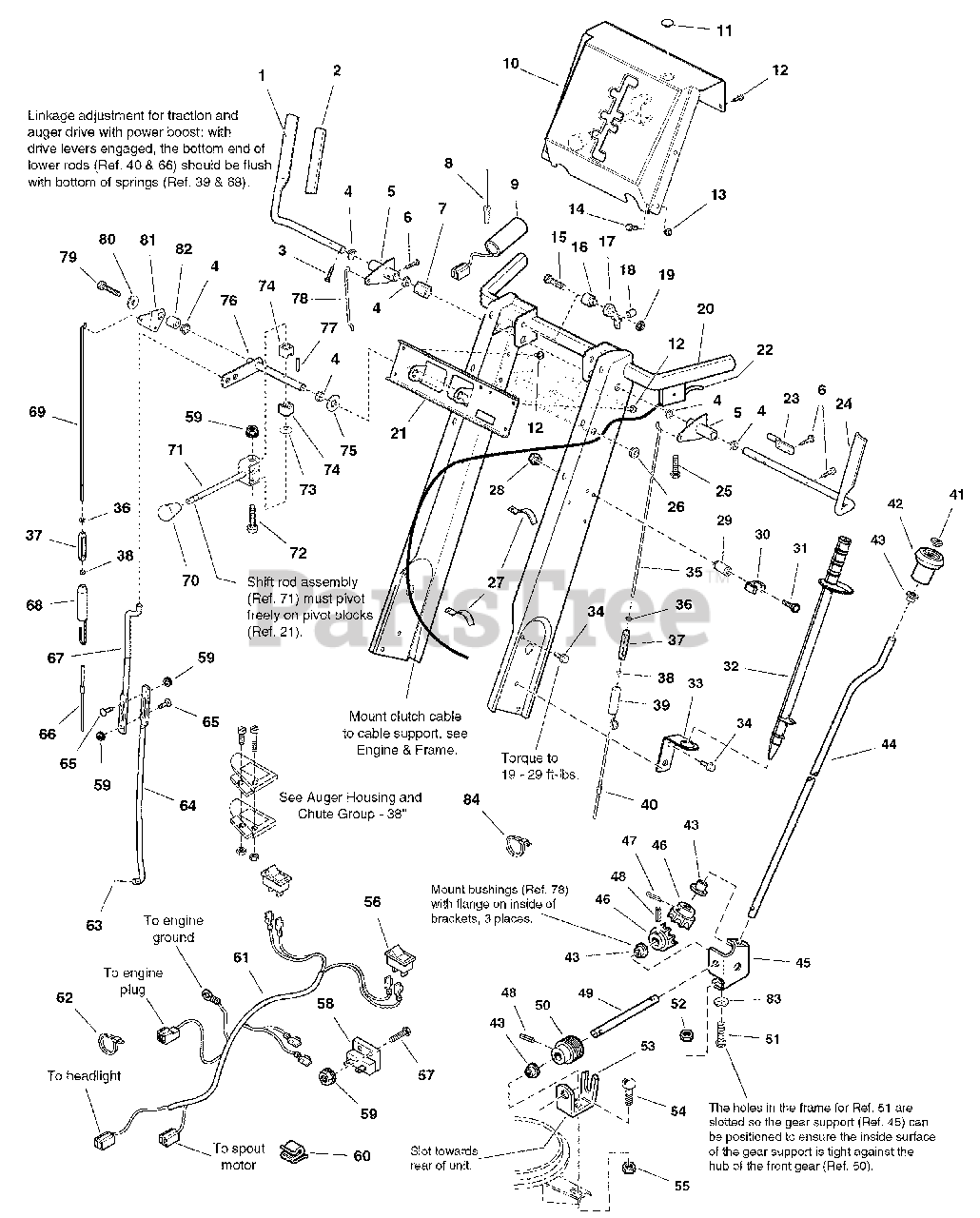

1390 E (1694593) - Simplicity 38" Snow Thrower, 13hp Handles and Controls Group - 1060, 1170, 1280 & 1390 Models Parts Diagram

38" Snow Thrower, 13hp

Handles and Controls Group - 1060, 1170, 1280 & 1390 Models Parts Diagram

  • Title

1

Simplicity 1727128SM

HANDLE, Clutch R.H.

$40.99

$

Usually ships in 2-12 days

0

2

Simplicity 1668608SM

GRIP, Handle Clutch, Black

$

$

Not available

3

Simplicity 1928732SM

CAPSCREW, Hex Washer Head Taptite #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 1668185SM

BUSHING, 1/2 ID x 3/4 OD x 1/4, Nylon

$5.49

$

In Stock, only 1 left!

0

5

Simplicity 1725205ASM

LEVER & TUBE ASSEMBLY, Clutch

$33.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960471SM

CAPSCREW, Hex Washer Head Taptite #12-24 x 1

$3.49

$

In Stock, only 1 left!

0

7

Simplicity 1705899SM

GUIDE, Control
(Superseded to 703213)

$8.49

$

In Stock, only 2 left!

0

8

Simplicity 1726422SM

RIVET, Pop (1280 & 1390 Models Only)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 1726317SM

GRIP, Black Soft 1" (9560, 1060 & 1170 Models Only)

$8.49

$

In Stock, only 1 left!

0

9

Simplicity 1723965SM

HAND GRIP, Heated 1" (1280 & 1390 Models Only)

$86.99

$

Usually ships in 2-12 days

0

10

Simplicity 1667800CSM

DASHBOARD

$52.99

$

Usually ships in 2-12 days

0

11

Simplicity 1724489SM

PLUG, Button (1390 Models Only)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1925592SM

CAPSCREW, Hex Washer Head Taptite 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

13

Simplicity 1930641SM

NUT, Hex Flange Whiz Lock 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1935450SM

CAPSCREW, Hex Washer Head, 1/4-20 x 3/4 G5

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1933689SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1678579SM

SPACER, 21/64 ID x 13/16 OD x 15/16
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

17

Simplicity 1705898SM

LATCH, Control
(Superseded to 703214)

$9.49

$

Usually ships in 2-12 days

0

18

Simplicity 1701342SM

SPRING, Compression
(Superseded to 1750475YP)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1960686SM

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1726672CSM

HANDLE ASSEMBLY, Channel
(Superseded to 1687739YP)

$234.99

$

Usually ships in 2-12 days

0

21

Simplicity 1723935ASM

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

22

Simplicity 1718791SM

CABLE & HANDLE ASSEMBLY, Clutch L.H.

$70.99

$

In Stock, only 3 left!

0

23

Simplicity 1677453SM

ROD, Control 2" Flat

$8.99

$

Usually ships in 2-12 days

0

24

Simplicity 1727127SM

HANDLE, Clutch L.H.

$45.99

$

Usually ships in 2-12 days

0

25

Simplicity 1725702SM

SCREW, Pan Head Torx #10 x 1/2 Thick Cut

$5.49

$

Usually ships in 2-12 days

0

26

Simplicity 1664022SM

GROMMET, 1/2

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1933896SM

NUT, Hex Lock 10-24 with Nylon Insert NC3B
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1678392SM

SPACER, 17/64 ID x 3/8 OD x 21/64
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

30

Simplicity 1726728SM

CLIP, Clean Out Tool
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

31

Simplicity 1960589SM

SCREW, Phillips #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1733209SM

TOOL, Clean Out
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

33

Simplicity 1726727ASM

BRACKET, Clean Out Tool

$7.99

$

Usually ships in 2-12 days

0

34

Simplicity 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

35

Simplicity 1668121SM

ROD, Clutch, 17-5/16

$

$

Not available

36

Simplicity 2828704SM

NUT, Hex Machine Screw 10-24 NC-2B LH YEL

$5.99

$

Usually ships in 2-12 days

0

37

Simplicity 2108775SM

TURNBUCKLE, 2-1/4 Long #10-24NC (L.H. & R.H.)

$

$

Not available

38

Simplicity 1916621SM

NUT, Hex Machine Screw 10-24 NC-2B

$3.49

$

In Stock, Qty 11

0

39

Simplicity 1707452SM

SPRING, Extension 3-11/32 Long

$14.99

$

In Stock, only 4 left!

0

40

Simplicity 1668526SM

ROD, Clutch, 6-5/16 Long

$

$

Not available

41

Simplicity 1960093SM

NUT, Push Pal (Used on all models Except 1390 Models)
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

42

Simplicity 1714084SM

KNOB, Spinner, Soft (9560, 1060, 1170 & 1280 Models Only)

$12.99

$

In Stock, only 1 left!

0

43

Simplicity 1667588SM

BUSHING, 3/8 ID x 7/16 OD x 13/64, Nylon (9560, 1060, 1170 & 1280 Models Only)

$5.99

$

In Stock, Qty 20+

0

44

Simplicity 1715658SM

ROD, Chute Control, 27" Long (9560, 1060, 1170 & 1280 Models Only)

$28.99

$

Usually ships in 2-12 days

0

45

Simplicity 1718793SM

SUPPORT, Gear (9560, 1060, 1170 & 1280 Models Only)

$19.99

$

Usually ships in 2-12 days

0

46

Simplicity 1718593SM

GEAR, Powered Metal (9560, 1060, 1170 & 1280 Models Only)

$14.99

$

In Stock, Qty 20+

0

47

Simplicity 1918452SM

PIN, Cotter 1/8 x 1 (9560, 1060, 1170 & 1280 Models Only)
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

48

Simplicity 2816168SM

PIN, Spring 1/8 x 3/4 (9560, 1060, 1170 & 1280 Models Only)

$4.49

$

In Stock, Qty 15

0

49

Simplicity 1725283SM

ROD, Chute Worm, 18 Long (9560, 1060, 1170 & 1280 Models Only)

$

$

Not available

50

Simplicity 1668186SM

WORM, Chute, L.H. (9560, 1060, 1170 & 1280 Models Only)

$41.99

$

In Stock, only 3 left!

0

51

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8 G5 (9560, 1060, 1170 & 1280 Models Only)

$3.99

$

In Stock, only 1 left!

0

52

Simplicity 1960294SM

NUT, Hex Flange Whiz Lock, 1/4-20 Small (9560, 1060, 1170 & 1280 Models Only)
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

53

Simplicity 1611911SM

SUPPORT, Worm (9560, 1060, 1170 & 1280 Models Only)

$9.99

$

Usually ships in 2-12 days

0

54

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5 (9560, 1060, 1170 & 1280 Models Only)
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

55

Simplicity 1960684SM

NUT, Hex KEPS Conical Washer, 5/16-18 (9560, 1060, 1170 & 1280 Models Only)
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

56

Simplicity 1723967SM

SWITCH, Hand Warmer (1280 & 1390 Models Only)

$38.99

$

Usually ships in 2-12 days

0

57

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 G5 (1280 & 1390 Models Only)

$4.49

$

In Stock, Qty 8

0

58

Simplicity 1724037SM

RESISTOR BLOCK, Male Terminal (1280 & 1390 Models Only)

$39.99

$

Usually ships in 2-12 days

0

59

Simplicity 1960685SM

NUT, Hex KEPS, 1/4-20 Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

60

Simplicity 2172434SM

CLIP, Wire (Spout Rotator Models Only)

$4.99

$

Usually ships in 2-12 days

0

61

Simplicity 1725439SM

HARNESS, Wiring (Handwarmer Models Only)

$29.99

$

Usually ships in 2-12 days

0

61

Simplicity 1725409SM

HARNESS, Wiring (Handwarmer & Spout Rotator Models Only)

$61.99

$

Usually ships in 2-12 days

0

62

Simplicity 1701011SM

TIE, Self Locking 7-5/16 (1280 & 1390 Models Only)

$5.49

$

In Stock, only 2 left!

0

63

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

64

Simplicity 1666255SM

ROD, Lower Shift 15-21/64 Long

$51.99

$

In Stock, only 4 left!

0

65

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4 G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

66

Simplicity 1702004SM

ROD, Lower Clutch

$16.99

$

Usually ships in 2-12 days

0

67

Simplicity 1726304SM

ROD, Upper Shift 11-3/8 Long

$

$

Not available

68

Simplicity 1701996SM

SPRING, Extension 4-3/4 Long

$12.99

$

In Stock, Qty 5

0

69

Simplicity 1702485SM

ROD, Upper Clutch

$

$

Not available

70

Simplicity 1713844SM

KNOB, Hole

$12.99

$

Usually ships in 2-12 days

0

71

Simplicity 1714120SM

ROD & CLEVIS ASSEMBLY, Shift
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

72

Simplicity 1960705SM

CAPSCREW, Hex Flange Whiz Lock 1/4-20 x 2-1/4

$2.99

$

Usually ships in 2-12 days

0

73

Simplicity 1668681SM

WASHER, Curved

$4.49

$

Usually ships in 2-12 days

0

74

Simplicity 1668524SM

BLOCK, Pivot, Powdered Metal
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

75

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

76

Simplicity 1703043SM

ROD & ARM ASSEMBLY, Pivot

$32.99

$

Usually ships in 2-12 days

0

77

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

78

Simplicity 1702663SM

ROD, Clutch 5-11/32 Long

$13.99

$

Usually ships in 2-12 days

0

79

Simplicity 1933689SM

CAPSCREW, Hex Flange Whiz Lock 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

80

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

81

Simplicity 1702662SM

LEVER, Clutch

$48.99

$

Usually ships in 2-12 days

0

82

Simplicity 1702552SM

SPACER, 21/64 ID x 3/4 OD x 53/64, Powdered Metal

$12.99

$

Usually ships in 2-12 days

0

83

Simplicity 1960518SM

NUT, Push for 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

84

Simplicity 1701011SM

TIE, Self Locking, 15" (Spout Rotator Models Only)

$5.49

$

In Stock, only 2 left!

0
