1390 E (1694444) - Simplicity 38" Snow Thrower, 13hp Auger and Impeller Group - 38" Parts Diagram

38" Snow Thrower, 13hp

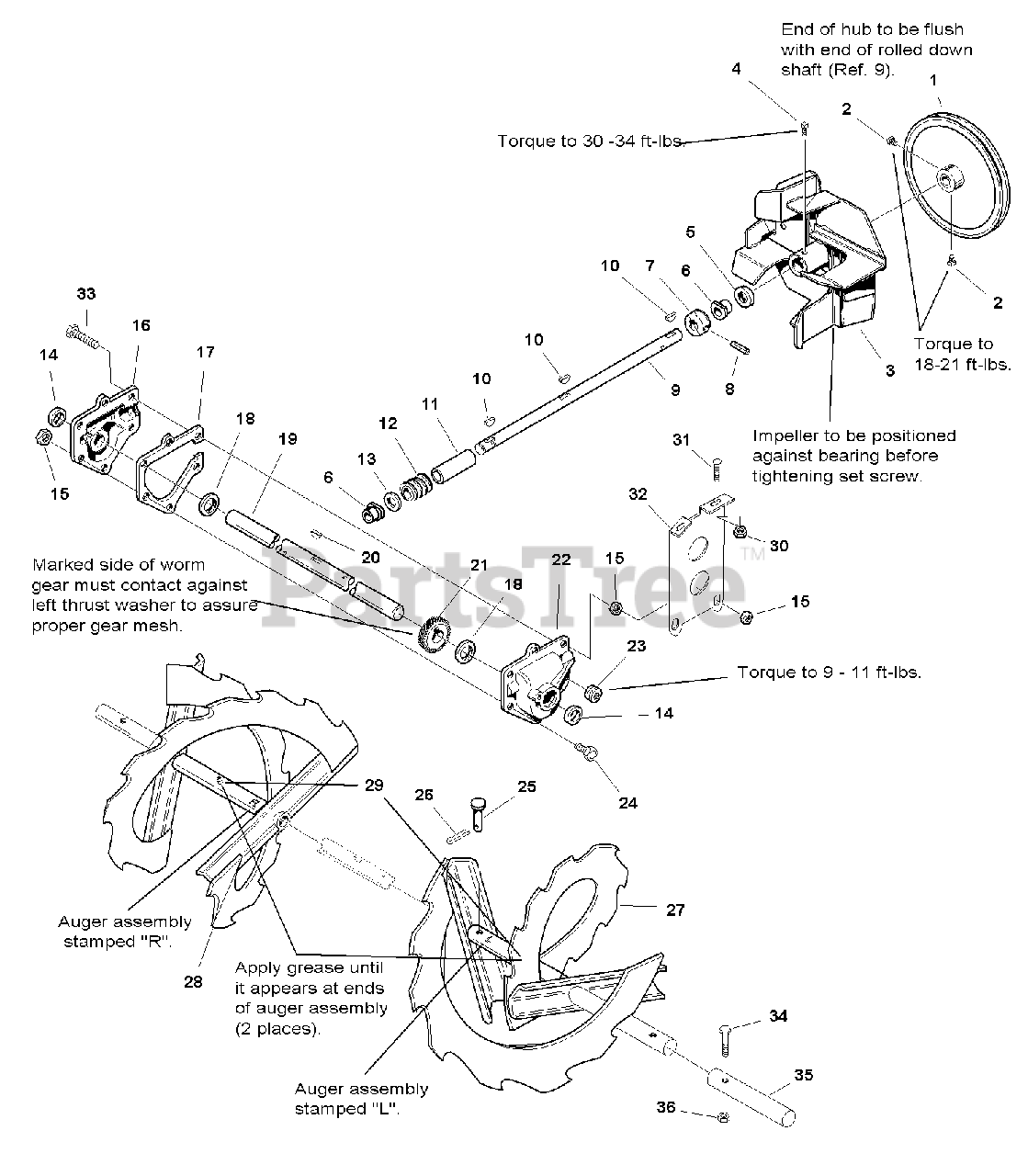

Auger and Impeller Group - 38" Parts Diagram

  • Title

1

Simplicity 1679293SM

PULLEY, Auger Input

$120.99

$

Usually ships in 2-12 days

0

2

Simplicity 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 5

0

3

Simplicity 1612187ASM

IMPELLER ASSEMBLY
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 3 left!

0

4

Simplicity 1960474SM

SETSCREW, Square Head, 3/8-16x 1/2

$5.99

$

In Stock, Qty 7

0

5

Simplicity 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

6

Simplicity 1612149SM

BUSHING, Flange

$51.99

$

In Stock, Qty 7

0

7

Simplicity 1612127SM

COLLAR, Thrust

$30.99

$

In Stock, only 2 left!

0

8

Simplicity 2836098SM

PIN, Drivelok, 3/16 x 1-1/2

$18.99

$

In Stock, Qty 6

0

9

Simplicity 1612129SM

SHAFT, Worm

$

$

Not available

10

Simplicity 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1612111SM

TUBE

$21.99

$

In Stock, only 4 left!

0

12

Simplicity 1612142SM

GEAR, Rolled Worm
(Superseded to 706853)

$

$

Not available

13

Simplicity 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 2118118SM

SEAL

$10.99

$

In Stock, Qty 20+

0

15

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1612137SM

CASE, Gear, RH
(Superseded to 1687728)

$567.99

$

Usually ships in 2-12 days

0

17

Simplicity 1612124SM

GASKET

$17.99

$

In Stock, Qty 11

0

18

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

19

Simplicity 1731916SM

SHAFT, Auger

$106.99

$

Usually ships in 2-12 days

0

20

Simplicity 2830246SM

KEY, Woodruff, 1/4 x 3/4
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

21

Simplicity 1612141SM

GEAR, Worm
(Superseded to 706853)

$

$

Not available

22

Simplicity 1612136SM

CASE, Gear, LH

$68.99

$

Usually ships in 2-12 days

0

23

Simplicity 1668971SM

PLUG, Pipe, Tapered, 1/8

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1960346SM

CAPSCREW, Hex Head, 1/4-20 x 7/8

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1723945ASM

AUGER ASSEMBLY, LH, 38"

$230.99

$

Usually ships in 2-12 days

0

28

Simplicity 1723944ASM

AUGER ASSEMBLY, RH, 38"

$285.99

$

Usually ships in 2-12 days

0

29

Simplicity 2821133SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

30

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

32

Simplicity 1723922ASM

SUPPORT, Gear Box

$34.99

$

Usually ships in 2-12 days

0

33

Simplicity 1923282SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/2
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1723931SM

SHAFT

$24.99

$

Usually ships in 2-12 days

0

36

Simplicity 1921962SM

NUT, 1/4-20
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0
