1390 E (1694237) - Simplicity 38" Snow Thrower, 13hp Handles and Controls Group Parts Diagram

38" Snow Thrower, 13hp

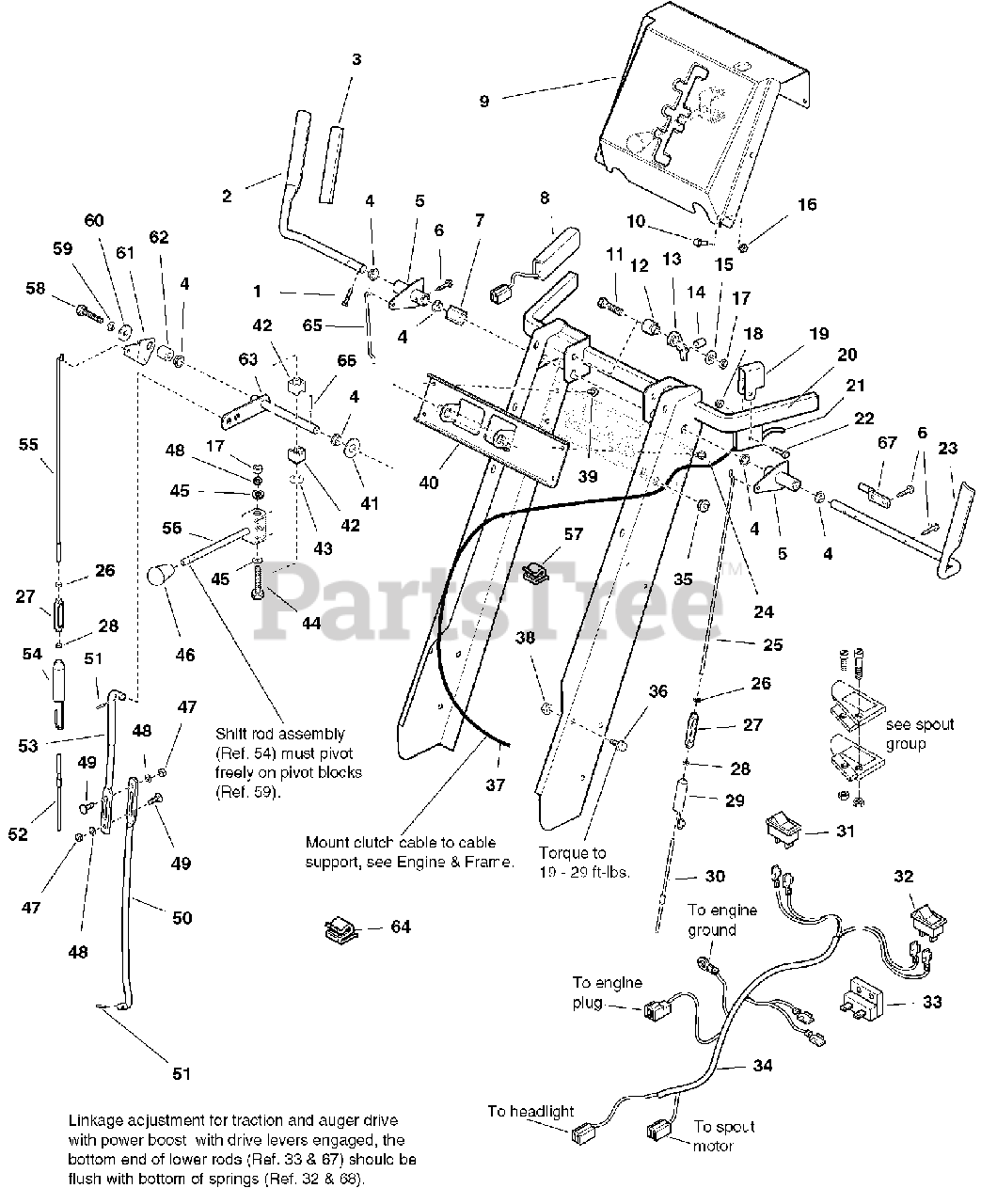

Handles and Controls Group Parts Diagram

  • Title

1

Simplicity 1928732SM

CAPSCREW, Hex Washer Head, #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 1612165SM

HANDLE, Clutch, RH

$

$

Not available

3

Simplicity 1668608SM

GRIP

$

$

Not available

4

Simplicity 1668185SM

BUSHING, Nylon

$5.49

$

In Stock, only 1 left!

0

5

Simplicity 1704255SM

LEVER & TUBE ASSEMBLY, Clutch

$16.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960471SM

CAPSCREW, Hex Washer Head, #12-24 x 1

$3.49

$

In Stock, only 1 left!

0

7

Simplicity 1705899SM

GUIDE, Control
(Superseded to 703213)

$8.49

$

In Stock, only 2 left!

0

8

Simplicity 1723965SM

GRIP, Heated

$86.99

$

Usually ships in 2-12 days

0

9

Simplicity 1667800CSM

DASHBOARD

$52.99

$

Usually ships in 2-12 days

0

10

Simplicity 1935450SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

12

Simplicity 1678579SM

SPACER
(Superseded to 703049)

$6.99

$

Usually ships in 2-12 days

0

13

Simplicity 1705898SM

LATCH, Control
(Superseded to 703214)

$9.49

$

Usually ships in 2-12 days

0

14

Simplicity 1701342SM

SPRING, Compression
(Superseded to 1750475YP)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

16

Simplicity 1920397SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1923362SM

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

18

Simplicity 1933896SM

NUT, Hex Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 1720747SM

CLAMP, Clutch Cable

$6.99

$

Usually ships in 2-12 days

0

20

Simplicity 1687000SM

HANDLE ASSEMBLY

$149.99

$

Usually ships in 2-12 days

0

21

Simplicity 1718804SM

TRIGGER ASSEMBLY, Easy Turn Clutch Cable

$37.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960393SM

SCREW, Pan Head, Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1612167SM

HANDLE, Clutch

$27.99

$

Usually ships in 2-12 days

0

24

Simplicity 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

25

Simplicity 1668121SM

ROD

$

$

Not available

26

Simplicity 2828704SM

NUT, LH, Machine Screw, Hex, #10-24

$5.99

$

Usually ships in 2-12 days

0

27

Simplicity 2108775SM

TURNBUCKLE

$

$

Not available

28

Simplicity 1916621SM

NUT, RH, Machine Screw, Hex, #10-24

$3.49

$

In Stock, Qty 11

0

29

Simplicity 1707452SM

SPRING

$14.99

$

In Stock, only 4 left!

0

30

Simplicity 1668526SM

ROD, Clutch

$

$

Not available

31

Simplicity 1724205SM

SWITCH, Rocker, Spout Rotator

$54.99

$

In Stock, only 1 left!

0

32

Simplicity 1723967SM

SWITCH, Hand Warmer, Off, Warm, Hot

$38.99

$

Usually ships in 2-12 days

0

33

Simplicity 1724037SM

RESISTOR BLOCK

$39.99

$

Usually ships in 2-12 days

0

34

Simplicity 1723968SM

HARNESS Assembly

$50.99

$

Usually ships in 2-12 days

0

35

Simplicity 1664022SM

GROMMET

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1930591SM

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

37

Simplicity 1718791SM

CABLE & HANDLE ASSEMBLY, Clutch (Includes Ref. 21)

$70.99

$

In Stock, only 3 left!

0

38

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Simplicity 1927429SM

CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

40

Simplicity 1723935ASM

BRACKET, Shift Control
(Superseded to 1723935BMYP)

$15.99

$

Usually ships in 2-12 days

0

41

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

42

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

43

Simplicity 1668681SM

WASHER, Curved, 1/2

$4.49

$

Usually ships in 2-12 days

0

44

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4-20 x 2 1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

45

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

46

Simplicity 1713844SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

47

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

49

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

50

Simplicity 1666255SM

ROD, Shift, Lower

$51.99

$

In Stock, only 4 left!

0

51

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

52

Simplicity 1702004SM

ROD, Clutch, Lower

$16.99

$

Usually ships in 2-12 days

0

53

Simplicity 1726304SM

ROD, Shift, Upper

$

$

Not available

54

Simplicity 1701996SM

SPRING

$12.99

$

In Stock, Qty 5

0

55

Simplicity 1702485SM

ROD, Clutch, Upper

$

$

Not available

56

Simplicity 1714120SM

SHIFT ASSEMBLY, Rod & Clevis
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

57

Simplicity 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

58

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

59

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

60

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

61

Simplicity 1702662SM

LEVER, Clutch

$48.99

$

Usually ships in 2-12 days

0

62

Simplicity 1702552SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

63

Simplicity 1703043SM

ROD & ARM ASSEMBLY, Pivot

$32.99

$

Usually ships in 2-12 days

0

64

Simplicity 2172434SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

65

Simplicity 1702663SM

ROD, Clutch

$13.99

$

Usually ships in 2-12 days

0

66

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

67

Simplicity 1677453SM

ROD, Control

$8.99

$

Usually ships in 2-12 days

0
