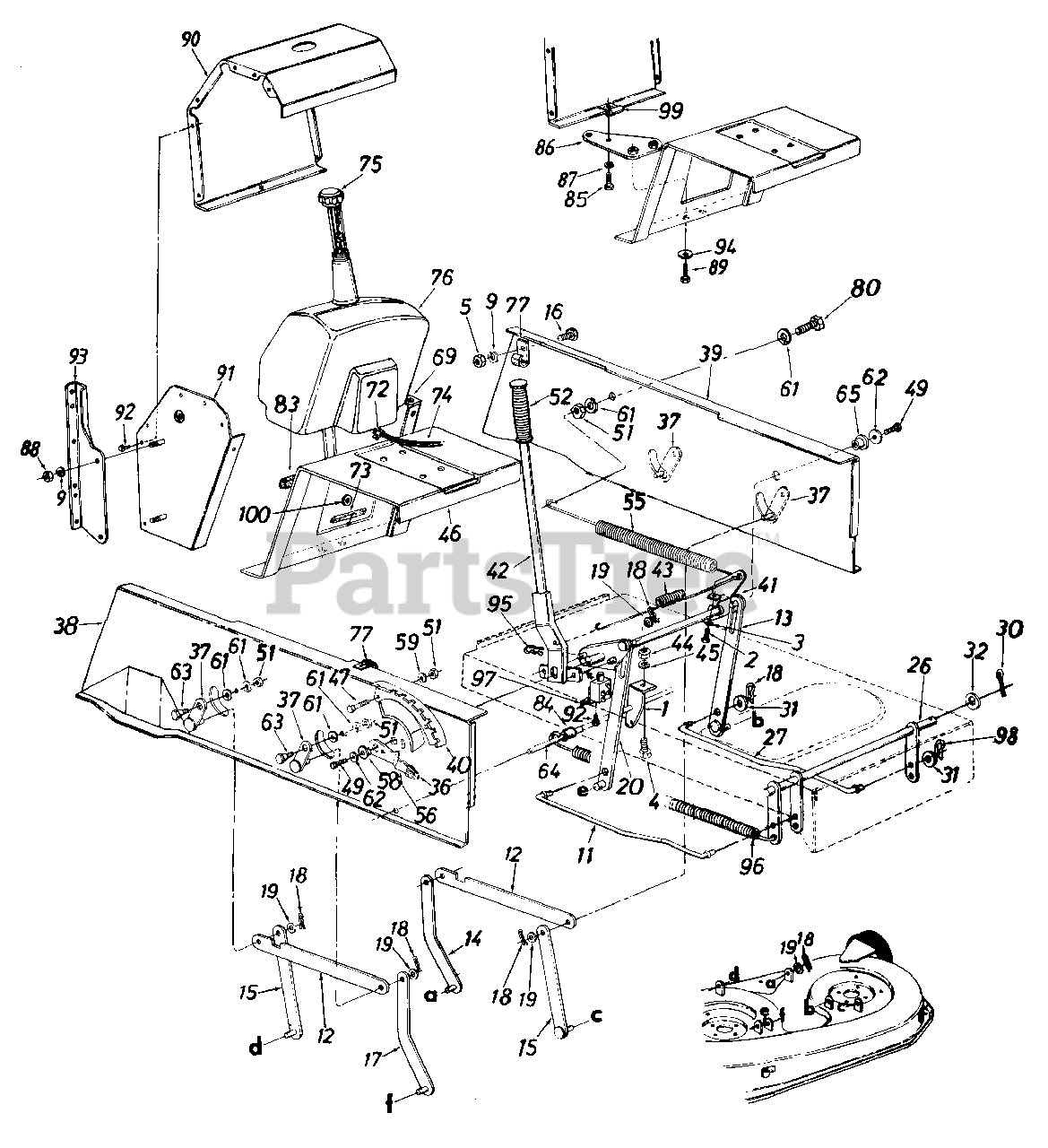

139-684-401 - MTD Lawn Tractor (1989) (Yard-Man) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 16181

Spring Hanger Bracket

$

$

Currently unavailable

2

MTD 710-0602

Hex Tap. Scr. 5/16-18 x 1

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, Qty 5

0

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

MTD 732-0410

Ext. Spring 13.25" Lg.

$

$

Not available

9

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 711-0790A

Stabilizer Rod

$

$

Not available

12

MTD 09735A

Connecting Rod

$

$

Not available

13

MTD 14802A

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

Variations

MTD 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 15925

Deck Hanger Link Ass'y.-Rear L.H.

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 14804

Deck Hanger Link Ass'y.

$

$

Not available

16

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

MTD 14800

Deck Hanger Link Ass'y.-
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

18

MTD 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

19

MTD 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

MTD 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

26

MTD 16234

Stabilizer Shaft Ass'y.

$

$

Not available

27

MTD 711-0790A

Stabilizer Rod

$

$

Not available

30

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0117

Fl-Wash. .385" I.D. x .620" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

32

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

36

MTD 08540

Knob-Height Adj.

$

$

Not available

37

MTD 09721

Pivot Link Ass'y.

$

$

Not available

38

MTD 14602

Side Panel Upper Frame-R.H.
(Superseded to 14602G-0637)

$

$

Not available

39

MTD 14603

Side Panel Upper Frame-L.H.

$

$

Not available

40

MTD 16462

Index Brkt.

Note: (Deck Lift)

$

$

Currently unavailable

41

MTD 17154A

Lift Shaft Ass'y.

Note: (Incl. Ref. 2 8 3)

$

$

Not available

42

MTD 17194

Lift Handle Brkt. Ass'y.
(Superseded to 753-0548)

$

$

Not available

43

MTD 732-0573

Ext. Spring

$

$

Not available

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

45

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

46

MTD 17226

Hitch Plate

$

$

Not available

47

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

55

MTD 732-0307A

Ext. Spring 11" Lg.
(Superseded to 932-0307A)

$

$

Not available

56

MTD 732-0412A

Deck Lift-Down Stop
(Superseded to 983-0003)

$

$

Not available

58

MTD 748-0176

Flange Brg. .630" I.D.

$9.99

$

In Stock, only 1 left!

0

59

UNKNOWN

$

$

Not available

MTD 736-0231

Fl-Wash..344" I.D.

$4.99

$

In Stock, Qty 11

0

61

MTD 736-0425

Bell-Wash. .325" I.D. x .930" x.045"

$4.99

$

In Stock, Qty 13

0

62

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 11

0

63

MTD 738-0140

Shld. Bolt .437" Dia. x .180"

$5.99

$

In Stock, Qty 15

0

64

MTD 738-0526

Running Board Rod

$

$

Not available

65

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

69

MTD 17083

Side Panel-L.H.

Variations

MTD 17083-0637

No Longer Available PANEL-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

72

MTD 726-0205

Hose Clamp-.406" Dia.

$3.99

$

In Stock, Qty 18

0

73

MTD 731-0511

Trim Strip-5" Lg.

$3.99

$

Usually ships in 3-6 days

0

74

MTD 751-0535

Gas Line-68" Lg.

$

$

Currently unavailable

75

MTD 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 11

0

76

MTD 751-0530

Gas Tank

$

$

Not available

77

MTD 726-0175

Hose Clamp

$

$

Not available

80

MTD 710-0959

Hex Bolt 5/16-18 x 1.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

83

MTD 722-0157

Foam Strip 3/8" x 1-1/8" x 1-1/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

84

MTD 711-0425

Spacer .523" I.D. x .640" O.D. x 1.95" Lg.

$

$

Currently unavailable

85

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. Gr. 5

$3.99

$

In Stock, only 4 left!

0

86

MTD 17166

Hitch Bar

$

$

Not available

87

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

88

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-0623

Self-Tap Scr. 3/4" Lg.

$4.49

$

In Stock, only 2 left!

0

90

MTD 16238

Gas Tank Housing

$

$

Not available

91

MTD 17082

Side Panel-R.H.

$

$

Not available

92

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

93

MTD 17078

Mounting Bracket-R.H.

$

$

Not available

MTD 17077

Mounting Bracket-L.H.

Note: (Not Shown)

$

$

Currently unavailable

94

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

95

MTD 714-0145

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

96

MTD 732-0530

Ext. Spring 13.25" Lg.

$

$

Not available

97

MTD 725-0803B

Safety Switch

$33.99

$

In Stock, only 1 left!

0

98

MTD 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

99

MTD 726-0211

Speed Nut

$4.49

$

In Stock, only 1 left!

0

100

MTD 735-0112

Grommet

$

$

Not available
