139-6653 - Toro 52" Recycler Kit for Z Master G3 and GrandStand Mower 52in Recycler Assembly No. 139-6653 Parts Diagram

52" Recycler Kit for Z Master G3 and GrandStand Mower

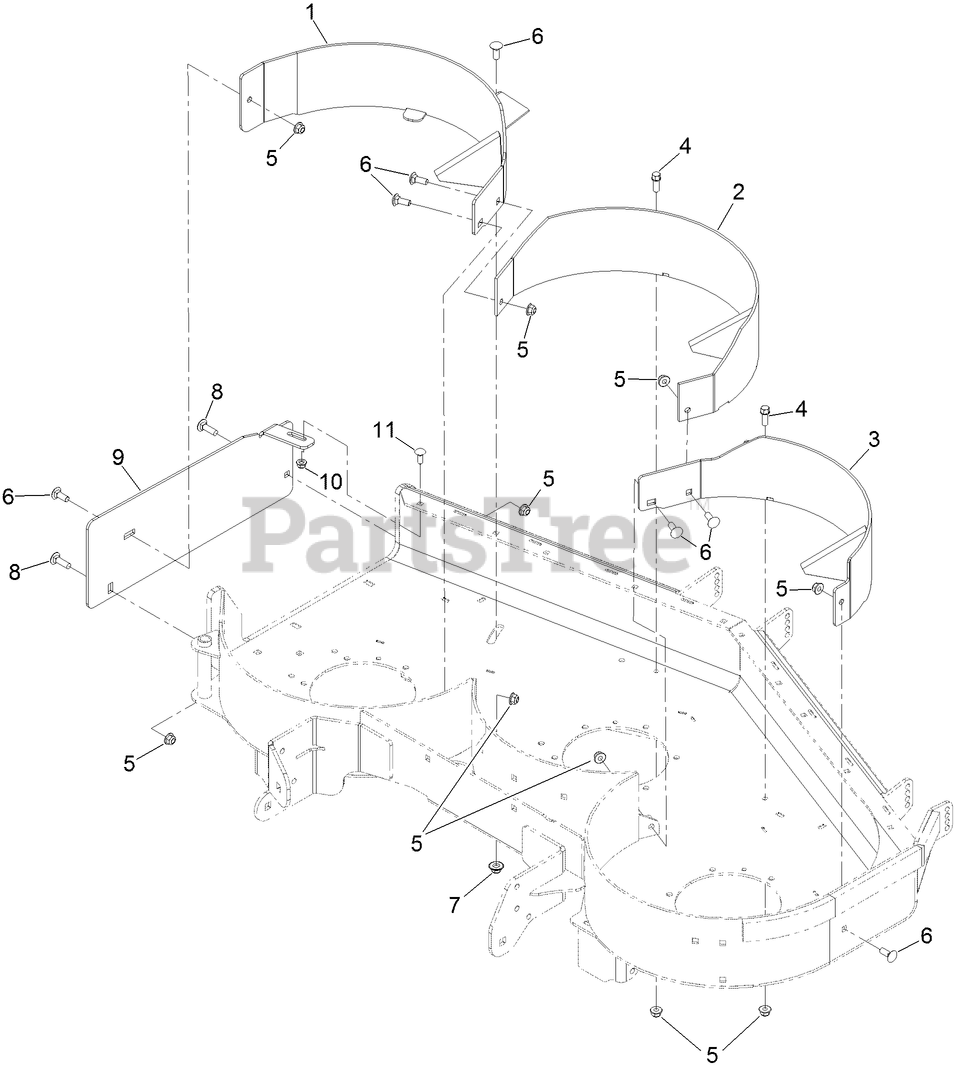

52in Recycler Assembly No. 139-6653 Parts Diagram

  • Title
1

Toro 139-6654-01

BAFFLE ASM-RH, 52

$271.99

$

Usually ships in 3-6 days

0

2

Toro 115-7477-01

BAFFLE-CENTER

$271.99

$

Usually ships in 3-6 days

0

3

Toro 115-7476-01

BAFFLE-LH

$271.99

$

Usually ships in 3-6 days

0

4

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

7

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

9

Toro 115-7471-01

PLATE-COVER, DISCHARGE

$132.99

$

In Stock, only 4 left!

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0
