139-547-000 - MTD Lawn Tractor (1989) Parts Parts Diagram

Lawn Tractor

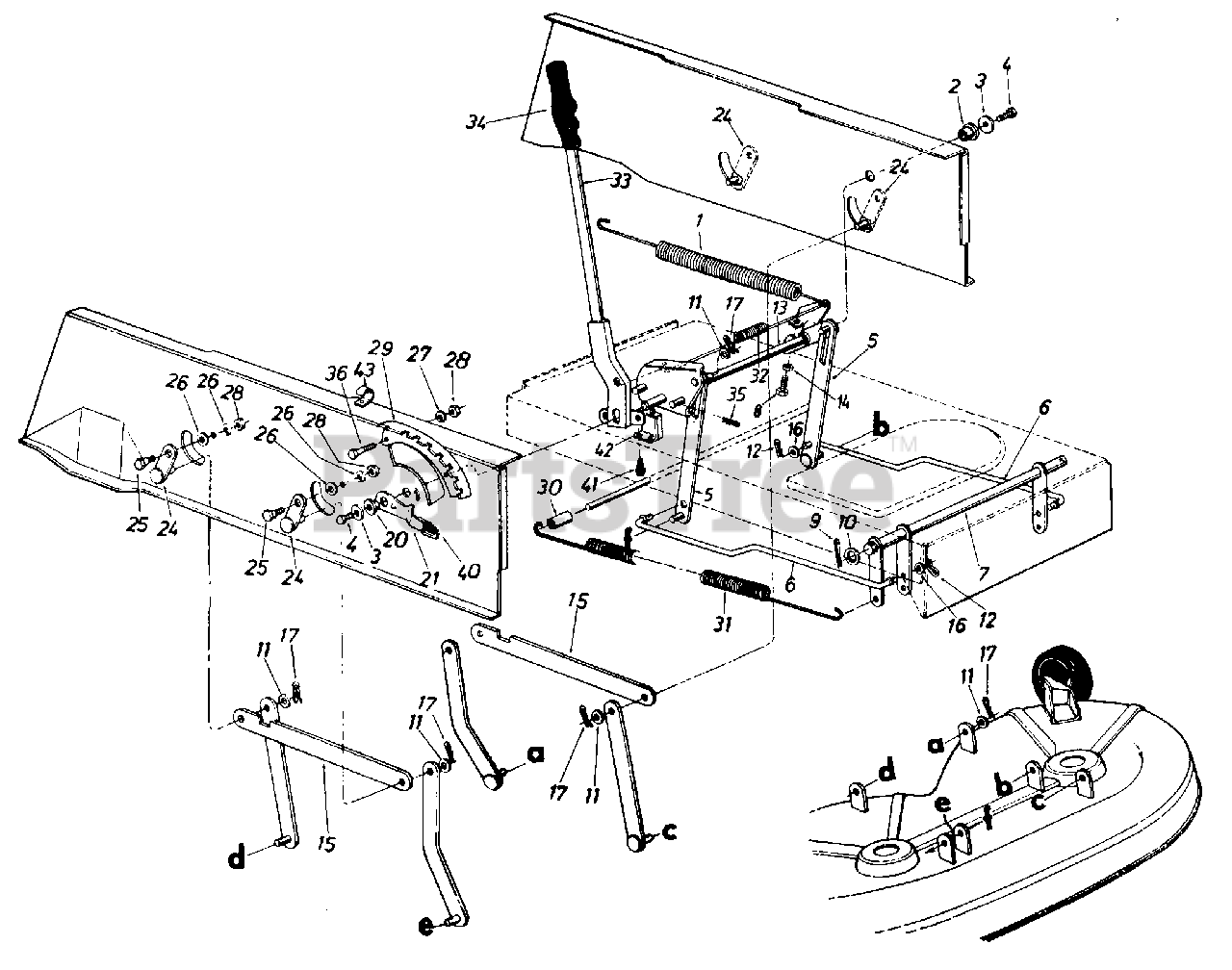

Parts Parts Diagram

  • Title

1

MTD 732-0307A

Extension Spring 11" Lg.
(Superseded to 932-0307A)

$

$

Not available

2

MTD 741-0313

Flange Bearing .634" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

3

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0604

Hex Wash. Hd. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 14802A

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

Variations

MTD 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 711-0738

Stabilizer Rod

$

$

Not available

MTD 711-0790A

Stabilizer Rod 36"

Note: (836) & 38" (805) Decks Only

$

$

Not available

7

MTD 16234A

Stabilizer Shaft Ass'y.

$

$

Not available

8

MTD 710-0602

Hex Tap Scr. 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0470

Cotter Pin 1/8" Dia. x 11/4"

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12"

$4.49

$

In Stock, Qty 12

0

11

MTD 736-0160

Fl-Wash. .531" I.D. x .940"

$4.49

$

In Stock, only 2 left!

0

12

MTD 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

13

MTD 17154A

Lift Shaft Ass'y.

$

$

Not available

14

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 3 left!

0

15

MTD 09735A

Connecting Rod

$

$

Not available

16

MTD 736-0117

Fl-Wash. .385" I.D. x .62"
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

17

MTD 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

20

MTD 748-0176

Flange Brg. .630" I.D.

$9.99

$

In Stock, only 1 left!

0

21

MTD 732-0412A

Deck Lift-Down Stop
(Superseded to 983-0003)

Note: (Incl. Ref. 40)

$

$

Not available

24

MTD 09721

Pivot Link Ass'y.

$

$

Not available

25

MTD 738-0140

Shld. Bolt .437" Dia. x .180" Lg. (5/16-18)

$5.99

$

In Stock, Qty 15

0

26

MTD 736-0425

Bell-Wash. .325" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 13

0

27

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 16462

Index BrKt.

$

$

Currently unavailable

30

MTD 711-0425

Spacer .523" I.D. x .640" O.D. x 1.95" Lg.

$

$

Currently unavailable

31

MTD 732-0530

Ext. Spring 13.25" Lg.

$

$

Not available

32

MTD 732-0573

Ext. Spring

$

$

Not available

33

MTD 16465A

Lift Handle Ass'y.
(Superseded to 753-0548)

$

$

Not available

34

MTD 720-0233

Grip
(Superseded to 920-0233)

Note: (Lift Handle)

$

$

Not available

35

MTD 714-0145

Intern. Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

36

MTD 710-0118

Hex Bolt 5/16-18 x .75"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

MTD 08540

Knob

$

$

Not available

41

MTD 710-0351

Hex AB-Tap Scr. #10 x .50"

$4.49

$

Usually ships in 3-6 days

0

42

MTD 725-0803B

Safety Switch

$33.99

$

In Stock, only 1 left!

0

43

MTD 726-0175

Clamp

$

$

Not available
