139-342-015 - Turf Trac Lawn Tractor (1989) (Universal Co-Op) Electrical Parts Diagram

Lawn Tractor

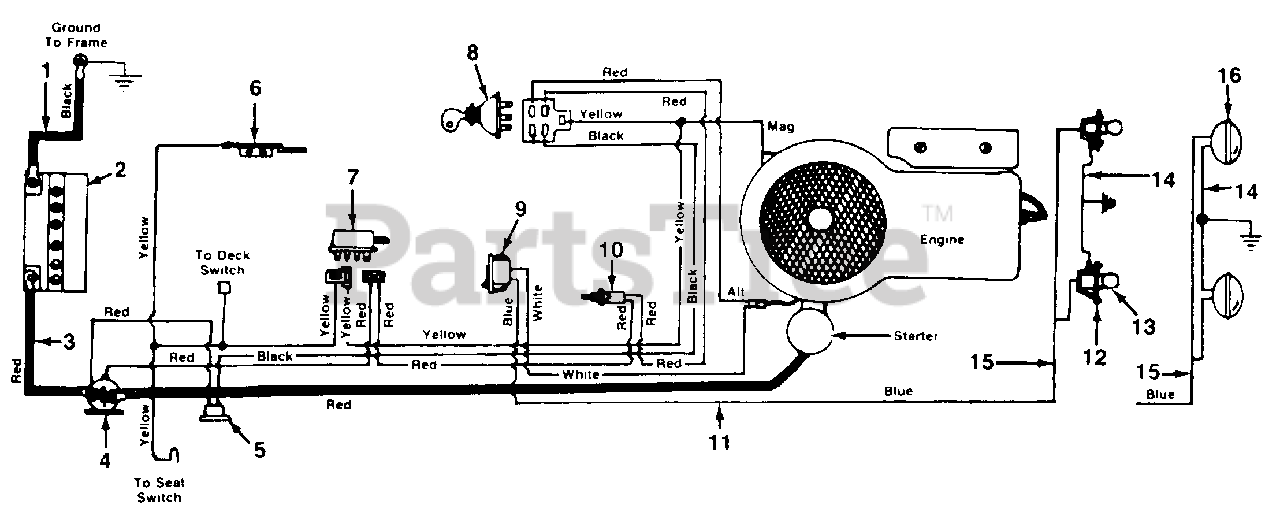

Electrical Parts Diagram

  • Title

1

MTD 725-0976A

Ground Wire

$

$

Not available

2

MTD 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

3

MTD 725-1351

Electric Wire

$

$

Not available

4

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

Usually ships in 3-6 days

0

5

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

6

MTD 732-0758

Spring Switch
(Superseded to 753-0580)

$

$

Not available

7

MTD 725-0803B

Safety Switch

$33.99

$

In Stock, only 1 left!

0

8

MTD 725-0267

Key Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

10

MTD 725-0577

Safety Switch (Black)

$

$

Not available

11

MTD 725-1336

Harness

Note: (B&S)

$

$

Not available

MTD 725-1337A

Harness

Note: (Tecumseh)

$

$

Not available

12

MTD 725-1058

Socket
(Superseded to 925-1058A)

Note: (Sq. Headlights)

$

$

Not available

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

Note: (Sq. Headlights)

$7.49

$

In Stock, only 1 left!

0

14

MTD 725-0916A

Ground Wire

$

$

Not available

15

MTD 725-1243

Headlight Harness

$

$

Currently unavailable

16

MTD 725-0222

Lamp
(Superseded to 925-0222)

Note: (Round Headlights)

$58.99

$

In Stock, only 4 left!

0

MTD 725-1303

Seat Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0
