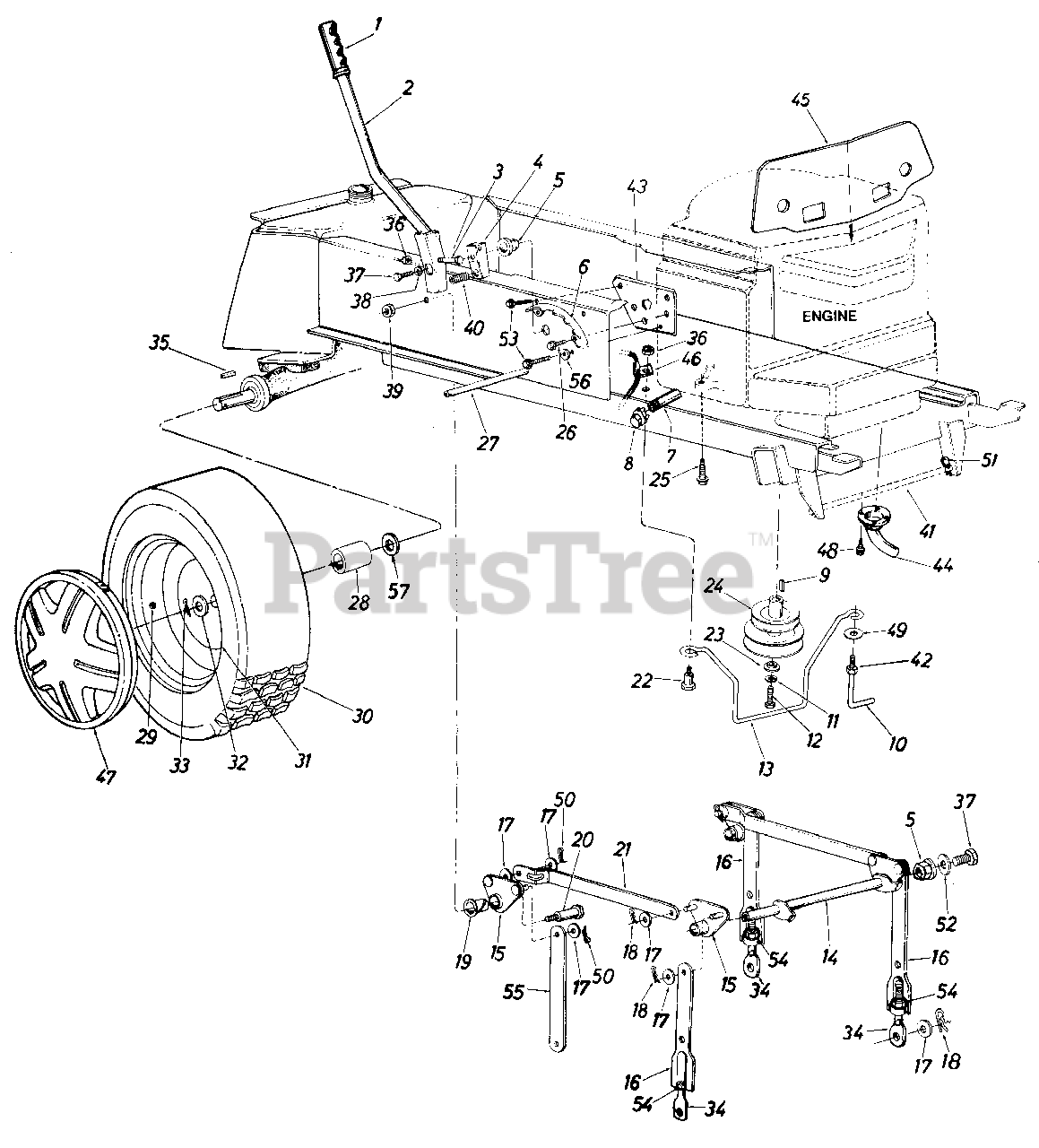

138-784-401 - MTD Lawn Tractor (1988) (Yard-Man) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

2

MTD 17282

Lift Handle Ass'y.

$

$

Not available

3

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 748-0274

Lift Shaft Drive
(Superseded to 748-0274A)

$

$

Not available

5

MTD 741-0225

Plastic Hex Brg. 518" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

MTD 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

MTD 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

$

$

Not available

8

MTD 737-0143

Pipe Cap 3/8-18 Npt.

$

$

Not available

9

MTD 714-0118

Sq. Key 114" x 114" x 1.50"

$6.99

$

In Stock, only 4 left!

0

10

MTD 747-0216

Belt Guard Lock Pin

$

$

Not available

11

MTD 736-0171

L-Wash. 7116" I.D.

$4.49

$

In Stock, only 4 left!

0

12

MTD 710-0757

Hex Scr. 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

13

MTD 747-0299

Belt Guard

$

$

Currently unavailable

14

MTD 13889

Lift Shaft Ass'y.

$

$

Not available

15

MTD 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

MTD 17303

Adj. Deck Lift Link
(Superseded to 17303-0637)

Variations

MTD 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$16.99

$

In Stock, only 2 left!

0

17

MTD 736-0192

Fl-Wash. 112" I.D. x 1.00" O.D. x .090"

$4.49

$

In Stock, Qty 18

0

18

MTD 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 2 left!

0

19

MTD 741-0295

Nyliner 518" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

20

MTD 738-0445

Shld. Bolt 518" Dia. x .961' Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

MTD 13790

Connecting Link
(Superseded to 13790-0637)

Variations

MTD 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 738-0296

Shld. Bolt .437" Dia. x .268" Lg. 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0322

Flat Wash. .44" I.D. x 1.25" O.D. x .171'

$9.49

$

In Stock, Qty 8

0

24

MTD 756-0328

Two-Step Engine Pulley 4.75" & 5.56"

$

$

Not available

25

MTD 710-0502

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

26

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-18 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-0435

Running Board Rod

$

$

Not available

28

MTD 750-0491

Spacer 1.0" I.D. x 1.25" O.D. x 2.9" Lg.

$

$

Currently unavailable

29

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

MTD 734-1004

Rear Wheel Ass'y. Comp.

$

$

Currently unavailable

MTD 734-0967

Tire Only

Variations

MTD 734-0967-0901

No Longer Available TIRE-TUBEL - Carlisle (0901)

$

$

Not available

MTD 734-0967-0902

No Longer Available - Dico (0902)

$

$

Not available

MTD 734-0967-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

31

MTD 734-1015

Rear Wheel Rim Only

Variations

MTD 734-1015-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1015-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1015-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1015-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

32

MTD 736-0345

Flat Washer
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

33

MTD 714-0142

Cotter Pin 3/16" Dia. x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

34

MTD 711-0817

Eye Bolt Adj. Link '/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

35

MTD 714-0120

Sq. Key 1/4 x 3.0"

$

$

Not available

36

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

MTD 710-0237

Hex Scr. 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

MTD 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

MTD 738-0392

Deck Connecting Rod

$

$

Not available

42

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

43

MTD 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

MTD 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 751-0460

Exhaust Pipe

$

$

Currently unavailable

45

MTD 17319

Heat Shield

$

$

Not available

46

MTD 726-0175

Mounting Clamp

$

$

Not available

47

MTD 734-1505

Hub Cap Rear

$

$

Not available

MTD 734-1025

Hub Cap (Chrome)

Note: (Rear)

$

$

Not available

48

MTD 710-0224

Hex Wash. Hd. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0242

Bell-Wash...39" I.D.

$4.49

$

In Stock, Qty 20+

0

50

MTD 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

MTD 714-0149

Int. Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

52

MTD 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125"

$4.99

$

In Stock, Qty 20+

0

53

MTD 710-0600

Hex Wash. Hd. AB-Tap Scr. 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

54

MTD 712-0206

Hex Nut 1/2-13 Thd .

$4.49

$

In Stock, Qty 20+

0

55

MTD 14399

Deck Link
(Superseded to 14399-0637)

Variations

MTD 14399-0637

Deck Link - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

56

MTD 736-0264

Fl-Wash....344" I.D.

$6.99

$

In Stock, only 1 left!

0

57

MTD 736-0259

Fl-Wash. 1.0" I.D.
(Superseded to 936-0259)

$

$

Not available
