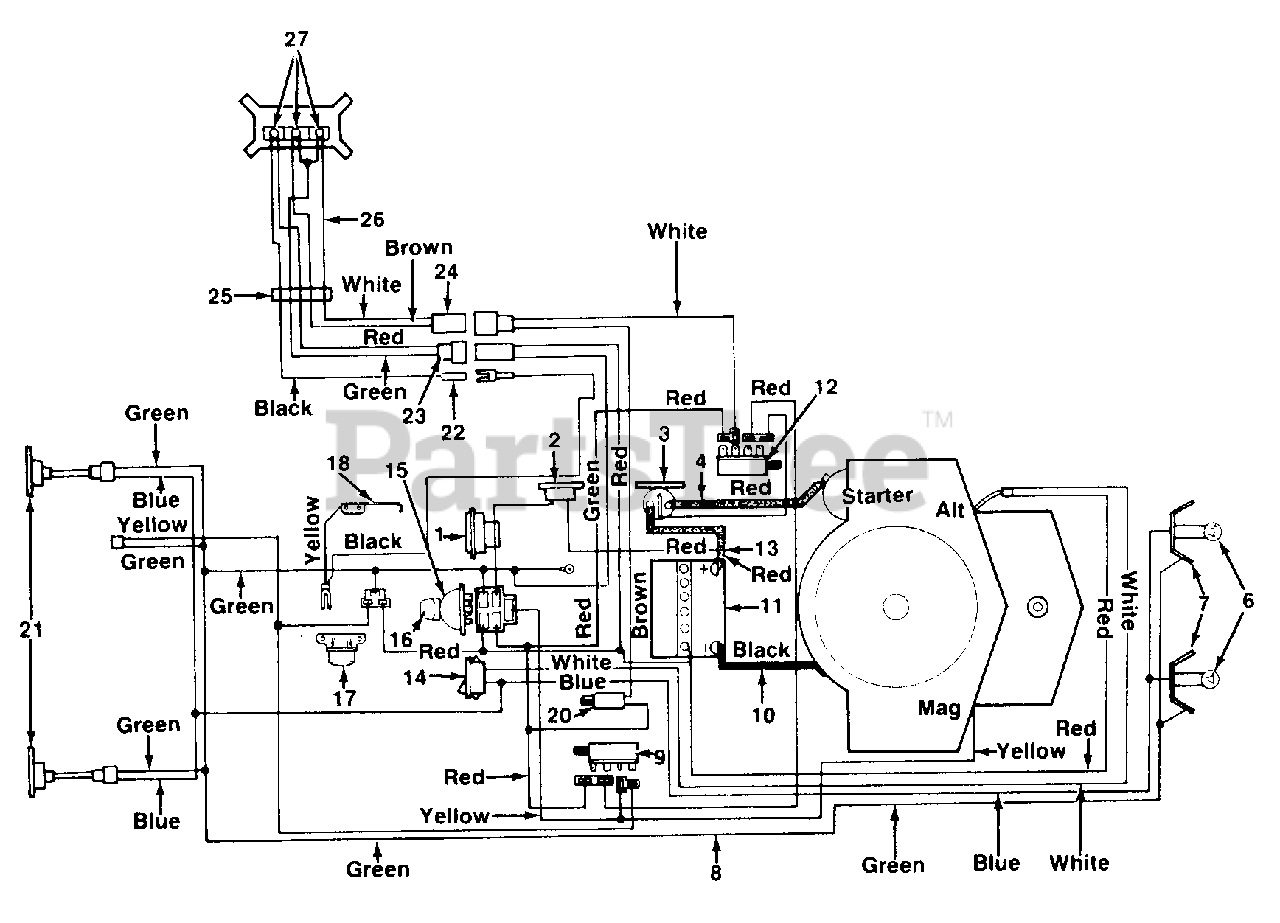

138-784-401 - MTD Lawn Tractor (1988) (Yard-Man) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

2

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

3

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

4

MTD 725-0561

Wire
(Superseded to 629-0705)

$

$

Not available

6

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

7

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

8

MTD 725-1366

Wire Harness

$

$

Currently unavailable

9

MTD 725-0465

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

10

MTD 725-0995

6 Ga. Black Wire
(Superseded to 629-0739)

$

$

Not available

11

MTD 725-0453

Battery 12V

$

$

Not available

12

MTD 725-0842

Safety Switch

$

$

Not available

13

$

$

Currently unavailable

14

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

15

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

16

MTD 725-1341

Ignition Key
(Superseded to 725-1341B)

$10.99

$

In Stock, only 1 left!

0

17

MTD 725-0894

Relay
(Superseded to 925-0894)

$

$

Not available

18

MTD 725-0759

Spring Lever
(Superseded to 753-0579)

$

$

Not available

20

MTD 725-0277

Safety Switch

$

$

Not available

21

MTD 725-1128

Taillight

$

$

Not available

22

MTD 729-0139

Connector

$

$

Not available

23

MTD 729-0166

Connector

$

$

Not available

24

MTD 729-0132

Connector

$

$

Not available

25

MTD 729-0204

Clamp

$

$

Currently unavailable

26

MTD 725-1364

Wire Harness

$

$

Not available

27

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0
