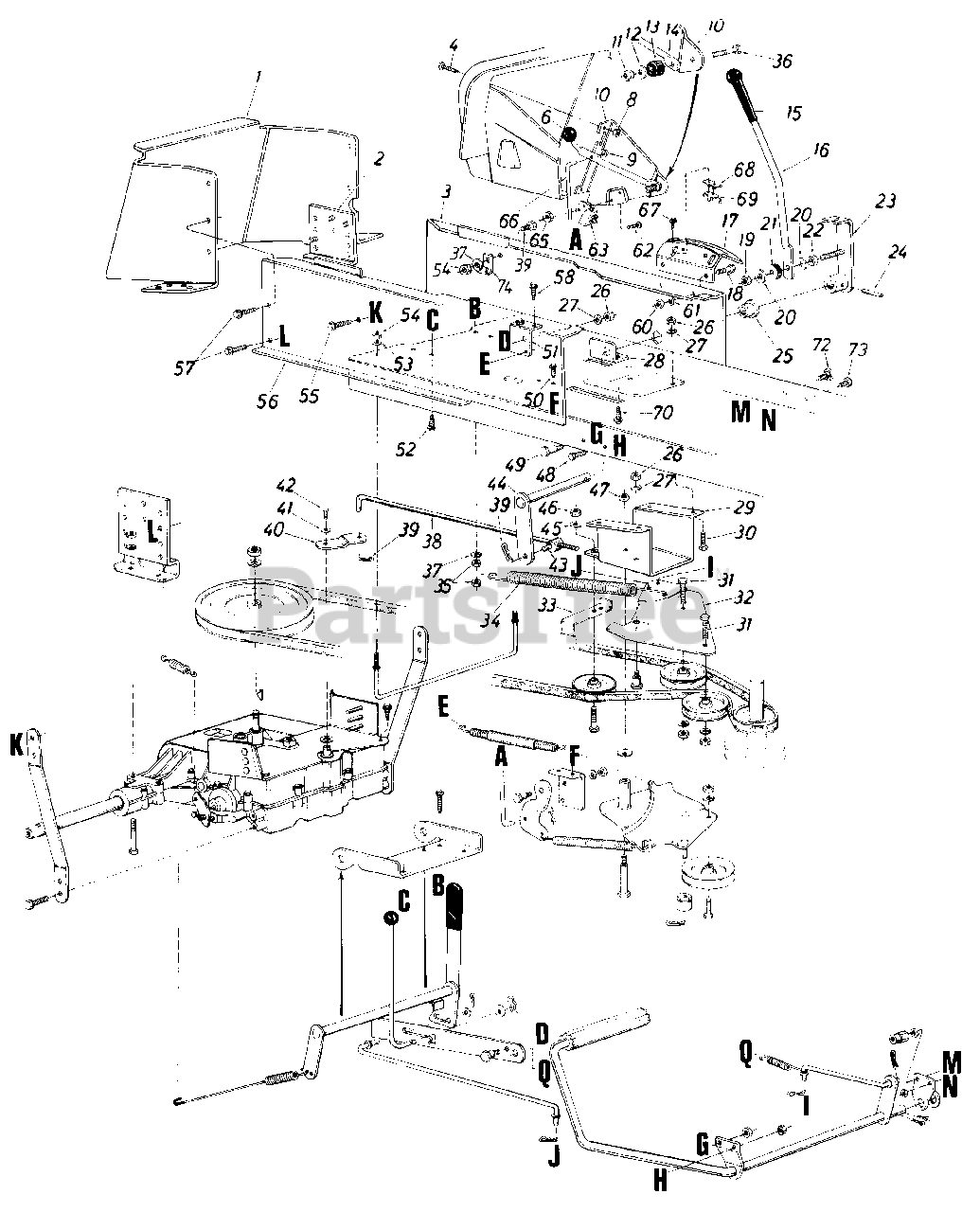

138-753-015 - Turf Trac Lawn Tractor (1988) (Universal Co-Op) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 13813

Hitch Plate

$

$

Not available

2

MTD 14067

Transaxle Support Bracket

$

$

Currently unavailable

3

MTD 16445

Side Panel Upper Frame L.H.

$

$

Currently unavailable

4

MTD 710-0286

Truss. Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

6

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

Note: (Blade Clutch)

$10.99

$

In Stock, Qty 10

0

MTD 720-0210

T Knob
(Superseded to 720-0210A)

Note: (Blade Clutch)

$15.99

$

In Stock, only 2 left!

0

8

MTD 712-0271

Hex Sems Nut 1/4-20 Thd*

$4.49

$

In Stock, Qty 20+

0

9

MTD 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

10

MTD 13950

Deck Clutch Control Brkt.

$

$

Not available

11

MTD 712-0107

Hex Cent L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

12

MTD 736-0173

Fl-Wash. .281" I.D. x .734" O.D. x .063 Thk.

$4.49

$

In Stock, Qty 20+

0

13

MTD 735-0126

Rubber Wash. .330" I.D. x .87" O.D. x .32 Thk.
(Superseded to 735-0126A)

$

$

Not available

14

MTD 747-0513

Blade Clutch Lever

$

$

Not available

15

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

16

MTD 747-0317

Shift Lever

$

$

Currently unavailable

17

MTD 17313

Shift Bracket

Variations

MTD 17313-0637

No Longer Available BRACKET-SH - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

20

MTD 736-0159

Fl-Wash. .344" I.D. x .875" O.D. x .063 Thk.

$4.49

$

In Stock, Qty 20+

0

21

MTD 735-0126

Rubber Wash. .330" I.D. x .87" O.D. x .32 Thk.
(Superseded to 735-0126A)

$

$

Not available

22

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 14195

Handle Mount Brkt. Ass'y.

Note: (Shift Lever)

$

$

Not available

24

MTD 715-0114

Spring F'in Spiral 1/4" Dia. x 1.5" Lg.

$9.49

$

In Stock, Qty 20+

0

25

MTD 741-0225

Plastic Hex Bearing .625" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

26

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 14035

Speed Control Shaft Brkt.

$

$

Currently unavailable

29

MTD 14063

Transaxle Clutch Support Brkt.

$

$

Not available

30

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

31

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

32

MTD 17311

Idler Bracket Ass'y.

$

$

Currently unavailable

33

MTD 13819

Belt Guard

Variations

MTD 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 732-0307

Extension Spring .995" O.D. x 11.0" Lg.
(Superseded to 932-0307A)

$

$

Not available

35

MTD 712-0291

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

36

MTD 710-0258

Hex Bolt 1/4-20 x .625" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

37

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

MTD 747-0341

Shift Link

$

$

Currently unavailable

39

MTD 714-0145

Hairpin Cotter 3/8"

$4.99

$

In Stock, Qty 20+

0

40

MTD 14192

Shifter Bracket

$

$

Currently unavailable

41

MTD 736-0270

Belleville Wash. .25" 1. ,) . x.375" O.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 710-0513

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 710-0513A)

Note: (Special)

$4.99

$

In Stock, Qty 7

0

43

MTD 711-0198

Pivot Bushing
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

44

MTD 14034

Speed Control Shaft Ass'y.

$

$

Not available

45

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .060 Thk.

$4.49

$

In Stock, Qty 20+

0

46

MTD 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

47

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

48

MTD 710-0201

Hex Bolt 3/8-16 x .62" Lg.*

$

$

Not available

49

MTD 738-0143

Shoulder Bolt .500" Dia. x .340" Lg. (3/8-16)

$4.49

$

In Stock, Qty 20+

0

50

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 13833

Parking Brake Cam Mtg. Brkt.

$

$

Not available

52

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

54

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

55

MTD 710-0773

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x .5" Lg.

$7.49

$

In Stock, only 3 left!

0

56

MTD 13848

Side Panel Upper Frame-R. H .

$

$

Currently unavailable

57

MTD 710-0600

Hex Thd. Rolling Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

58

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

60

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.*

$4.49

$

In Stock, only 2 left!

0

63

MTD 725-0465

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

65

MTD 712-0121

Hex Nut #10-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

66

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

67

MTD 710-0227

Hex Wash. Hd. Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

69

MTD 725-0758

Spring Switch
(Superseded to 753-0580)

$

$

Not available

70

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

72

MTD 738-0143

Shld. Bolt .498" Dia. x .34"

$4.49

$

In Stock, Qty 20+

0

73

MTD 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

74

MTD 726-0175

Clamp

$

$

Not available
