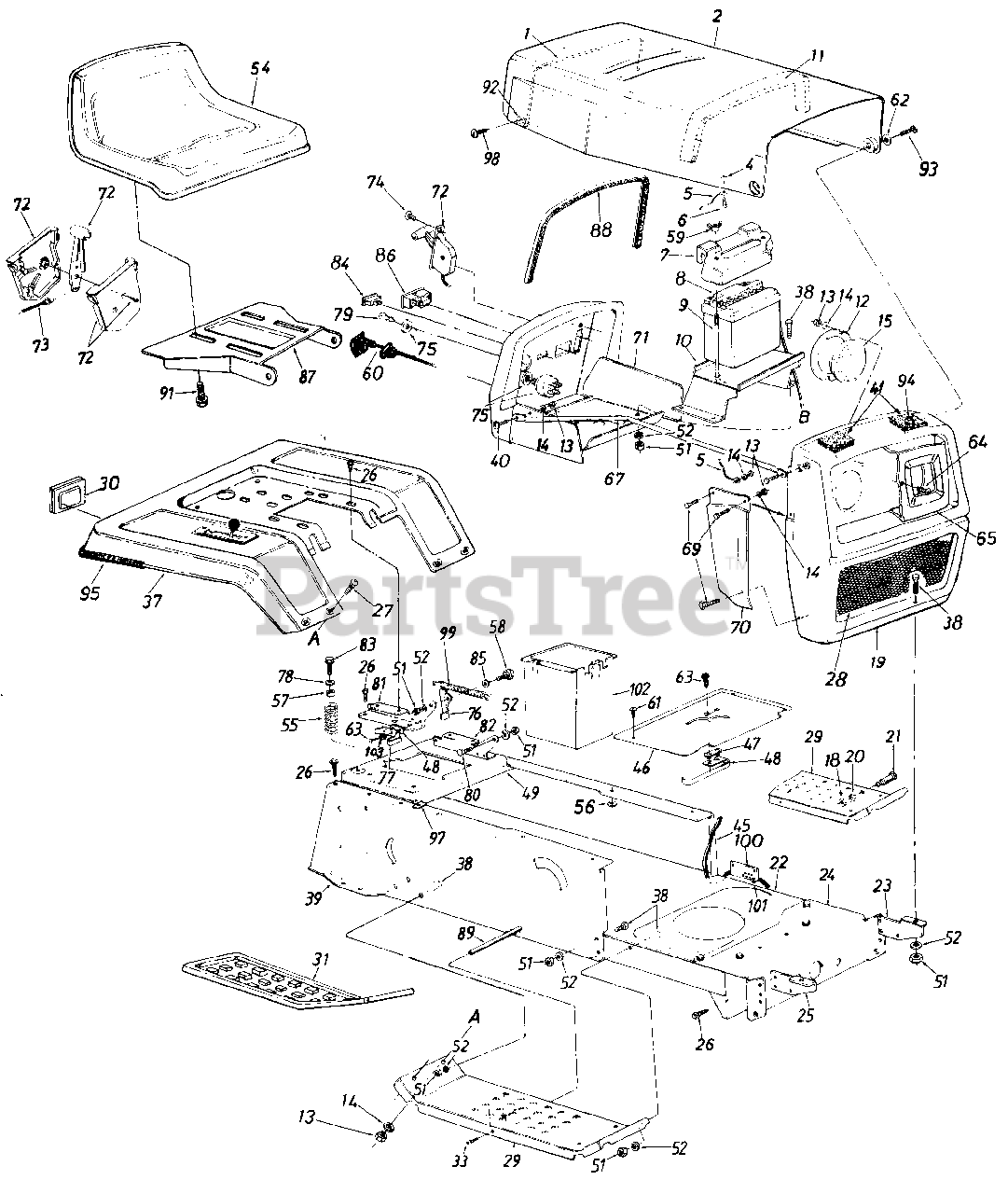

138-666-000 - MTD Lawn Tractor (1988) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 732-0559

Hood Spring

$

$

Not available

2

MTD 16646

Hood

Variations

MTD 16646-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 16646-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 16646-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 736-0931

Fl-Wash. .203" I.D.

$4.99

$

In Stock, only 1 left!

0

5

MTD 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

MTD 728-0123

Pop Rivet
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 731-0707

Battery Cover

$

$

Not available

8

MTD 725-0453

12 Volt Battery

$

$

Not available

9

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

10

MTD 12747

Battery Bracket

$

$

Not available

11

MTD 722-0138

PVC Foam-Strip

$

$

Not available

12

MTD 09960

Headlight Retainer

$

$

Not available

13

MTD 712-0287

Hex Nut 14-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

14

MTD 736-0329

L-Wash 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, Qty 5

0

18

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

19

MTD 14787

Grille Ass'y.

$

$

Not available

20

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

21

MTD 738-0145

Shld. Bolt .50" Dia. x .84

$6.99

$

Usually ships in 3-6 days

0

22

MTD 15930

Lower Frame

$

$

Not available

23

MTD 16643

Grille Mount Brkt.

$

$

Not available

24

MTD 14619

Front Pivot Brkt.

$

$

Currently unavailable

25

MTD 16644

Grille Mount Brkt.

$

$

Not available

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

28

MTD 731-0881

Grille Insert

$

$

Not available

29

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

30

MTD 730-0116

Reflector

$

$

Currently unavailable

31

MTD 731-0909

Foot Pad-L.H.

$

$

Not available

MTD 731-0910

Foot Pad-R.H.
(Superseded to 735-0689A)

$

$

Not available

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

37

MTD 17230

Fender

$

$

Currently unavailable

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

40

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

41

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

45

MTD 14603

L.H. Side Frame

$

$

Not available

46

MTD 17286

Shift Cover
(Superseded to 17286B-0637)

$42.99

$

Usually ships in 3-6 days

0

47

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

49

MTD 17226

Hitch Plate

$

$

Not available

51

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

MTD 757-0338

Seat Ass'y.
(Superseded to 957-0360A)

$

$

Not available

55

MTD 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

56

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

57

MTD 722-0160

Bushing

$

$

Not available

58

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

59

MTD 712-0113

Wing Nut 1/4-20 Thd.-Plastic
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

60

MTD 746-0613

Choke Control 46" Lg.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

61

MTD 710-0351

Truss Mach. Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

62

MTD 736-0413

Washer .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

63

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50

$4.49

$

In Stock, Qty 15

0

64

MTD 710-0346

Oval C-Sunk Mach. Scr. 1/4-20 x 1.5" Lg.

$

$

Not available

65

MTD 731-0465

Bezel

$

$

Not available

67

MTD 749-0673

Grille Support Rod-L.H.

Variations

MTD 749-0673-0637

No Longer Available ROD-GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 749-0674

Grille Support Rod-R.H.

$

$

Currently unavailable

69

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

70

MTD 14748

R.H.-Grille Side Panel

$

$

Currently unavailable

MTD 14749

L.H.-Grille Side Panel

$

$

Currently unavailable

71

MTD 17301

Dash Panel Ass'y.

Variations

MTD 17301-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

72

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

73

MTD 746-0634

Throttle Control Wire-35"
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

74

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .5" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

75

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

76

MTD 17239

Seat Lift Bracket
(Superseded to 17239C)

$

$

Not available

77

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

78

MTD 736-0159

Fl-Wash..344" I.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

80

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

81

MTD 17244

Seat Pivot Brkt. Support-R.H.

$

$

Not available

82

MTD 17243

Seat Pivot Brkt. Support-L.H.

$

$

Not available

83

MTD 710-0602

Hex Hd. Tap Scr. 5/16-18 x 1 " Lg.

$4.49

$

In Stock, Qty 20+

0

84

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

85

MTD 736-0141

Spr-Wash. .445" I.D. x .75'1 O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

86

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

87

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

88

MTD 731-0511

Molding Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

89

MTD 738-0526

Running Board Rod

$

$

Not available

91

MTD 710-0623

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg .

$4.49

$

In Stock, only 2 left!

0

92

MTD 731-0895

Hood Spring Retainer

$

$

Not available

93

MTD 738-0724

Shld. Bolt .375 Dia. x .125
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

94

MTD 712-0380

L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

95

MTD 731-0511

Trim Strip 31.0" Lg.

$3.99

$

Usually ships in 3-6 days

0

97

MTD 726-0139

Speed Nut #10Z

$6.99

$

In Stock, only 1 left!

0

98

MTD 710-0697

Self-Tap Scr. .5" Lg.

$

$

Not available

99

MTD 732-0581

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

100

MTD 16371

Brake Cable Bracket

$

$

Currently unavailable

101

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

102

MTD 731-0873

UtilitV Box

$

$

Not available

103

MTD 736-0426

Fiber Washer

$

$

Not available
