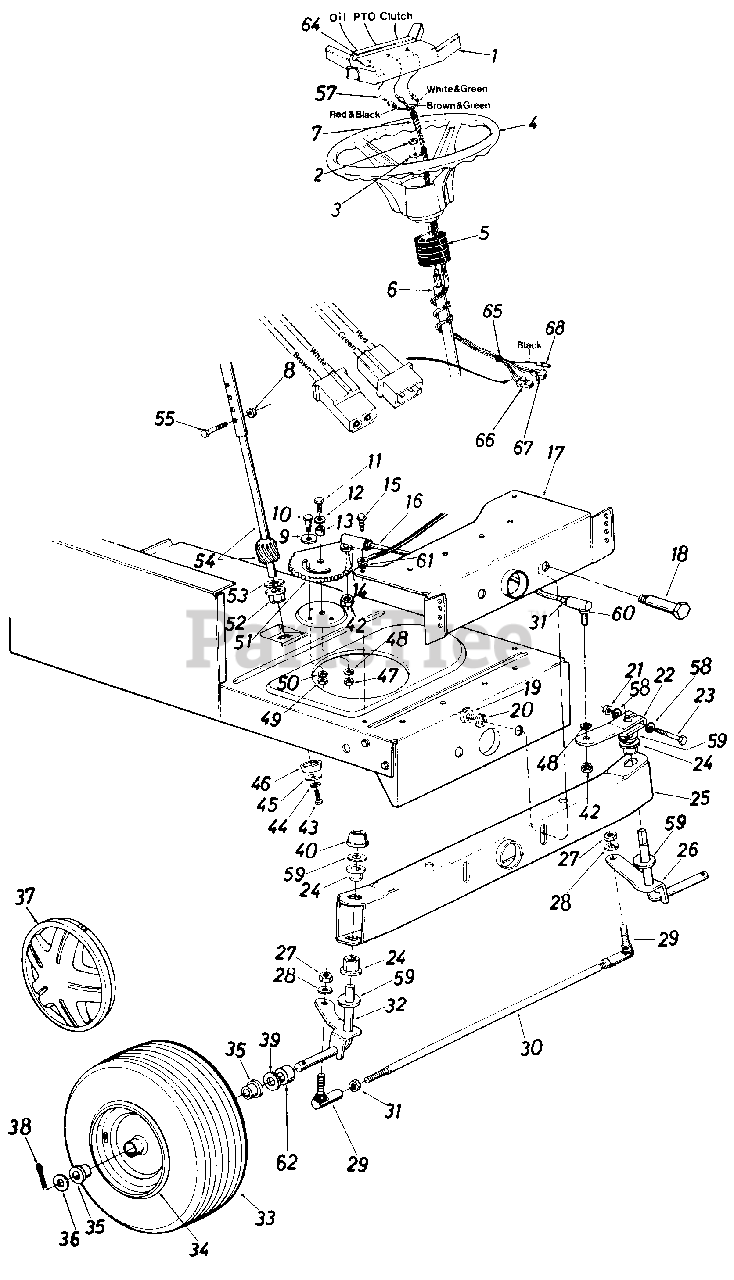

138-664-401 - MTD Lawn Tractor (1988) (Yard-Man) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

$

$

Not available

2

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

MTD 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0806

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

5

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

6

MTD 16512

Steering Column Ass'y.

$

$

Not available

7

MTD 725-1364

Wire Harness

Note: (Incl. Ref. 57)

$

$

Not available

8

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

9

MTD 736-0319

Fl-Wash. .438" I.D. x 1.37"
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

10

MTD 738-0141

Shoulder Bolt .437" Dia. x .35" Lg. 5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.(Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

13

MTD 750-0535

Spacer .380" I.D. x .625" O.D. x .227"
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

MTD 711-0788

Steering Drag Link

$

$

Not available

17

MTD 14619

Front Pivot Brkt.

$

$

Currently unavailable

18

MTD 738-0527

Shoulder Bolt .498" Dia. x 2.04" Lg. 3/8-16 Thd.

$8.49

$

In Stock, Qty 6

0

19

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

20

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

22

MTD 16481

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

23

MTD 710-0772

Hex Bolt 5/16-24 x 2.00" Lg.(Grade 5)

$4.49

$

Usually ships in 3-6 days

0

24

MTD 741-0225

Hex Flg. Brg. .634" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

25

MTD 14608

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Variations

MTD 14608-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$127.99

$

In Stock, only 2 left!

0

$127.99

$

In Stock, only 2 left!

0

26

MTD 17167

Front Axle Ass'y.-L.H.
(Superseded to 16479P)

$

$

Not available

27

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

MTD 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

30

MTD 711-0613

Tie Rod

$

$

Not available

31

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

MTD 17168

Front Axle Ass'y.-R . H .
(Superseded to 14650A)

$142.99

$

Usually ships in 3-6 days

0

33

MTD 734-1458

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

$249.99

$

In Stock, only 3 left!

0

MTD 734-0864

Tire Only

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

34

MTD 734-0997

Front Wheel Rim Only
(Superseded to 753-0838-0662)

$

$

Not available

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

35

MTD 741-0349

Needle Bearing
(Superseded to 741-0696)

$30.99

$

Usually ships in 3-6 days

0

36

MTD 736-0285

Fl-Wash. .635" I.D. x 1.59 O.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 734-1503

Hub Cap

$

$

Not available

MTD 731-0541

Hub Cap (Chrome)

$

$

Not available

38

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0187

Fl-Wash. .640" I.D. x .24" O.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, only 4 left!

0

42

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 9

0

44

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

46

MTD 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 717-0622

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

52

MTD 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

53

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

MTD 738-0522

Steering Shaft Lower
(Superseded to 738-0522A)

$75.99

$

In Stock, Qty 5

0

55

MTD 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

57

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

58

MTD 736-0271

Wave Wash. .32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

60

MTD 723-3018

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

61

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

62

MTD 750-0171

Spacer.635" I.D.

$

$

Not available

64

MTD 777-8122

Steering Wheel Insert Label

$

$

Currently unavailable

65

MTD 729-0204

Clamp

$

$

Currently unavailable

66

MTD 729-0132

Connector

$

$

Not available

67

MTD 729-0166

Connector

$

$

Not available

68

MTD 729-0139

Connector

$

$

Not available
