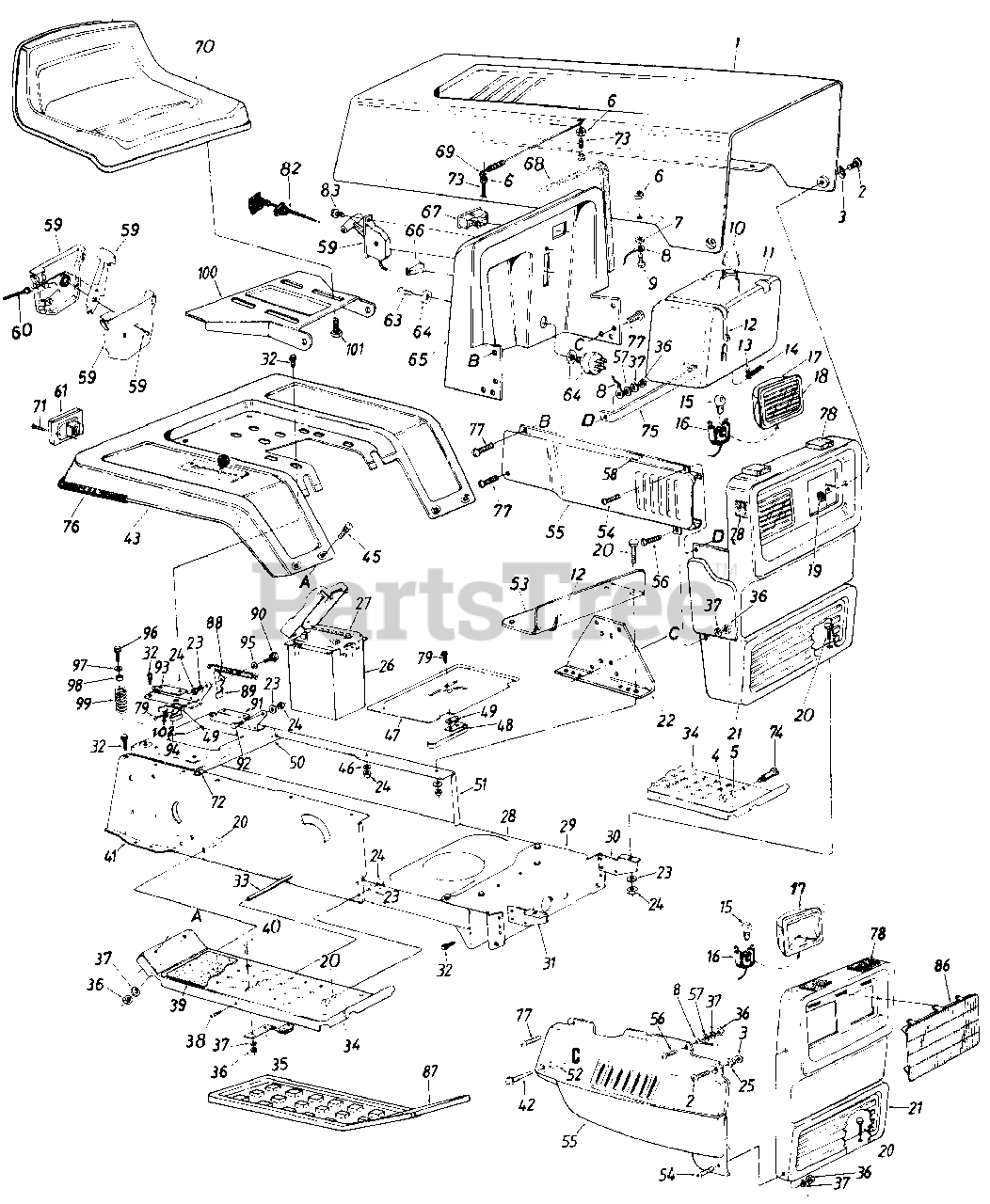

138-638-000 - MTD Lawn Tractor, Style 8 (1988) Style 3), (538, 548, 568, 608, 618, 638, 648, 658 Parts Diagram

Lawn Tractor, Style 8

Style 3), (538, 548, 568, 608, 618, 638, 648, 658 Parts Diagram

  • Title

1

MTD 15808

Hood

Note: (Style 3) *

$

$

Currently unavailable

2

MTD 738-0724

Shld. Bolt .375 Dia. x .125
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0413

Washer .39" I.D. x .62"

$6.99

$

In Stock, only 2 left!

0

4

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

5

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

7

MTD 736-0931

Fl-Wash. .203 I.D. x .41

$4.99

$

In Stock, only 1 left!

0

8

MTD 727-0290

Hood Stop
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

9

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2

$4.49

$

In Stock, only 2 left!

0

10

MTD 723-0333

Fuel Cap Gauge

$

$

Not available

11

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

12

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

13

MTD 726-0207

Hose Clamp

$

$

Not available

14

MTD 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

MTD 725-1058

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

18

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

19

MTD 712-0380

L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

20

MTD 710-0118

Hex Bolt 5/16-18 x .75 Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 15804

Grille

Note: (Style 3) *

$

$

Currently unavailable

MTD 16457

Grille-Used w/Headlight Bezel

Note: (Style 3) *

Variations

MTD 16457-0480

No Longer Available GRILLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16457-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 16457-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16457-0648

No Longer Available GRILLE - TECH GRAY (0648)

$

$

Not available

MTD 16457-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

MTD 17300

Dash Support Bracket

$

$

Not available

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 738-0759

Shld. Spacer

Note: (Style 8)

$

$

Not available

26

MTD 731-0871

Battery Box w/Cover
(Superseded to 731-0871B)

$

$

Not available

27

MTD 725-0514

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

28

MTD 15930

Lower Frame

$

$

Not available

29

MTD 14619

Front Pivot Brk't.

$

$

Currently unavailable

30

MTD 15821

Grille Mount Brk't.-L.H.

$

$

Not available

31

MTD 15822

Grille Mount Brk't.-R.H.

Variations

MTD 15822-0637

No Longer Available BRACKET-GR - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/1 6 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0526

Running Board Rod

$

$

Not available

34

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

35

Blade Brake Ass'y.

Note: (Refer to Deck Breakdown)

$

$

Not available

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

39

MTD 723-0360

Foot Pad

$

$

Not available

40

MTD 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

41

MTD 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

42

MTD 710-1026

Hex TT-Tap Scr. 1/4-20 x 1.75 Lg.

Note: (Style 8)

$6.99

$

In Stock, Qty 13

0

43

MTD 17228

Rear Fender

Variations

MTD 17228-0483

No Longer Available FENDER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17228-0498

No Longer Available FENDER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17228-0629

No Longer Available FENDER - SILVER FLAKE (0629)

$

$

Not available

MTD 17228-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 17229

Rear Fender Used w/Tailights

$

$

Currently unavailable

MTD 16198

Rear Fender

$

$

Not available

MTD 15350

Rear Fender

Variations

MTD 15350-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 710-0351

Truss Mach. Scr. #10 x 50"

$4.49

$

Usually ships in 3-6 days

0

45

MTD 710-0167

Carriage Bolt 1/4-20 x 50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

47

MTD 17286

Transmission Panel
(Superseded to 17286B-0637)

$42.99

$

Usually ships in 3-6 days

0

48

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

49

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

MTD 17225

Hitch Plate

$

$

Not available

51

MTD 14603

L.H. Side Frame

$

$

Not available

52

MTD 750-0583

Spacer 1.30" Lg.

Note: (Style 8)

$

$

Not available

53

MTD 14605

Fuel-Tank Support

$

$

Not available

54

MTD 710-0255

Truss Hd. Scr. 1/4-20 x 75n
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

55

MTD 15814

Side Cover-R.H.

Note: (Style 3)

$

$

Not available

MTD 17308

Side Cover-R.H.
(Superseded to 16725)

Note: (Style 8)

$

$

Not available

MTD 15815

Side Cover-L.H.

Note: (Style 3)

$

$

Not available

MTD 16721

Side Cover-L.H.

Note: (Style 8)

$

$

Not available

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

57

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

58

MTD 726-0152

Mounting Clamp

$

$

Not available

59

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

60

MTD 746-0500

Throttle Control Wire
(Superseded to 946-0500)

Note: (B&S)

$15.99

$

Usually ships in 3-6 days

0

MTD 746-0638

Throttle Control Wire
(Superseded to 946-0638)

Note: (Tec.)

$10.99

$

In Stock, Qty 9

0

61

MTD 725-1128

Taillight

$

$

Not available

63

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

65

MTD 17295

Dash Panel

Variations

MTD 17295-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

MTD 731-0511

Trim Strip-27"

$3.99

$

Usually ships in 3-6 days

0

69

MTD 732-0462

Hood Spring

$

$

Not available

70

MTD 757-0345

Seat 8-7/8" High
(Superseded to 957-0378)

$

$

Not available

MTD 757-0338

Seat 10-7/8" High
(Superseded to 957-0360A)

$

$

Not available

71

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

73

MTD 710-0749

Hex Scr. #10-24 x l.0" Lg.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

74

MTD 738-0145

Shld. Bolt .50 Dia. x .84

$6.99

$

Usually ships in 3-6 days

0

75

MTD 15931

Tie Strap-Grille/Side Panel

$

$

Not available

76

MTD 731-0511

Trim Strip-81"

$3.99

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 722-0157

Foam Strip 3/8 x 1-1/8" x 1-1/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

79

MTD 710-0227

Hex Wash. Hd. AB-Tap #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

82

MTD 746-0615

Choke Control 29n Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

83

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .5" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

86

MTD 731-0967

Headlight Bezel

$

$

Not available

87

MTD 731-0909

Rubber Foot Pad-L.H.

$

$

Not available

MTD 731-0910

Rubber Foot Pad-R.H.
(Superseded to 735-0689A)

$

$

Not available

88

MTD 732-0581

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

89

MTD 17239

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

90

MTD 738-0296

Shld. Bolt .437" Dia.

$4.49

$

In Stock, Qty 20+

0

91

MTD 17243

Seat Pivot Brkt. Support-L.H.

$

$

Not available

92

MTD 738-0155

Shld. Bolt .437" Dia.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

93

MTD 17244

Seat Pivot Brkt. Support-R.H.

$

$

Not available

94

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

95

MTD 736-0141

Spr-Wash. .445" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

96

MTD 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

97

MTD 736-0159

Fl-Wash. .344" I.D.

$4.49

$

In Stock, Qty 20+

0

98

MTD 722-0160

Bushing

$

$

Not available

99

MTD 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

100

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

101

MTD 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, only 2 left!

0

102

MTD 736-0426

Fiber Washer

$

$

Not available
