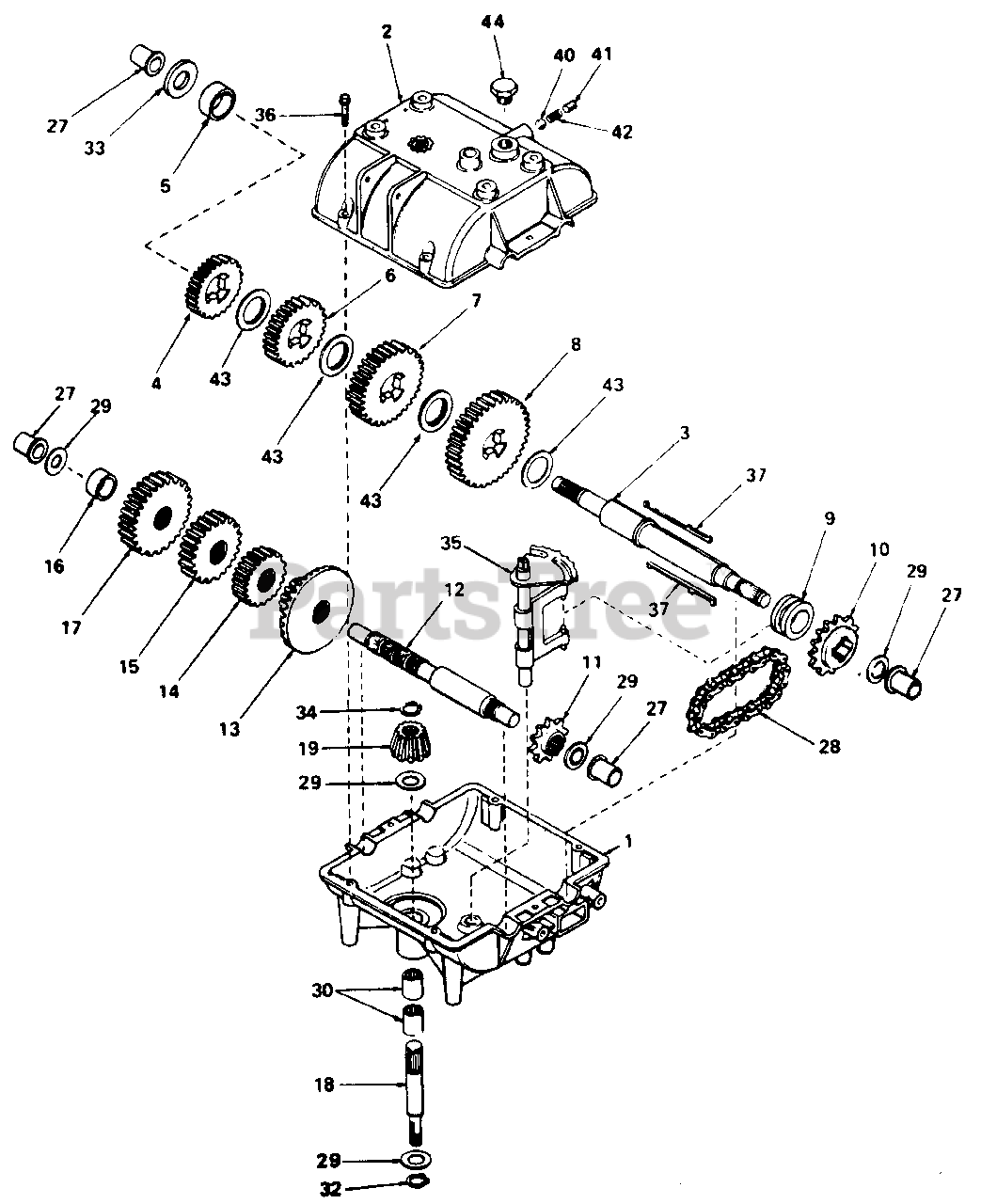

138-529-000 - MTD Lawn Tractor (1988) Transmission Parts Diagram

Lawn Tractor

Transmission Parts Diagram

  • Title

1

MTD PE-770061

Case, Transmission
(Superseded to TC-799045)

$113.99

$

Usually ships in 3-12 days

0

2

MTD PE-772070

Cover, Transmission

$

$

Currently unavailable

3

MTD PE-776166

Shaft, Output

$

$

Currently unavailable

4

MTD PE-778121

Gear, Spur (20 Teeth)
(Superseded to TC-778121A)

$46.99

$

Usually ships in 3-12 days

0

5

MTD PE-778122

Gear, Spur (22 Teeth)

$

$

Currently unavailable

6

MTD PE-778123

Gear, Spur (25 Teeth)
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

7

MTD PE-778124

Gear, Spur (30 Teeth)

$

$

Currently unavailable

8

MTD PE-778125

Gear, Spur (35 Teeth)
(Superseded to TC-778125)

$41.99

$

Usually ships in 3-12 days

0

9

MTD PE-784266

Collar, Shift
(Superseded to TC-784266)

$11.99

$

Usually ships in 3-12 days

0

10

MTD PE-786083

Sprocket (18 Teeth)
(Superseded to TC-786083)

$20.99

$

In Stock, only 1 left!

0

11

MTD PE-786082

Sprocket (9 Teeth)

$

$

Currently unavailable

12

MTD PE-776134

Shaft, Counter
(Superseded to TC-776134)

$98.99

$

In Stock, only 1 left!

0

13

MTD PE-778109

Gear, Bevel (42 Tooth & 15 Tooth Spur Gear)

$

$

Currently unavailable

14

MTD PE-778126

Gear, Spur (20 Teeth)
(Superseded to TC-778126A)

$48.99

$

Usually ships in 3-12 days

0

15

MTD PE-778127

Gear,.Spur (25 Teeth)
(Superseded to TC-778127A)

$53.99

$

In Stock, only 3 left!

0

16

MTD PE-778128

Gear, Spur (28 Teeth)

$

$

Currently unavailable

17

MTD PE-778129

Gear, Spur (30 Teeth)

$

$

Not available

18

MTD PE-776140

Shaft, Input
(Superseded to TC-776140)

$29.99

$

Usually ships in 3-12 days

0

19

MTD PE-778113

Bevel Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

MTD PE-786049

Sprocket (8 Teeth)

$

$

Currently unavailable

27

MTD PE-780105

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

28

MTD PE-786062

Chain, Roller (No. 41 Chain, 22 Links)

$

$

Not available

29

MTD PE-780072

Race, Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

MTD PE-780106

Bearing, Needle
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

MTD PE-792072

Ring, Retaining

$

$

Currently unavailable

32

MTD PE-792035

Ring, Retaining
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

33

MTD PE-780109

Washer

$

$

Not available

34

MTD PE-788040

Ring, Retaining
(Superseded to TC-788040)

$4.49

$

In Stock, only 4 left!

0

35

MTD PE-784271

Rod and Fork Ass'y., Shift

$

$

Not available

36

MTD PE-792073

Screw, Hex Hd. Taptite, 1/4-20 x 1 1/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

37

MTD PE-792089

Key

$

$

Currently unavailable

40

MTD PE-792077

Ball, Steel, 5/16"
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

41

MTD PE-792078

Screw, Set, 3/8-16 x 3/8
(Superseded to TC-792078)

$4.49

$

In Stock, only 1 left!

0

42

MTD PE-792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

43

MTD PE-780108

Washer, Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

44

MTD PE-792074

Plug

$

$

Not available
