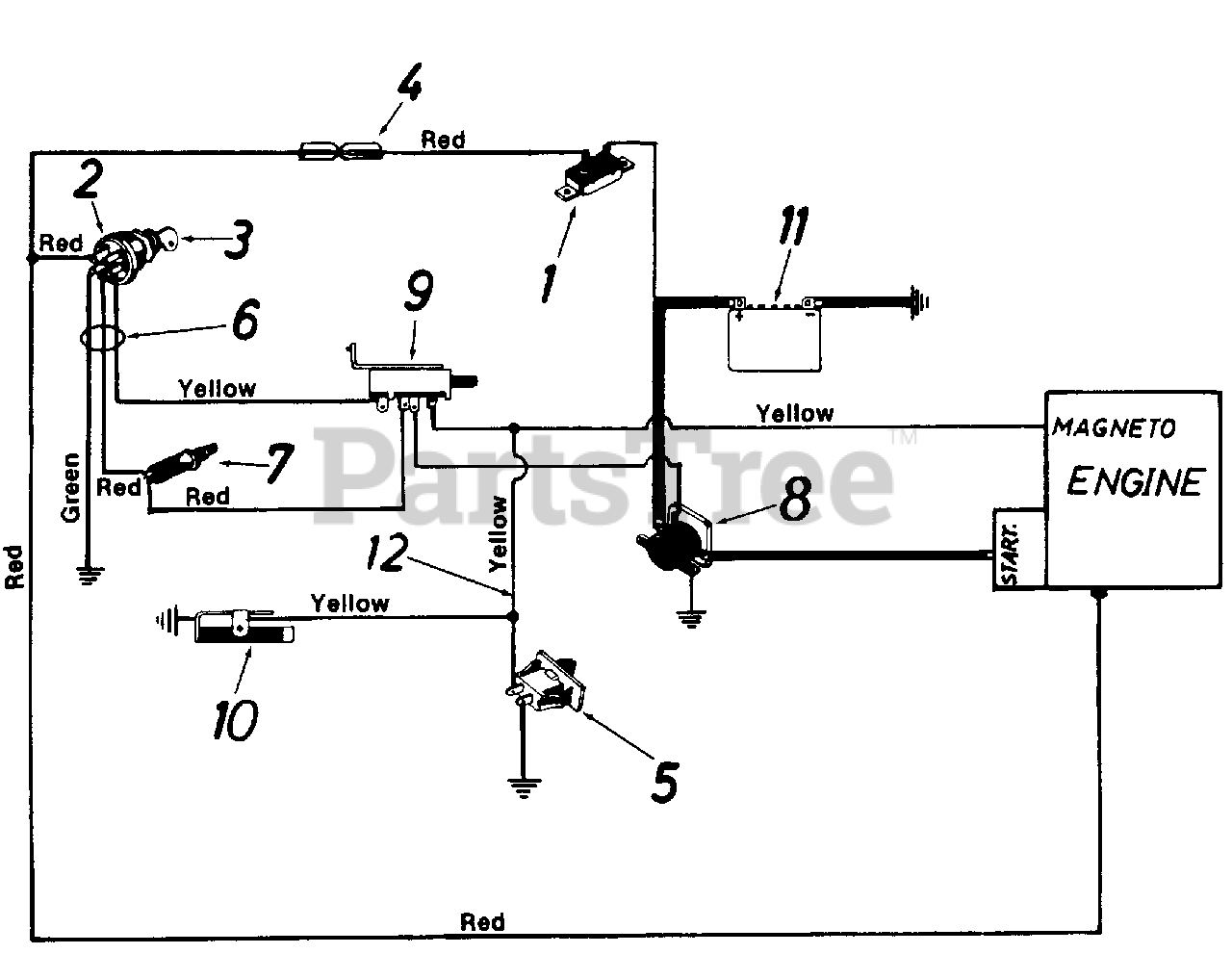

138-526-000 - MTD Lawn Tractor (1988) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

2

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

3

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

4

MTD 725-0717

Insulated Tab Adapter

$

$

Currently unavailable

5

MTD 725-0713

Satety Switch

Note: (Grass Catcher)

$

$

Not available

6

MTD 725-0870

Wire Harness

$

$

Currently unavailable

7

MTD 725-0577

Satety Switch

Note: (Drive)

$

$

Not available

8

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

9

MTD 725-0465

Satety Switch
(Superseded to 925-0465A)

Note: (Blade)

$30.99

$

In Stock, only 1 left!

0

10

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

Note: (Reverse)

$

$

Not available

11

MTD 725-0514

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

12

MTD 725-0712

Wire Lead

$

$

Currently unavailable
