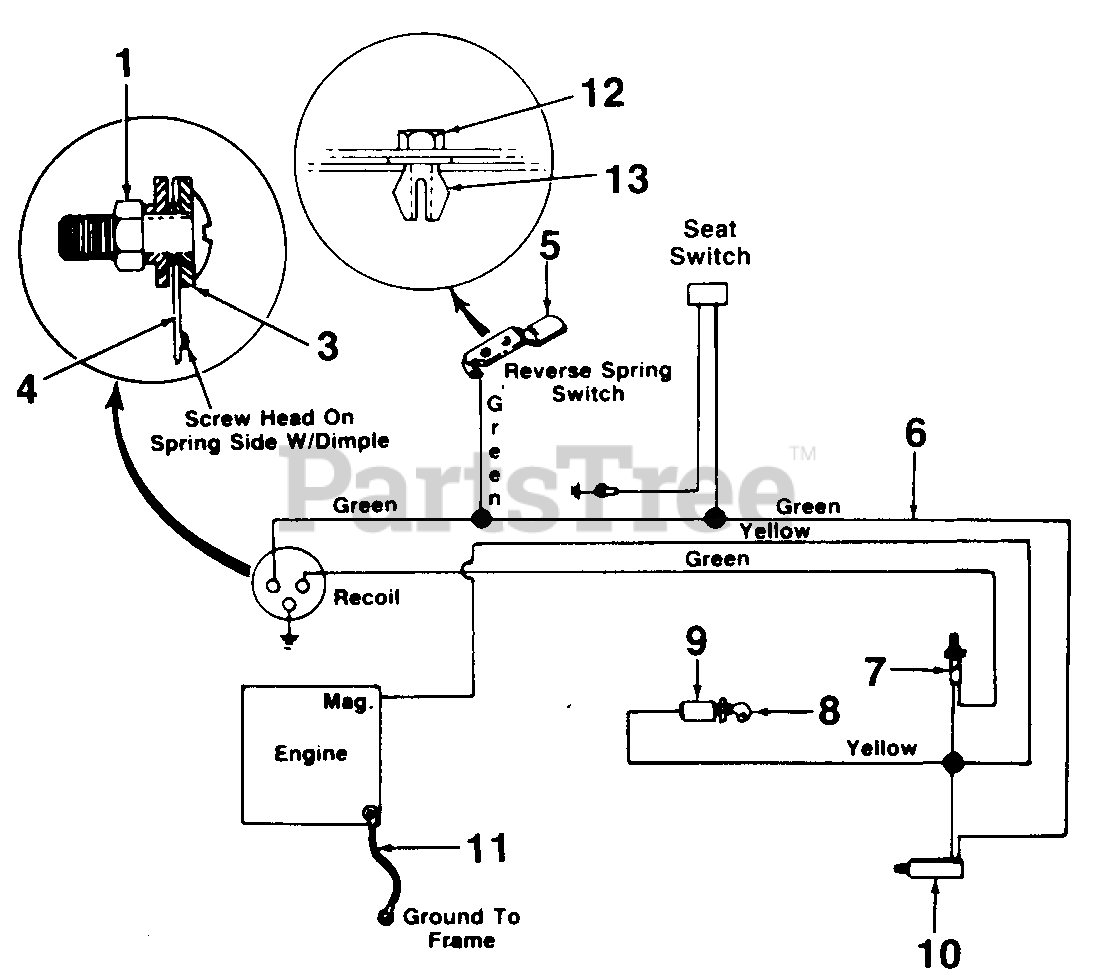

138-512-000 - MTD Lawn Tractor Accessory (1988) Electrical, Recoil Start Parts Diagram

Lawn Tractor Accessory

Electrical, Recoil Start Parts Diagram

  • Title

1

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

MTD 710-0425

Truss Mach. Scr. #10-24 x . 62 " Lg .

$4.99

$

Usually ships in 3-6 days

0

3

MTD 736-0338

Fiber Washer

$

$

Not available

4

MTD 732-0257

Switch Spring-Recoil

$

$

Not available

5

MTD 732-0420

Spring Switch-Reverse

$

$

Not available

6

MTD 725-1182

Wire Harness

$

$

Not available

7

MTD 725-0269

Safety Switch-Red N.C.- Clutch
(Superseded to 925-0269)

$

$

Not available

8

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

9

MTD 725-0464

Ignition Switch
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

10

MTD 725-0819

Safety Switch-P.T.O.
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

11

MTD 725-0882

Ground Wire

$

$

Not available

12

MTD 710-0425

Truss Mach. Scr. #10-24

$4.99

$

Usually ships in 3-6 days

0

13

MTD 726-0206

Push-ln Nut #10

$

$

Currently unavailable
