138-4890 - Toro Height of Cut Latching Kit for Grandstand Mower LATCHING KIT ASSEMBLY NO. 138-4890 Parts Diagram

Height of Cut Latching Kit for Grandstand Mower

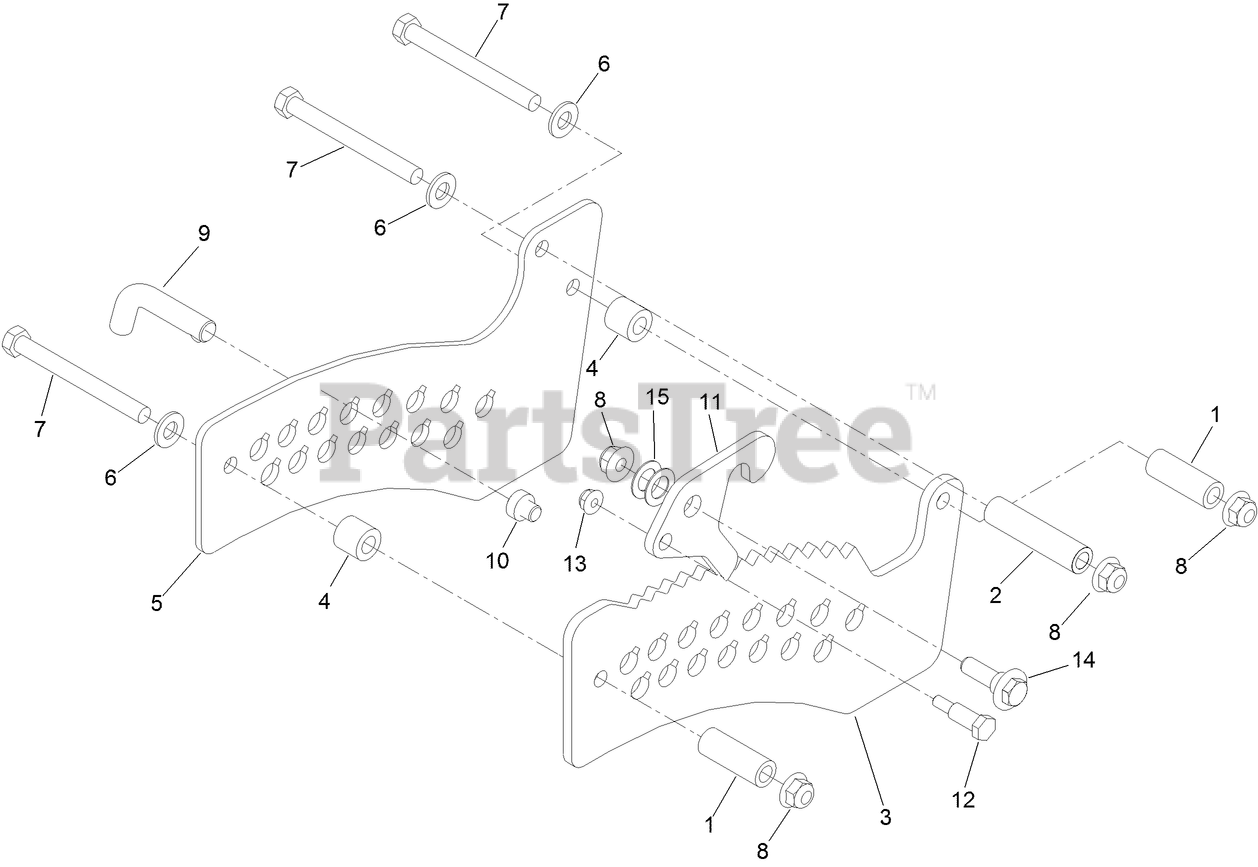

LATCHING KIT ASSEMBLY NO. 138-4890 Parts Diagram

  • Title

1

Toro 95-6448

SPACER

$5.99

$

Usually ships in 3-6 days

0

2

Toro 138-1111

SPACER

$15.99

$

Usually ships in 3-6 days

0

3

Toro 138-4887

PLATE-HOC, INNER

$104.99

$

Usually ships in 3-6 days

0

4

Toro 121-1760

SPACER

$2.49

$

In Stock, only 2 left!

0

5

Toro 132-7581

HOC PLATE AND DECAL ASM

$84.99

$

Usually ships in 3-6 days

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 10

0

10

Toro 138-4863

PLUG-WEAR

$32.99

$

Usually ships in 3-6 days

0

11

Toro 138-4888

LATCH-HOC

$42.99

$

Usually ships in 3-6 days

0

12

Toro 119-2309

BOLT-SHOULDER

$28.99

$

Usually ships in 3-6 days

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

15

Toro 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0
