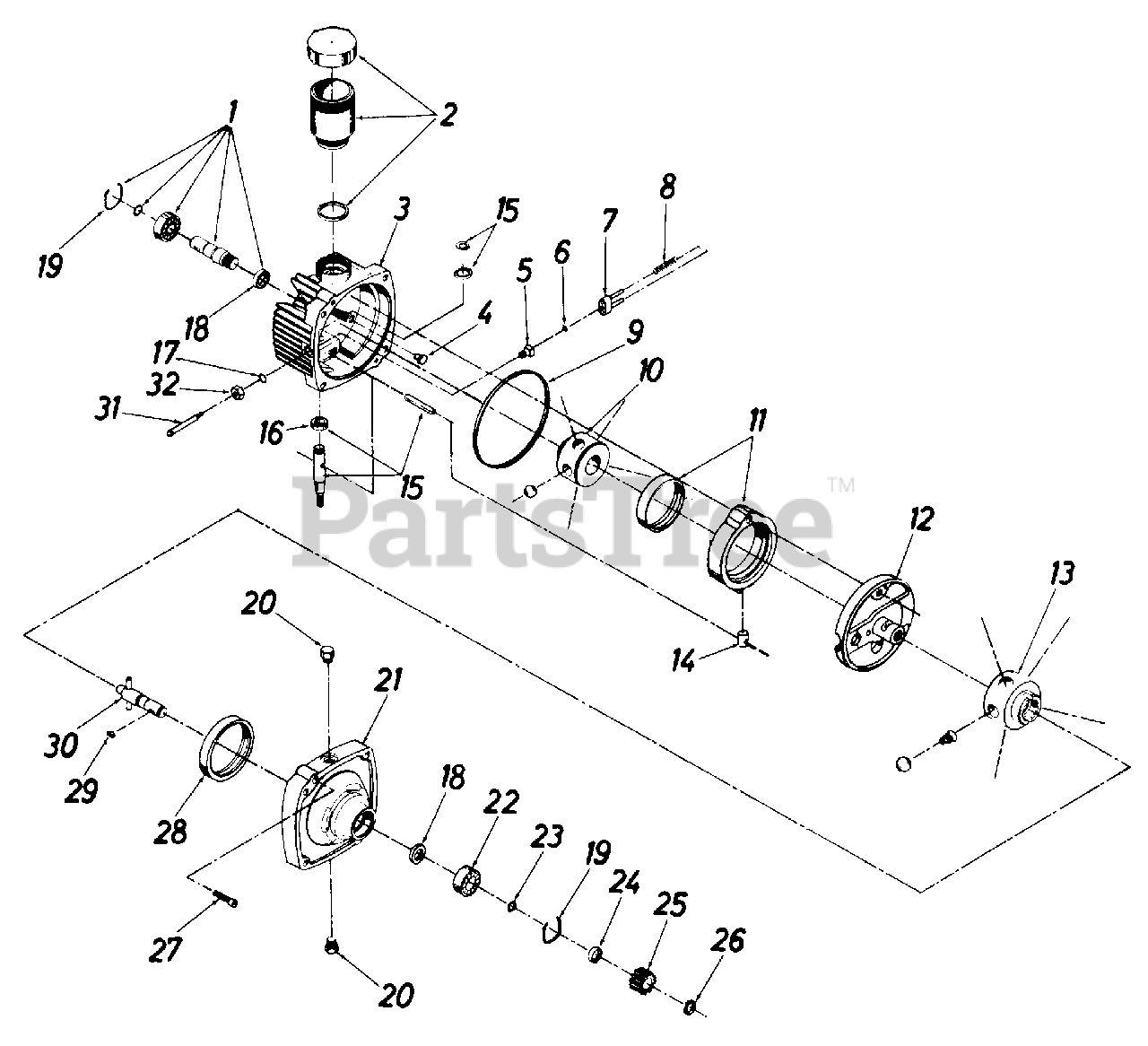

13785S - MTD Lawn Tractor (1985) Hydrostatic Parts Diagram

Lawn Tractor

Hydrostatic Parts Diagram

  • Title
1

MTD ET-990067-000

Kit Input Shaft

$

$

Not available

2

MTD ET-990077-000

Kit Reservoir

$

$

Not available

3

MTD ET-990176-000

Kit Cover

$

$

Currently unavailable

$

$

Currently unavailable

5

MTD ET-024234-000

O-Ring Fitting Guide Subassembly

$

$

Not available

$

$

Not available

7

MTD ET-024166-000

Bracket Pins Subassem bly

$

$

Currently unavailable

8

MTD ET-072149-000

Valve Spring

$

$

Currently unavailable

9

MTD ET-008771-162

Square Cut Seal Ring

$

$

Not available

10

MTD ET-022712-000

Pump Rotor Ball Subassembly

$

$

Not available

11

MTD ET-102449-000

Cam Ring Subassembly

$

$

Currently unavailable

12

MTD ET-102532-000

Pintle Subassembly

$

$

Not available

13

MTD ET-022711-000

Motor Rotor Ball Subassembly
(Superseded to ET-104111-000)

$

$

Not available

14

MTD ET-095203-000

Cam Ring Insert

$

$

Currently unavailable

15

MTD ET-990083-000

Kit Control Shaft

$

$

Not available

16

MTD ET-093895-000

Oil Seal
(Superseded to ET-093895-000P)

$

$

Not available

17

MTD ET-008761-013

O-Ring.013

$

$

Not available

18

$

$

Not available

19

MTD ET-091231-000

Retaining Ring

$

$

Currently unavailable

20

MTD ET-025090-006

O-Ring Plug Subassembly

$

$

Not available

$

$

Currently unavailable

22

MTD ET-090797-000

Ball Bearing

Note: (Output)

$

$

Not available

23

MTD ET-097121-000

Snap Ring

$

$

Not available

24

$

$

Currently unavailable

25

MTD ET-040511-000

Drive Gear (12 Teeth)

$

$

Not available

26

MTD ET-096098-066

External Retaining Ring

$

$

Not available

27

MTD ET-095912-125

Socket Hd. Scr. 5/16-18 x 1.25" Lg.

$

$

Currently unavailable

28

MTD ET-040519-000

Motor Race

$

$

Not available

29

MTD ET-009476-000

Woodruff Key #3

$

$

Not available

30

MTD ET-022892-000

Output Shaft Subassembly

$

$

Not available

31

MTD ET-062240-000

Dump Valve Shaft

$

$

Not available

32

MTD ET-024235-000

Nut Gasket Subassembly

$

$

Not available
