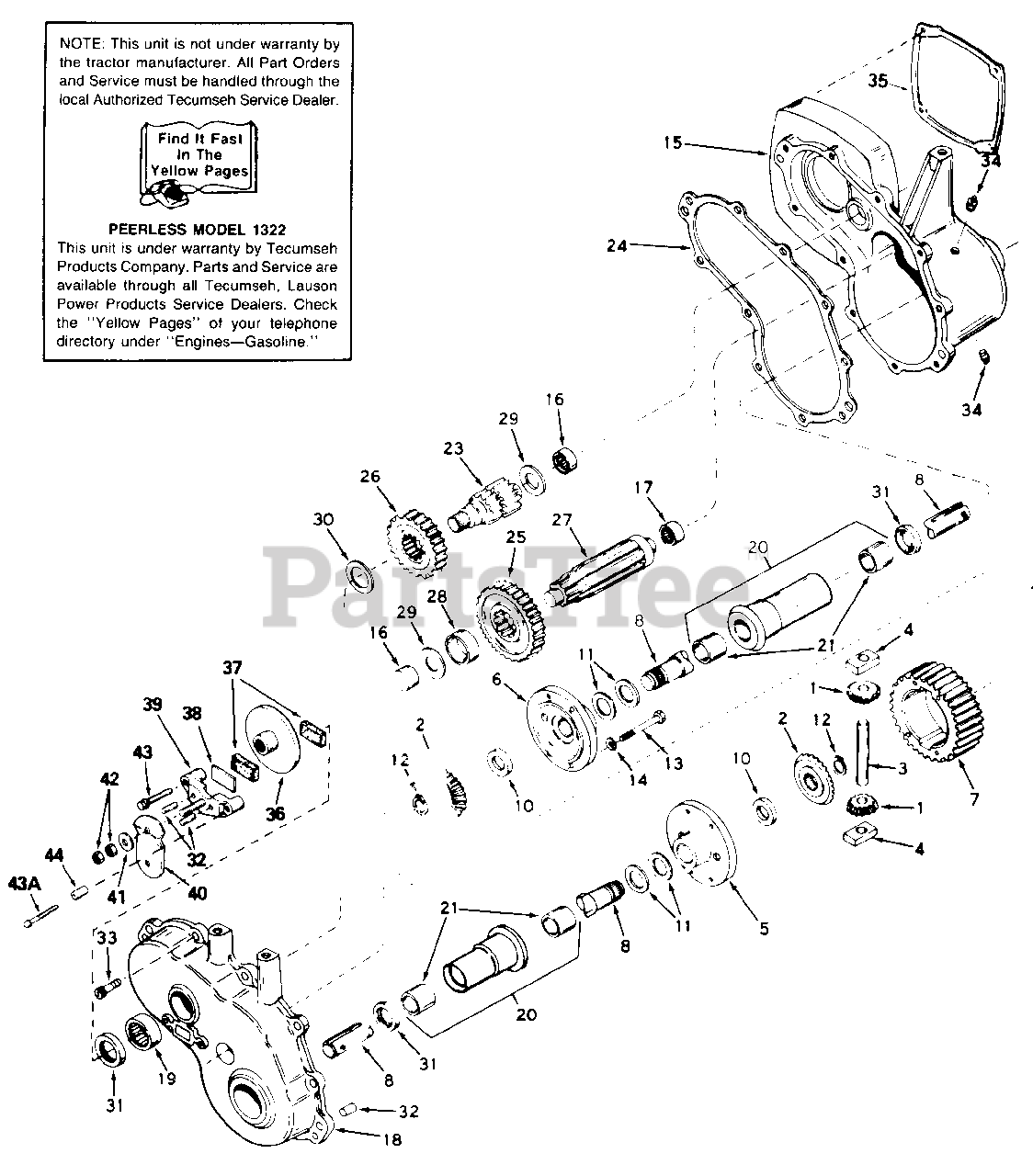

13785C - MTD Lawn Tractor (1986) Transaxle Parts Diagram

Lawn Tractor

Transaxle Parts Diagram

  • Title

1

MTD PE-778014

Pinion: Bevel

$

$

Currently unavailable

2

MTD PE-778039

Gear: Bevel

$

$

Currently unavailable

3

MTD PE-786019

Pin: Drive

$

$

Currently unavailable

4

MTD PE-786027

Block: Drive

$

$

Currently unavailable

5

MTD PE-774028A

Carrier: Differential

$

$

Not available

6

MTD PE-774029A

Carrier: Differential

$

$

Currently unavailable

7

MTD PE-778033A

Gear: Ring

$

$

Currently unavailable

8

MTD PE-774434

Axle

Note: (16-1/64" Long)

$

$

Currently unavailable

10

MTD PE-780107

Washer

$

$

Currently unavailable

11

MTD PE-780042

Washer: Thrust

$

$

Currently unavailable

12

MTD PE-792018

Ring: Snap

$

$

Currently unavailable

13

MTD PE-792020

Screw: Hex Hd. 1/4-20 x 2 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

MTD PE-792006

Lock Washer: 1/4"

$

$

Currently unavailable

15

MTD PE-770052

Case Ass'y.

Note: (Incl. Nos. 16 & 17)

$

$

Currently unavailable

16

MTD PE-780013

Bearing: Needle

$

$

Currently unavailable

17

MTD PE-780088

Bearing: Needle

$

$

Currently unavailable

18

MTD PE-772035

Cover Ass'y.

Note: (Incl. Nos. 16 & 19)

$

$

Currently unavailable

19

MTD PE-780089

Bearing: Needle

$

$

Currently unavailable

20

MTD PE-782041

Housing Ass'y.: Axle

Note: (Incl. 2 of No. 21)

$

$

Currently unavailable

21

MTD PE-780054

Bushing

$

$

Currently unavailable

23

MTD PE-776207

Shaft: Brake

$

$

Currently unavailable

24

MTD PE-788044

Gasket: Case to Cover
(Superseded to TC-788044A)

$6.49

$

Usually ships in 3-12 days

0

25

MTD PE-778036

Gear: Output

$

$

Currently unavailable

26

MTD PE-778037

Gear: Idler

$

$

Currently unavailable

27

MTD PE-778041

Shaft: Output

$

$

Currently unavailable

28

MTD PE-786017

Spacer

$

$

Currently unavailable

29

MTD PE-780001

Washer

$

$

Not available

30

MTD PE-780090

Washer

$

$

Currently unavailable

31

MTD PE-788008

Seal: Oil
(Superseded to TC-788008)

$8.49

$

In Stock, only 2 left!

0

32

MTD PE-786026

Pin: Dowel

$

$

Currently unavailable

33

MTD PE-792046

Screw: Hex Hd.: Self-Tapping: 1/4-20 x 1

$

$

Currently unavailable

34

MTD PE-792010

Plug: Pipe

$

$

Currently unavailable

35

MTD PE-788046

Gasket

$

$

Currently unavailable

36

MTD PE-790027

Disc: Brake

$

$

Currently unavailable

37

MTD PE-790006

Pad: Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

38

MTD PE-790007

Plate: Brake Pad

$

$

Currently unavailable

39

MTD PE-790005

Holder: Brake Pad

$

$

Currently unavailable

40

MTD PE-790010

Lever: Brake

$

$

Currently unavailable

41

MTD PE-792076

Washer: Flat

$

$

Currently unavailable

42

MTD PE-792075

Lock Nut 5/16-24

$

$

Currently unavailable

43

MTD PE-792073

Screw: Hex Hd.: Self-Tapping: 1/4-20 x 11/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

43A

MTD PE-792085

Screw: Hex Hd.: Self-Tapping: 1/4-20 x 21/4

$

$

Currently unavailable

44

MTD PE-786066

Spacer

$

$

Currently unavailable
