13735-9 - MTD Lawn Tractor (1989) Lawn Parts Diagram

Lawn Tractor

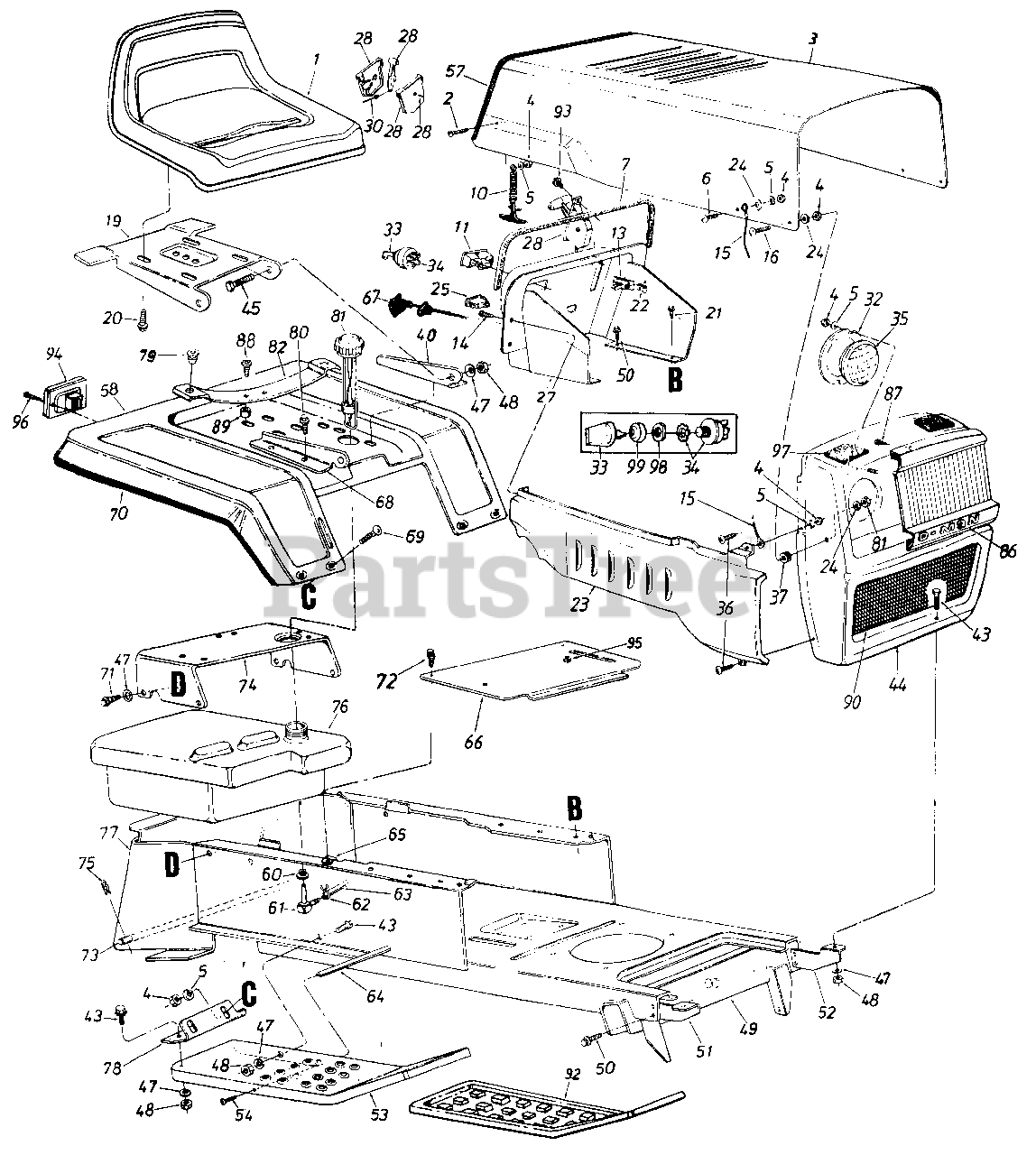

Lawn Parts Diagram

  • Title

1

MTD 757-0336

Seat Assembly

$

$

Not available

2

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

3

MTD 13808

Hood

Variations

MTD 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

5

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 731-0511

Vinyl Molding Strip 29"

$3.99

$

Usually ships in 3-6 days

0

10

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

11

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

13

MTD 725-1382

Circuit Breaker

$

$

Not available

14

MTD 710-0351

Hex Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

15

MTD 727-0199

Hood Stop

$

$

Not available

16

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

19

MTD 15607D

Seat Pivot Brkt.
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

20

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 318 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

21

MTD 710-0599

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0344

Speed Nut #10Z

$

$

Not available

23

MTD 731-1064

Grille Side Panel R.H.

$

$

Currently unavailable

MTD 731-1063

Grille Side Panel L.H.

Note: (Not Shown)

$

$

Currently unavailable

24

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 4 left!

0

25

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

27

MTD 16427

Dash Panel Ass'y.

$

$

Not available

28

MTD 831-0823A

Throttle Control Box Comp.

$32.99

$

In Stock, Qty 20+

0

30

MTD 746-0634

Throttle Control Cable 35" Lg.
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

32

MTD 09960

Head Lamp Retainer

$

$

Not available

33

MTD 725-1123

Ignition Key

$

$

Not available

34

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

35

MTD 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, Qty 5

0

36

MTD 710-0255

Truss Machine Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

37

MTD 735-0144

Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk.

$

$

Not available

40

MTD 15803

Seat Bracket L.H.

$

$

Not available

43

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

44

MTD 14044

Grille Ass'y.

$

$

Currently unavailable

45

MTD 738-0155

Shld. Bolt .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

47

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 13820C

Lower Frame Ass'y.

$

$

Not available

50

MTD 710-0726

Hex Thd. Rolling Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 13862

Grille Mount Brkt. R.H.

$

$

Not available

52

MTD 13863

Grille Mount Brkt. L.H.

$

$

Not available

53

MTD 16390A

No Longer Available RUNNING BO

$

$

Not available

MTD 13827D

No Longer Available RUNNING BO

$

$

Not available

54

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

57

MTD 731-0511

Vinyl Moulding Strip 30"

$3.99

$

Usually ships in 3-6 days

0

58

MTD 16448A

Rear Fender

$

$

Currently unavailable

60

MTD 735-0149

Bushing
(Superseded to 935-0149)

Note: (Gas Tank)

$2.99

$

In Stock, Qty 20+

0

61

MTD 751-3054

90ø Nipple

$

$

Currently unavailable

62

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

63

MTD 751-0535

Gas Line 46" Lg.

$

$

Currently unavailable

64

MTD 738-0435

Running Board Rod

$

$

Not available

65

MTD 712-0147

Speed Nut #10-24

$6.99

$

Usually ships in 3-6 days

0

66

MTD 17150

Transmission Cover Ass'y.

$

$

Currently unavailable

67

MTD 746-0613A

Choke Control Comp.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

68

MTD 15802

Seat Bracket R.H.

$

$

Not available

69

MTD 710-0167

Carr. Bolt 1/4-20 X .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 731-0511

Trim Strip 81" Lg.

$3.99

$

Usually ships in 3-6 days

0

71

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

72

MTD 710-0351

Truss Hd. Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

73

MTD 738-0482

Hitch Rod

$

$

Not available

74

MTD 15849

Seat Mounting Channel

$

$

Not available

75

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 7

0

76

MTD 751-0367

Gas Tank

$

$

Not available

77

MTD 13813B

Hitch Plate

Variations

MTD 13813B-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

$

$

78

MTD 15846

Fender Brkt. R.H.

Variations

MTD 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Brkt. L.H.

Note: (Not Shown)

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

79

MTD 731-0555A

Grommet

$

$

Not available

80

MTD 710-0607

Hex Hd. Tap Screw

$6.99

$

In Stock, Qty 11

0

81

MTD 751-0370

Gas Gauge

$

$

Not available

82

MTD 732-0431

Seat Spring

$

$

Currently unavailable

MTD 736-0222

External Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

86

MTD 731-0501

Headlight Bezel

$

$

Currently unavailable

87

MTD 710-0200

Self-Tap Scr. #8 x .5" Lg.

$

$

Not available

88

MTD 710-0817

Hex Self-Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

89

MTD 750-0706

Spacer
(Superseded to 950-0706)

$

$

Not available

90

MTD 731-0881

Grille Insert

$

$

Not available

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

92

MTD 731-1052

Foot Pad

$

$

Not available

93

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

94

MTD 725-1128

Taillight

$

$

Not available

95

MTD 731-0405

Snap Bushing

$

$

Not available

96

MTD 710-0936

Truss AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

97

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

98

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

99

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0
