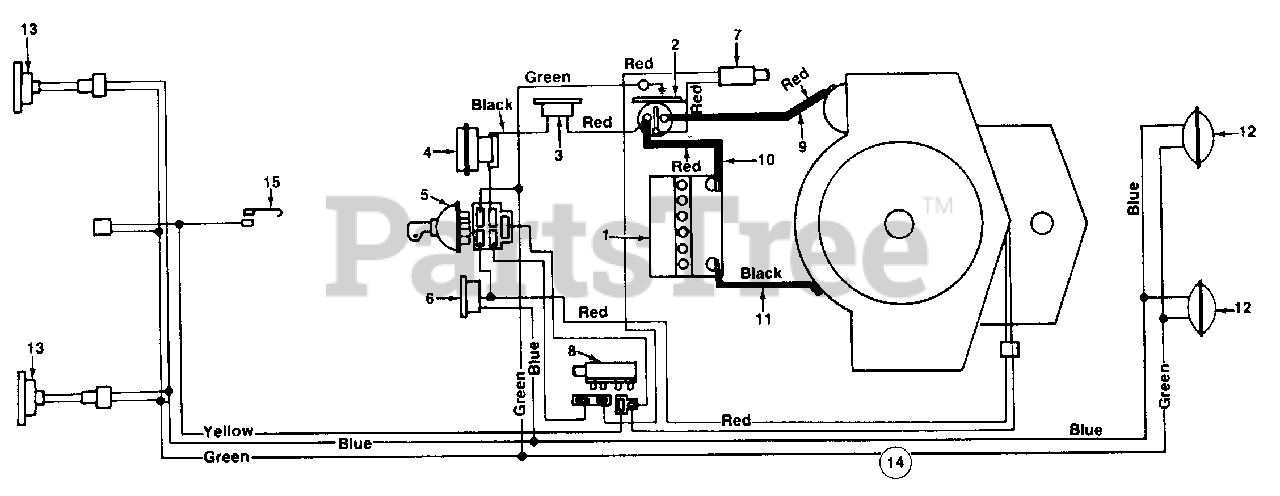

13735-9 - MTD Lawn Tractor (1989) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0453A

Battery

$

$

Not available

2

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

3

MTD 725-1382

Circuit Breaker

$

$

Not available

4

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

5

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

6

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

7

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

8

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

9

MTD 725-0561

Electric Wire 14" Lg.
(Superseded to 629-0705)

$

$

Not available

10

MTD 725-0563

Electric Wire 7.5" Lg.

$

$

Currently unavailable

11

MTD 725-0996

Ground Wire 7.5" Lg.

$

$

Not available

12

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

13

MTD 725-1128

Taillight

$

$

Not available

14

MTD 725-1388

Wire Harness

$

$

Currently unavailable

15

MTD 725-0758

Spring Switch
(Superseded to 753-0580)

$

$

Not available
