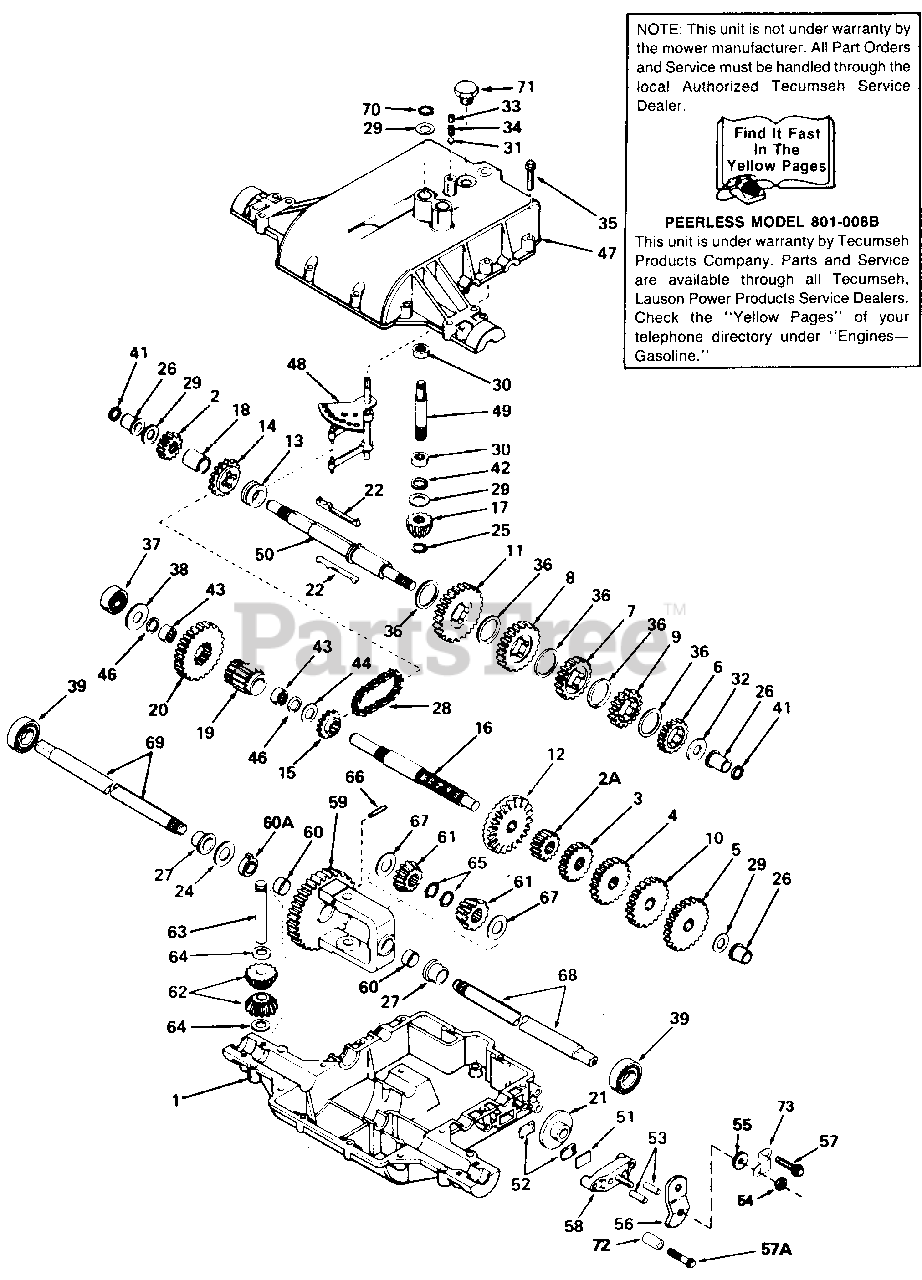

13735-7 - MTD Lawn Tractor (1987) Peerless Parts Diagram

Lawn Tractor

Peerless Parts Diagram

  • Title

1

MTD PE-770071A

Case: Transaxle

$

$

Currently unavailable

2

MTD PE-778136

Gear: Spur (15 teeth)

$

$

Currently unavailable

2A

MTD PE-778145

Gear: Spur (12 teeth)

$

$

Currently unavailable

3

MTD PE-778126A

Gear: Spur (20 teeth)
(Superseded to TC-778126A)

$48.99

$

Usually ships in 3-12 days

0

4

MTD PE-778127A

Gear: Spur (25 teeth)
(Superseded to TC-778127A)

$53.99

$

In Stock, only 3 left!

0

5

MTD PE-778129A

Gear: Spur (30 teeth)

$

$

Not available

6

MTD PE-778121A

Gear: Spur (20 teeth)
(Superseded to TC-778121A)

$46.99

$

Usually ships in 3-12 days

0

7

MTD PE-778123A

Gear: Spur (25 teeth)
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

8

MTD PE-778124A

Gear: Spur (30 teeth)
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

9

MTD PE-778122A

Gear: Spur (22 teeth)

$

$

Currently unavailable

10

MTD PE-778128A

Gear: Spur (28 teeth)

$

$

Currently unavailable

11

MTD PE-778146A

Gear: Spur (37 teeth)

$

$

Currently unavailable

12

MTD PE-778137A

Gear. Bevel (42 teeth)
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

13

MTD PE-784266

Collar: Shift
(Superseded to TC-784266)

$11.99

$

Usually ships in 3-12 days

0

14

MTD PE-786083

Sprocket (18 teeth)
(Superseded to TC-786083)

$20.99

$

In Stock, only 1 left!

0

15

MTD PE-786082

Sprocket (9 teeth)

$

$

Currently unavailable

16

MTD PE-776204

Shaft: Counter
(Superseded to TC-776204)

$79.99

$

In Stock, only 1 left!

0

17

MTD PE-778113A

Bevel Pinion: Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

18

MTD PE-786074

Spacer

$

$

Currently unavailable

19

MTD PE-778138

Pinion: Output

$

$

Currently unavailable

20

MTD PE-778139

Gear: Output

$

$

Currently unavailable

21

MTD PE-790003

Disk: Brake

$

$

Currently unavailable

22

MTD PE-792089A

Key
(Superseded to TC-792089B)

$35.99

$

Usually ships in 3-12 days

0

24

MTD PE-780001

Washer

$

$

Not available

25

MTD PE-788040

Ring: Retaining
(Superseded to TC-788040)

$4.49

$

In Stock, only 4 left!

0

26

MTD PE-780105A

Bushing: Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

27

MTD PE-780118A

Bushing: Flanged
(Superseded to TC-780118A)

$8.49

$

Usually ships in 3-12 days

0

28

MTD PE-786081

Chain: Roller
(Superseded to TC-786081)

Note: (No. 41 Chain: 24 Links)

$22.99

$

Usually ships in 3-12 days

0

29

MTD PE-780072

Washer: Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

MTD PE-780122

Bearing: Needle

$

$

Currently unavailable

31

MTD PE-792077

Ball: Steel
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

32

MTD PE-780109

Washer: Thrust

$

$

Not available

33

MTD PE-792078

Screw: Set: 3/8-16 x 3/8
(Superseded to TC-792078)

$4.49

$

In Stock, only 1 left!

0

34

MTD PE-792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

35

MTD PE-792073

Screw: Hex Hd. Thread Forming: 1/4-20 x 11/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

36

MTD PE-780108

Washer: Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

37

MTD PE-780121

Bearing: Ball

$

$

Currently unavailable

38

MTD PE-780113

Washer: Flat

$

$

Currently unavailable

39

MTD PE-780119

Bearing: Ball

$

$

Currently unavailable

41

MTD PE-788051

Ring: Square Cut

$

$

Currently unavailable

42

MTD PE-788057

Ring: Square Cut

$

$

Currently unavailable

43

MTD PE-780112

Bearing: Needle

$

$

Currently unavailable

44

MTD PE-780114

Washer: Flat

$

$

Currently unavailable

46

MTD PE-788053

Ring: Square Cut
(Superseded to TC-788053)

$4.49

$

Usually ships in 3-12 days

0

47

MTD PE-772082

Cover: Transaxle

$

$

Currently unavailable

48

MTD PE-784290

Rod & Fork Ass'y.: Shift

$

$

Currently unavailable

49

MTD PE-776140

Shaft: Input
(Superseded to TC-776140)

$29.99

$

Usually ships in 3-12 days

0

50

MTD PE-776184A

Shaft: Brake

$

$

Currently unavailable

51

MTD PE-790007

Plate: Brake Pad

$

$

Currently unavailable

52

MTD PE-790006

Pad: Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

53

MTD PE-786026

Pin: Dowel

$

$

Currently unavailable

54

MTD PE-792075

Locknut: 5/16-24

$

$

Currently unavailable

55

MTD PE-792076

Washer: Flat

$

$

Currently unavailable

56

MTD PE-790004

Lever: Brake

$

$

Currently unavailable

57

MTD PE-792073

Screw: Hex Hd. Thread Forrning: 1/4-20 x 11/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

57A

MTD PE-792085

Screw: Hex Hd. Thread Forrning: 1/4-20 x 21/4

$

$

Currently unavailable

58

MTD PE-790025

Holder: Brake Pad

$

$

Currently unavailable

59

MTD PE-778053A

Gear Ass'y.: Differential

Note: (Incl. 2 of No. 60)

$

$

Currently unavailable

60

MTD PE-780064

Bushing

$

$

Currently unavailable

60A

MTD PE-780120

Bushing

$

$

Currently unavailable

61

MTD PE-778166

Gear: Bevel

$

$

Currently unavailable

62

MTD PE-778131

Pinion: Bevel

$

$

Currently unavailable

63

MTD PE-786034

Pin: Drive

$

$

Currently unavailable

64

MTD PE-780065

Washer: Thrust

$

$

Currently unavailable

65

MTD PE-792018

Ring: Retaining

$

$

Currently unavailable

66

MTD PE-792040

Pin: Roll

$

$

Currently unavailable

67

MTD PE-780001

Washer: Thrust

$

$

Not available

68

MTD PE-774643

Axle (15-1/4" Long)

$

$

Currently unavailable

69

MTD PE-774642

Axle (13-3/8" Long)

$

$

Currently unavailable

70

MTD PE-792035

Ring: Retaining
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

71

MTD PE-792074

Plug: Hex Hd.: 9/16-18 Thread

$

$

Not available

72

MTD PE-786066

Spacer

$

$

Currently unavailable

73

MTD PE-786086

Bracket: Brake Lever

$

$

Currently unavailable
