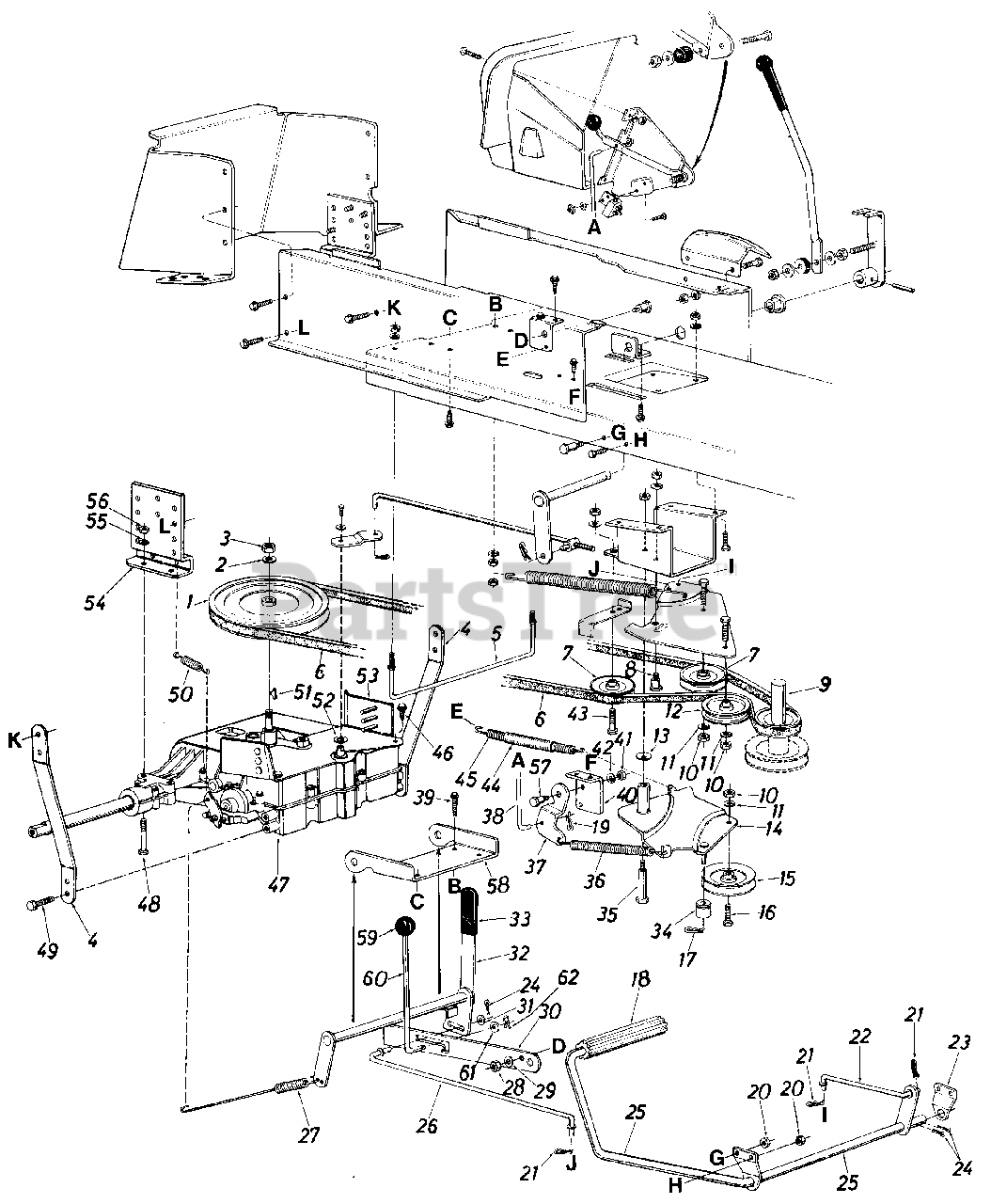

13735-7 - MTD Lawn Tractor (1987) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 756-0341

8" "V"-Pulley

Note: (Transaxle)

$

$

Not available

2

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

3

MTD 712-0922

Hex Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

4

MTD 14066

Transaxle Brace

$

$

Currently unavailable

5

MTD 747-0322

Belt Guard

$

$

Not available

6

MTD 754-0248

"V"-Belt
(Superseded to 954-0248)

$74.99

$

Usually ships in 3-6 days

0

7

MTD 756-0116

"V"-Belt Idler Pulley .38" I.D. x 3-1/16" O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

8

MTD 738-0155

Shoulder Bolt .435" Dia. x .160 (5/16-18)
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 756-0342

Two Step Engine Pulley 3.10" & 5.56" Dia.

$

$

Not available

10

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

11

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

12

MTD 756-0225

Flat Idler Pulley 2.75" O.D.

$

$

Not available

13

MTD 736-0105

Belleville Wash. .400" I.D. x .88" O.D. x .063

$4.49

$

In Stock, Qty 20+

0

14

MTD 14076

Idler Bracket Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

15

MTD 756-0293

4" "V"-Idler Pulley
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

16

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

17

MTD 714-0104

Hairpin Cotter 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

18

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

19

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

21

MTD 714-0507

Hairpin Cotter 3132" Dia. x 3/4 " Lg

$4.49

$

In Stock, only 2 left!

0

22

MTD 747-0318

Brake Clutch Rod (4.60" Lg.)

$

$

Not available

23

MTD 13859

Clutch Rod Bearing Brkt.

$

$

Not available

24

MTD 714-0474

Cotter Pin 1/8" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 14

0

25

MTD 14040

Clutch Brake Pedal Ass'y.

$

$

Not available

26

MTD 747-0319

Brake Cam Rod (13.60" Lg.)

$

$

Not available

27

MTD 732-0381

Extension Spring .59" O.D. x.93" Lg.

$

$

Not available

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 13832

Parking Brake Cam

$

$

Not available

31

MTD 736-0101

Fl-Wash. .406" I.D. x 1.00" O.D. x .030 Thk.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

32

MTD 14073

Hand Brake Lever Ass'y.

$

$

Currently unavailable

33

MTD 720-0189

Grip Flat Bar 1-1/4" Wide

$

$

Not available

34

MTD 748-0278

Spacer
(Superseded to 948-0278)

$11.99

$

In Stock, Qty 5

0

35

MTD 738-0129

Shoulder Bolt .496" Dia. x 2.00" Lg. (3/8-16)

$11.99

$

In Stock, only 1 left!

0

36

MTD 732-0478

Extension Spring .75" O.D. x 6.12" Lg.
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 12

0

37

MTD 13887

Deck Control Brkt.
(Superseded to 13887A)

$

$

Not available

38

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

39

MTD 710-0778

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, only 2 left!

0

40

MTD 13833

Parking Brake Cam Mtg. Brkt.

$

$

Not available

41

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

44

MTD 731-0483

Convoluted Conduit .50" I.D. x 4.0" Lg.
(Superseded to 731-0757-4)

$15.99

$

In Stock, only 2 left!

0

45

MTD 732-0308

Ext. Spring .50" O.D. x 6.37" Lg.
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

46

MTD 710-0726

Hex Wash. Hd. AB Tap Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

47

Transaxle

Note: (See Breakdown)

$

$

Not available

48

MTD 710-0378

Hex Bolt 5/16-18 x 2.50" Lg.

$4.99

$

In Stock, only 4 left!

0

49

MTD 710-0726

Hex Wash. Hd. AB Tap Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

50

MTD 732-0433

Extension Spring .50" O.D. x 2.75" Lg.

$

$

Not available

51

MTD 714-0129

Hi-Pro Key 3132" x 518" Dia.
(Superseded to 914-0129)

$

$

Not available

52

MTD 717-0234

Special Wash. 1.00" O.D. (Hdn.)

$

$

Not available

53

MTD 14193

Transaxle Belt Keeper Ass'y.

$

$

Currently unavailable

54

MTD 14067

Transaxle Support Bracket

$

$

Currently unavailable

55

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

57

MTD 738-0155

Shoulder Bolt .437" Dia. x .162" Lg. (5/16-18)
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 13822

Idler Mtg. Brkt.

$

$

Not available

59

MTD 720-0166

Ball Knob

$

$

Not available

60

MTD 747-0300

Parking Brake Link

$

$

Currently unavailable

61

MTD 736-0101

Fl-Wash.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

62

MTD 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0
