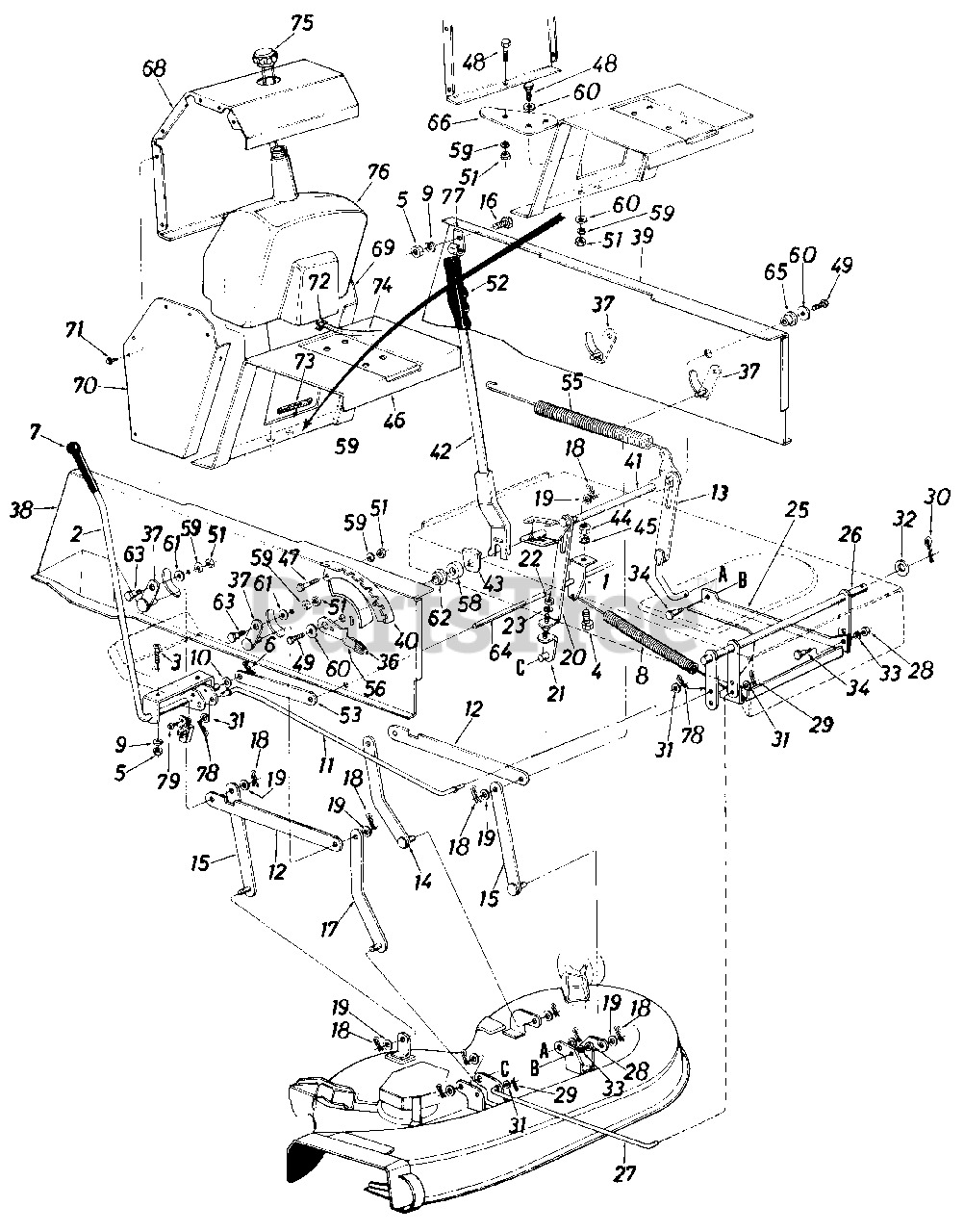

13705S - MTD Lawn Tractor (1985) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 16181

Spring Hanger Bracket

$

$

Currently unavailable

2

MTD 16212

Deck Engagement Lever Ass'y.

$

$

Currently unavailable

3

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75' Lg.

$4.99

$

In Stock, only 2 left!

0

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 13

0

7

MTD 720-0143

Grip

$

$

Not available

8

MTD 732-0410

Ext. Spring .99" O.D. x 13.25" Lg.

$

$

Not available

9

MTD 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-0272

Fl-Wash 10' I.D. x 1.0" OD

$4.99

$

In Stock, Qty 20+

0

11

MTD 747-0491

Drive Deck Control Rod

$

$

Currently unavailable

12

MTD 09735

Connecting Rod 3/16 x 1 x 1 2.5

$

$

Not available

13

MTD 16178

Deck Lift Link Ass'y.

$

$

Currently unavailable

14

MTD 16209

Deck Hanger Link Ass'y. Rear L.H.

$

$

Currently unavailable

15

MTD 16216

Deck Hanger Link Ass'y.

$

$

Not available

16

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

MTD 16345

Deck Hanger Link Ass'y. Front R.H.

$

$

Currently unavailable

18

MTD 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

19

MTD 736-0192

Fl-Wash. .531 I.D. x .93" O.D.

$4.49

$

In Stock, Qty 18

0

20

MTD 16063

Adj. Link Deck Lifting
(Superseded to 14802A-0637)

$

$

Not available

21

MTD 16342

Adj. Lower Link Ass'y.

$

$

Not available

22

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

23

MTD 736-0169

L-Wash. 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

25

MTD 16214

Diagonal Brace

$

$

Not available

26

MTD 16234

Stabilizer Shaft Ass'y.

$

$

Not available

27

MTD 711-0777

Stabilizer Rod

$

$

Currently unavailable

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

29

MTD 714-0104

Inter. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

30

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0117

Fl-Wash. .385" I.D. x .620" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

32

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

33

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

34

MTD 738-0258

Shoulder Bolt 3/8-16
(Superseded to 938-0258)

$

$

Not available

36

MTD 08540

Knob Height Adj.

$

$

Not available

37

MTD 09721

Pivot Link Ass'y.

$

$

Not available

38

MTD 14602

Side Panel Upper Frame R.H.
(Superseded to 14602G-0637)

$

$

Not available

39

MTD 14603

Side Panel Upper Frame L.H.

$

$

Not available

40

MTD 14633

Index Brk't.

Note: (Deck Lift)

$

$

Currently unavailable

41

MTD 14641

Lift Shaft Ass'y.

Variations

MTD 14641-0637

No Longer Available SHAFT-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 14645

Lift Handle Brk't. Ass'y.

$

$

Currently unavailable

43

MTD 14654

Retainer Wash. Lift Handle

$

$

Currently unavailable

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

46

MTD 16223

Hitch Plate

$

$

Currently unavailable

47

UNKNOWN

$

$

Not available

48

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg. Grade 5

$3.99

$

In Stock, Qty 20+

0

49

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

53

MTD 16369

Link 1.0" x 7.5" x .19

$

$

Currently unavailable

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

55

MTD 732-0307

Ext. Spring .99" Dia. x 1 1.00" Lg.
(Superseded to 932-0307A)

$

$

Not available

56

MTD 732-0412

Deck Lift Down Stop
(Superseded to 983-0003)

$

$

Not available

58

MTD 735-0216

Rubber Wash. 1-1/2" O.D. x .63" I.D. x .6 Lg.

$

$

Not available

59

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

61

MTD 736-0264

Fl-Wash. .344" I.D. x .62" O.D. x .063

$6.99

$

In Stock, only 1 left!

0

62

MTD 736-0341

Flange Wash. .628" I.D. x 1.25" O.D.
(Superseded to 736-0341B)

$

$

Not available

63

MTD 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

64

MTD 738-0526

Running Board Rod

$

$

Not available

65

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

66

MTD 16315

Hitch Bar

$

$

Not available

68

MTD 16238

Gas Tank Housing Main Panel

$

$

Not available

69

MTD 16239

Side Panel L.H. Gas Tank

$

$

Not available

70

MTD 16240

Side Panel R.H. Gas Tank

$

$

Not available

71

MTD 710-0351

Truss Mach. B-Tapp Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 726-0207

Hose Clamp .406" Dia.

$

$

Not available

73

MTD 731-0511

Trim Strip 5" Lg.

$3.99

$

Usually ships in 3-6 days

0

74

MTD 751-0173

Gas Line 44" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

75

MTD 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 9

0

76

MTD 751-0403

Gas Tank

$

$

Not available

77

MTD 726-0175

Hose Clamp

$

$

Not available

78

MTD 714-0504

Cotter Pin 3/32" Dia. x .75" Lg.

$

$

Currently unavailable

79

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0
