137 - Husqvarna Chainsaw (2009-03) Intake and Muffler and Crankshaft Parts Diagram

Chainsaw

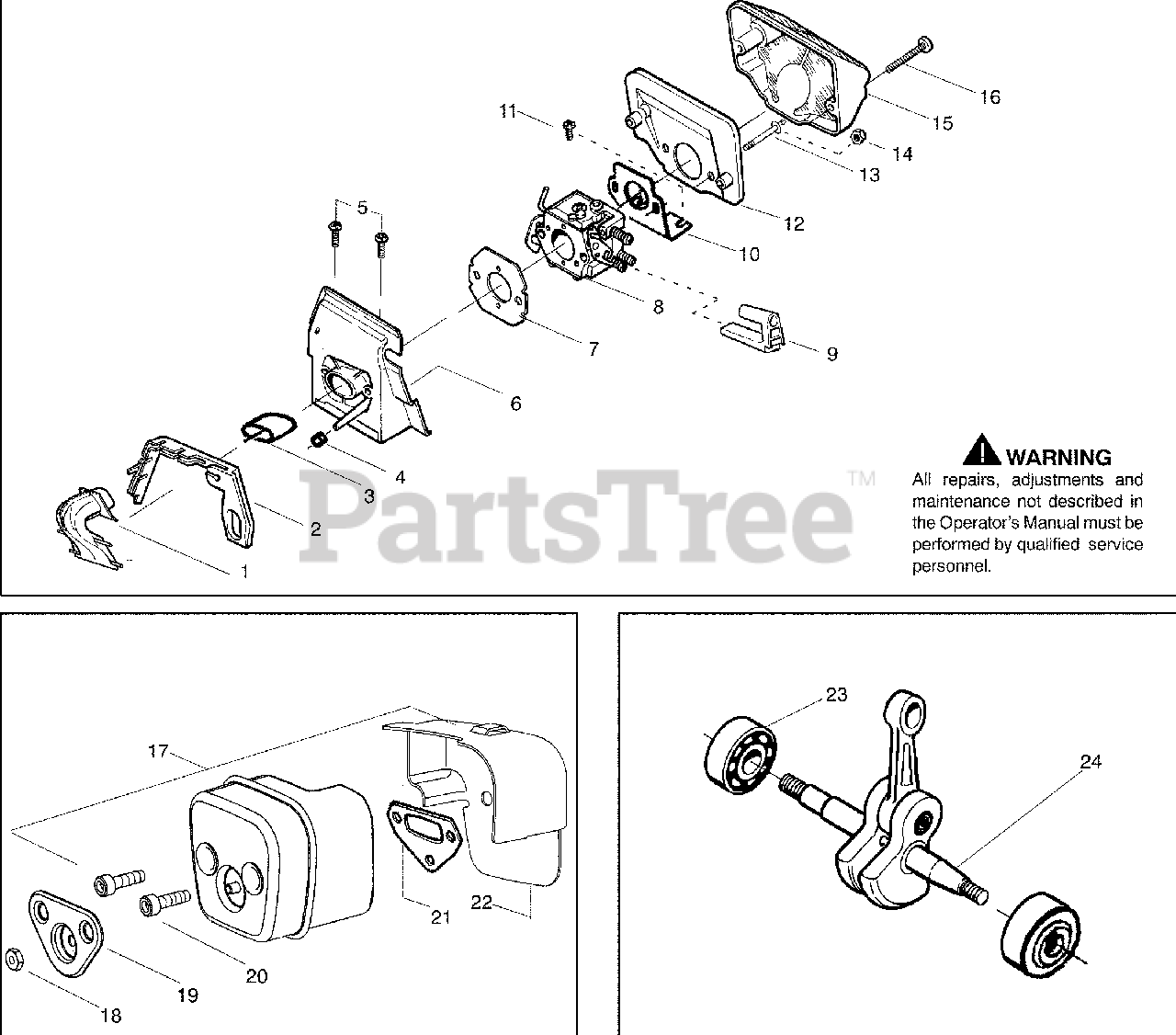

Intake and Muffler and Crankshaft Parts Diagram

  • Title

1

Husqvarna 530029813

Assy--Turbo Air Cleaner

$

$

Not available

2

Husqvarna 530019203

Seal -- Turbo Clean

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530029814

Sleeve--Intake

$13.99

$

In Stock, Qty 11

0

4

Husqvarna 530053435

Seal--Impulse

$4.99

$

In Stock, Qty 9

0

5

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 17

0

6

Husqvarna 530037465

Adapter -- Carb.

$

$

Not available

7

Husqvarna 530019172

Gasket--Carburetor

$6.49

$

In Stock, only 4 left!

0

8

Carburetor

$

$

Not available

Husqvarna 530071987

W--29

$113.99

$

In Stock, only 1 left!

0

Husqvarna 545013502

WT--834

$

$

Not available

9

Husqvarna 530035587

Grommet--Final

$4.99

$

In Stock, Qty 6

0

10

Husqvarna 530047767

Plate -- Support

$

$

Not available

11

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

12

Husqvarna 530036582

Air Filter -- Bottom

$

$

Not available

13

Husqvarna 530015968

Stud -- Carb.

$

$

Not available

14

Husqvarna 530016008

Nut

$3.49

$

In Stock, only 3 left!

0

15

Husqvarna 530029811

Air--Filter -- Top

$

$

Not available

16

Husqvarna 530015899

Screw

$6.49

$

In Stock, Qty 11

0

17

Husqvarna 545006044

Kit--Muffler

Note: (Includes 20,21 & 22)

$

$

Not available

18

Husqvarna 530016359

Nut--Brass
(Superseded to 574266401)

$4.99

$

In Stock, Qty 6

0

19

Husqvarna 530055600

Cover--Bolt

$

$

Not available

20

Husqvarna 530016338

Bolt--Muffler

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 530055128

Gasket--Muffler

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 530055171

Backplate--Muffler

$

$

Not available

23

Husqvarna 530056363

Assy. --Bearing and Seal

$18.99

$

In Stock, only 2 left!

0

24

Husqvarna 530029794

Assy--Crankshaft & Rod
(Superseded to 503920801)

$

$

Not available
