137-9216 - Toro Bucket Mount Kit for Z Master 3000, 5000 or 6000 Series Mower BUCKET MOUNT ASSEMBLY NO. 137-9216 Parts Diagram

Bucket Mount Kit for Z Master 3000, 5000 or 6000 Series Mower

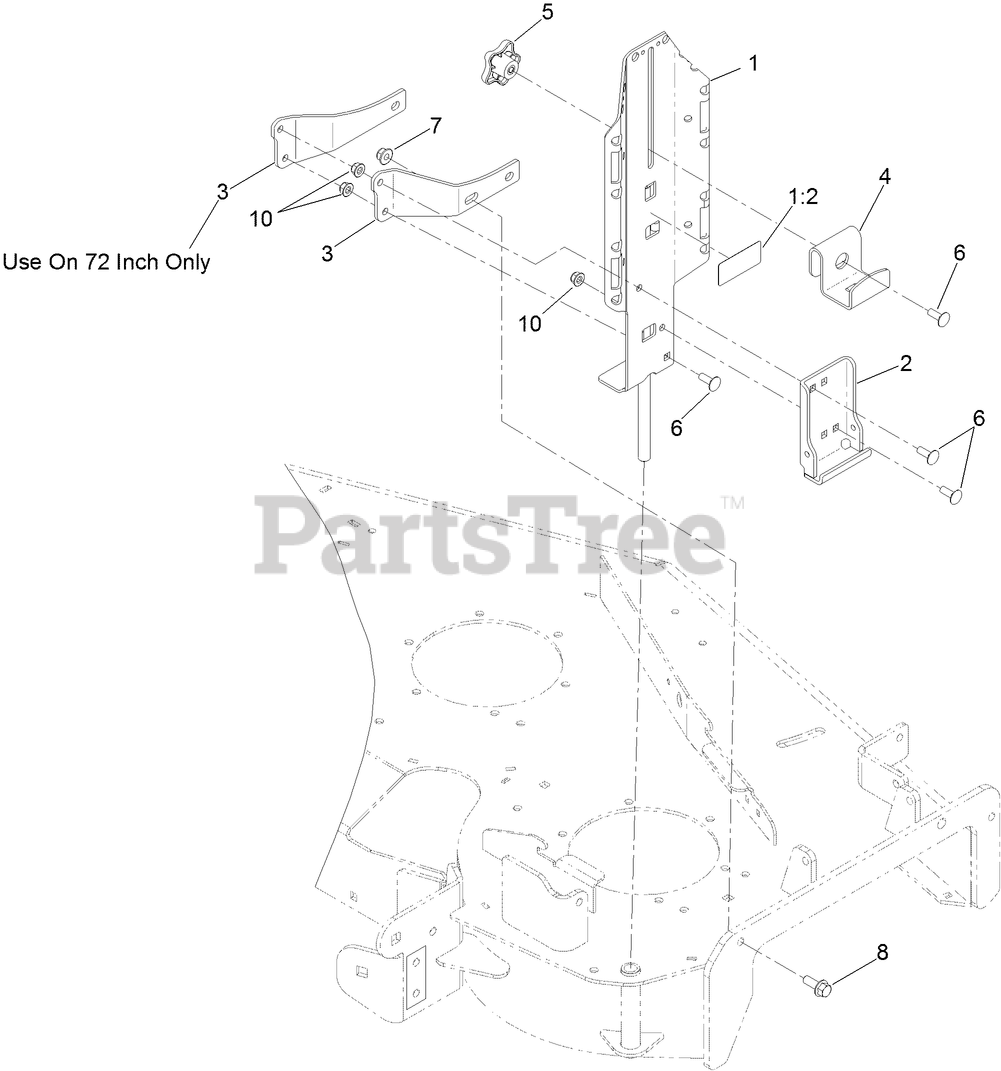

BUCKET MOUNT ASSEMBLY NO. 137-9216 Parts Diagram

  • Title
1

Toro 137-9232

BUCKET MOUNT HOLDER ASM

$144.99

$

Usually ships in 3-6 days

0

1:2

Toro 137-9231

DECAL-WEIGHT, MAXIMUM

$8.99

$

Usually ships in 3-6 days

0

2

Toro 136-5537-03

BRACKET-SUPPORT, HINGE

$45.99

$

Usually ships in 3-6 days

0

3

Toro 136-5548-03

STRAP-MOUNT

$23.99

$

Usually ships in 3-6 days

0

3

Toro 137-9224-03

STRAP-MOUNT (72IN DECK ONLY)

$16.99

$

Usually ships in 3-6 days

0

4

Toro 133-1897-03

BRACKET-TOP

$27.99

$

Usually ships in 3-6 days

0

5

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

6

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
