136P698-314 - Power Tech Lawn Tractor (1986) Three Speed Peerless Transaxle Parts Diagram

Lawn Tractor

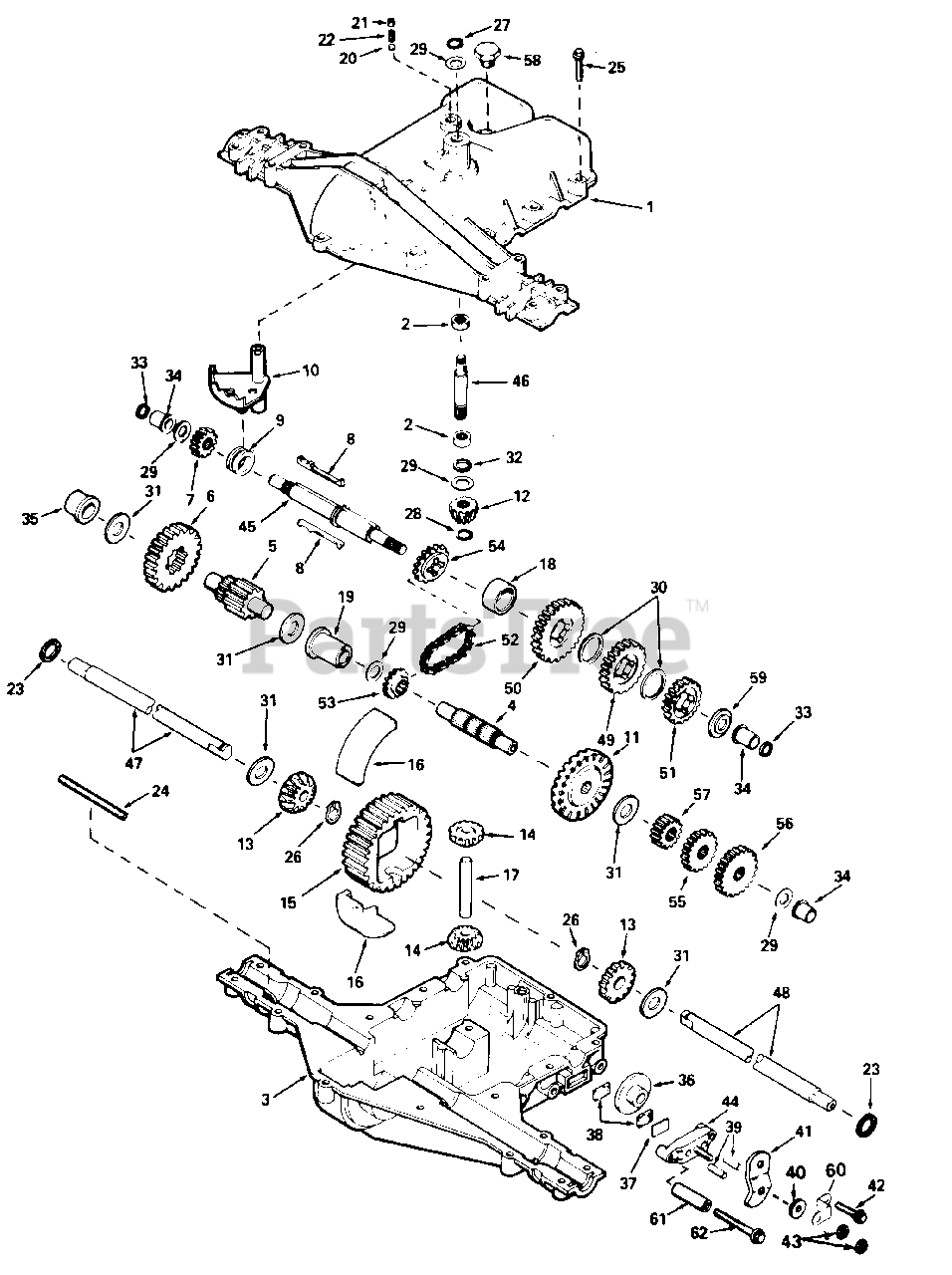

Three Speed Peerless Transaxle Parts Diagram

  • Title

1

MTD 772089

Cover, Transaxle

$

$

Currently unavailable

2

MTD 780086

Bearing, Needle

$12.99

$

In Stock, Qty 20+

0

3

MTD 770075

Case, Transaxle

$

$

Currently unavailable

4

MTD 776218

Shaft, Counter

$

$

Currently unavailable

5

MTD 776219

Shaft & Pinion Ass'y., Output

$

$

Not available

6

MTD 778139

Gear, Output

$42.99

$

Usually ships in 3-12 days

0

7

MTD 778136

Gear, Spur (15 Teeth)

$24.99

$

In Stock, only 1 left!

0

8

MTD 792108

Key

$

$

Currently unavailable

9

MTD 784216

Collar, Shifter

$14.99

$

In Stock, only 1 left!

0

10

MTD 784330

Rod & Fork Ass'y., Shift

$

$

Currently unavailable

11

MTD 778137A

Gear, Bevel (42 Teeth)
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

12

MTD 778113A

Bevel Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

13

MTD 778067

Gear, Bevel

$

$

Not available

14

MTD 778068

Gear, Bevel Pinion

$39.99

$

In Stock, Qty 6

0

15

MTD 778165

Gear, Ring

$61.99

$

In Stock, only 1 left!

0

16

MTD 786101

Block, Bearing

$

$

Not available

17

MTD 786040

Pin, Drive

$11.99

$

Usually ships in 3-12 days

0

18

MTD 786102

Spacer

$14.99

$

Usually ships in 3-12 days

0

19

MTD 780129

Bushing, Flanged

$

$

Currently unavailable

20

MTD 792077

Ball, Steel (5/16" Dia.)

$4.49

$

In Stock, only 4 left!

0

21

MTD 792078

Set Screw, 3/8-16 x 3/8

$4.49

$

In Stock, only 1 left!

0

22

MTD 792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

23

MTD 788061

Ring, Felt
(Superseded to TC-788061)

$4.49

$

In Stock, Qty 6

0

24

MTD 788062

Packing, Felt

$5.49

$

In Stock, only 2 left!

0

25

MTD 792073

Screw, Flanged Hex Hd. Thd. Forming, 1/4-20 x 1-1/4

$1.99

$

Usually ships in 3-12 days

0

26

MTD 792018

Ring, Retainer

$

$

Currently unavailable

27

MTD 792035

Ring, Retainer
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

28

MTD 788040

Ring, Retainer

$4.49

$

In Stock, only 4 left!

0

29

MTD 780072

Washer, Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

MTD 780108

Washer, Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

31

MTD 780001

Washer

$4.49

$

In Stock, only 4 left!

0

32

MTD 792001

"O" Ring
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 9

0

33

MTD 788051

Seal, Square Cut

$

$

Currently unavailable

34

MTD 780105A

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

35

MTD 780118A

Bushing, Flanged

$

$

Currently unavailable

36

MTD 790003

Disk, Brake
(Superseded to TC-790003)

$20.99

$

Usually ships in 3-12 days

0

37

MTD 790007

Plate, Brake Pad
(Superseded to TC-790007)

$5.99

$

Usually ships in 3-12 days

0

38

MTD 790006

Pad, Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

39

MTD 786026

Pin, Dowel
(Superseded to TC-786026)

$4.49

$

Usually ships in 3-12 days

0

40

MTD 792076

Washer, Flat

$

$

Currently unavailable

41

MTD 790004

Lever, Brake

$

$

Currently unavailable

42

MTD 792073

Screw, Flanged Hex Hd. Thd. Forming, 1/4-20 x 1-1/4

$1.99

$

Usually ships in 3-12 days

0

43

MTD 792075

Nut, Lock, 5/16-24

$

$

Not available

44

MTD 790025

Holder, Brake Pad

$17.99

$

Usually ships in 3-12 days

0

45

MTD 776220

Shaft, Brake

$

$

Currently unavailable

46

MTD 776140

Shaft, Input

$

$

Currently unavailable

47

MTD 774602

Axle (12-1/2" Lg.)

$

$

Currently unavailable

48

MTD 774603

Axle (15-3/8" Lg.)

$

$

Currently unavailable

49

MTD 778123A

Gear, Spur (25 Teeth)
(Superseded to TC-778123A)

$48.99

$

In Stock, only 3 left!

0

50

MTD 778125

Gear, Spur (35 Teeth)

$41.99

$

Usually ships in 3-12 days

0

51

MTD 778121A

Gear, Spur (20 Teeth)

$

$

Currently unavailable

52

MTD 786081

Chain, Roller (No. 41 Chain, 24 Links)

$22.99

$

Usually ships in 3-12 days

0

53

MTD 786082

Sprocket (9 Teeth)

$15.99

$

Usually ships in 3-12 days

0

54

MTD 786107

Sprocket (18 Teeth)

$

$

Currently unavailable

55

MTD 778127A

Gear, Spur (25 Teeth)

$53.99

$

In Stock, only 3 left!

0

56

MTD 778129A

Gear, Spur (30 Teeth)

$37.99

$

In Stock, only 1 left!

0

57

MTD 778151

Gear, Spur (15 Teeth)

$14.99

$

Usually ships in 3-12 days

0

58

MTD 792074

Plug, Hex Hd., 9/16-18 Thd.

$22.99

$

Usually ships in 3-12 days

0

59

MTD 780109

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

60

MTD 786086

Bracket

$6.49

$

Usually ships in 3-12 days

0

61

MTD 786066

Spacer

$4.49

$

In Stock, only 2 left!

0

62

MTD 792085

Screw, Flanged Hex Hd. Thd. Forming, 1/4-20 x 2-1/4

$

$

Currently unavailable
