136O619G205 - Ranch King Lawn Tractor (1996) Hood Assembly Parts Diagram

Lawn Tractor

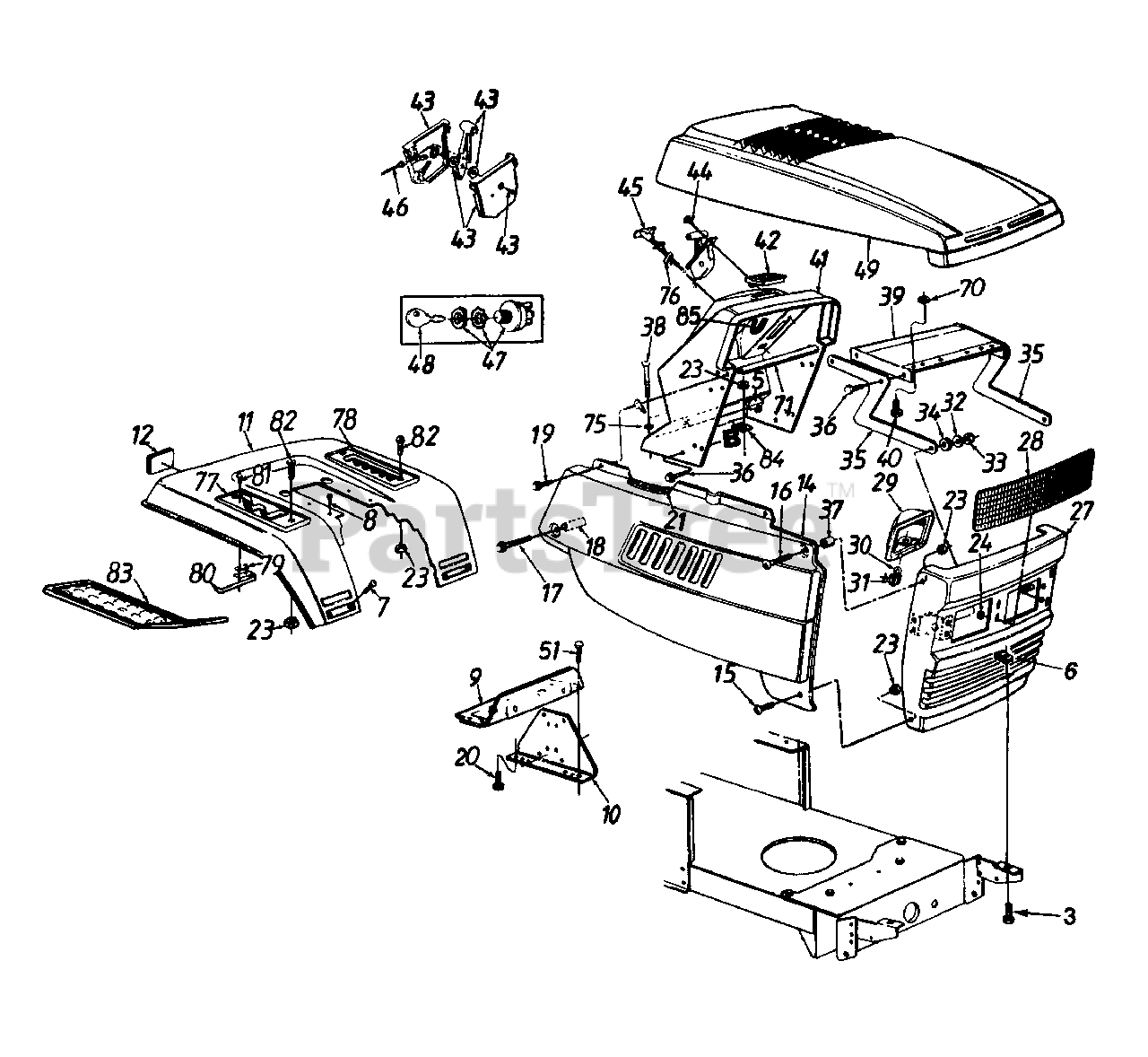

Hood Assembly Parts Diagram

  • Title

3

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

6

MTD 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

7

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-0726

Hex Wash. Hd. Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

9

MTD 17633A

Support Bracket

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 17300D

Dash Support Bracket

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 783-0570

Rear Fender

$

$

Currently unavailable

12

MTD 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

14

MTD 16725

Side Panel - R.H.

Variations

MTD 16725-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16725-0483

No Longer Available PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16725-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 16725-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 16725-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16725-0640

PANEL-SIDE RH - CO-OP GREEN (0640)

$

$

Not available

MTD 16725-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 16725-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 16725-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 16725-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16725-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 16725-0671

No Longer Available - BEAVER GREEN (0671)

$

$

Not available

MTD 16725-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16725-0686

No Longer Available PANEL-SIDE - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16725-0688

No Longer Available PANEL-SIDE - SPRING GREEN (0688)

$

$

Not available

MTD 16725-0689

No Longer Available PANEL-SIDE - POLO GREEN (0689)

$

$

Not available

MTD 16725-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

MTD 16725-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

MTD 17309A

Side Panel - L.H.
(Superseded to 17309B)

Variations

MTD 17309A-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17309A-0499

No Longer Available PANEL-SI - CUB BEIGE (0499)

$

$

Not available

MTD 17309A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17309A-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17309A-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17309A-0660

No Longer Available PANEL-SIDE - TEAL (0660)

$

$

Not available

MTD 17309A-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 17309A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17309A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17309A-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17309A-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17309A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17309A-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

15

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

16

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

17

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.99

$

In Stock, Qty 13

0

18

MTD 750-0768

Spacer .26" I.D. x 1.32"

$

$

Not available

19

MTD 710-0642

Hex Rolling Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

21

MTD 731-0511-18

Trim Strip - 18" Lg.

$29.99

$

Usually ships in 3-6 days

0

23

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

24

MTD 726-0201

Speed Nut 5/16" Thd.

$6.99

$

Usually ships in 3-6 days

0

27

MTD 17410

Grille Ass'y.

Variations

MTD 17410-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17410-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17410-0629

No Longer Available GRILLE ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 17410-0638

No Longer Available GRILLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17410-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17410-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17410-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17410-0667

No Longer Available GRILLE ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17410-0668

No Longer Available GRILLE ASM - MOSS GREEN (0668)

$

$

Not available

MTD 17410-0671

No Longer Available GRILLE ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 17410-0674

No Longer Available GRILLE ASM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17410-0677

No Longer Available GRILLE ASM - GRASS GREEN (0677)

$

$

Not available

MTD 17410-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

MTD 17410-0691

No Longer Available GRILLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

28

MTD 731-1044

Headlight Lens
(Superseded to 931-1044)

$

$

Not available

29

MTD 731-0705

Headlamp Housing
(Superseded to 931-0705)

$

$

Not available

30

MTD 725-0963

Headlamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

31

MTD 725-1650

Twist Lock Lamp Socket
(Superseded to 925-1650)

$

$

Not available

32

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

34

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

35

MTD 783-0190

Hood Hinge

Variations

MTD 783-0190-0637

HINGE-HOOD - POWDER BLACK (0637)

$

$

Not available

MTD 783-0190-0638

HINGE-HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0190-0662

HINGE-HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0190-0665

HINGE-HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0190-0667

HINGE-HOOD - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

36

MTD 710-0599

Hex Wash. Hd. B-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 750-0218

Spacer .262" I.D. x .31"
(Superseded to 950-0218)

$

$

Not available

38

MTD 710-0111

Carriage Bolt 1/4-20 x 1.25" Lg.

$3.99

$

Usually ships in 3-6 days

0

39

MTD 16903A

Hood Plate

Variations

MTD 16903A-0637

Hood Plate - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-1005

Hex Wash Hd. Tap Scr. 1/4 x .5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

41

MTD 731-1048B

Dash
(Superseded to 931-1048B)

$158.99

$

Usually ships in 3-6 days

0

42

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

43

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

44

MTD 710-0919

Mach. Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 7

0

45

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

46

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

47

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

48

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

49

MTD 731-1704

Hood

$

$

Not available

51

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

70

MTD 736-3010

Fl-Wash. .406" I.D. x .812" O.D.

$4.99

$

In Stock, only 2 left!

0

71

MTD 749-0814

Grille Support Tube

$

$

Not available

75

MTD 726-0233

Retaining Nut

$4.49

$

In Stock, only 3 left!

0

76

MTD 17782

Choke Retainer

$

$

Not available

77

MTD 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

$28.99

$

Usually ships in 3-6 days

0

78

MTD 731-1069

7-Speed Index Brkt.
(Superseded to 931-1746)

$

$

Not available

79

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

80

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

81

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 15

0

82

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

83

MTD 731-0909

Rubber Foot Pad - L.H.

$

$

Not available

MTD 731-0910

Rubber Foot Pad - R.H.
(Superseded to 735-0689A)

$

$

Not available

84

MTD 783-0013

Dash Fastening Tab

$

$

Not available

85

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

MTD 777-8568A

Chrome Headlight Label

Note: (Not Shown)

$

$

Not available
