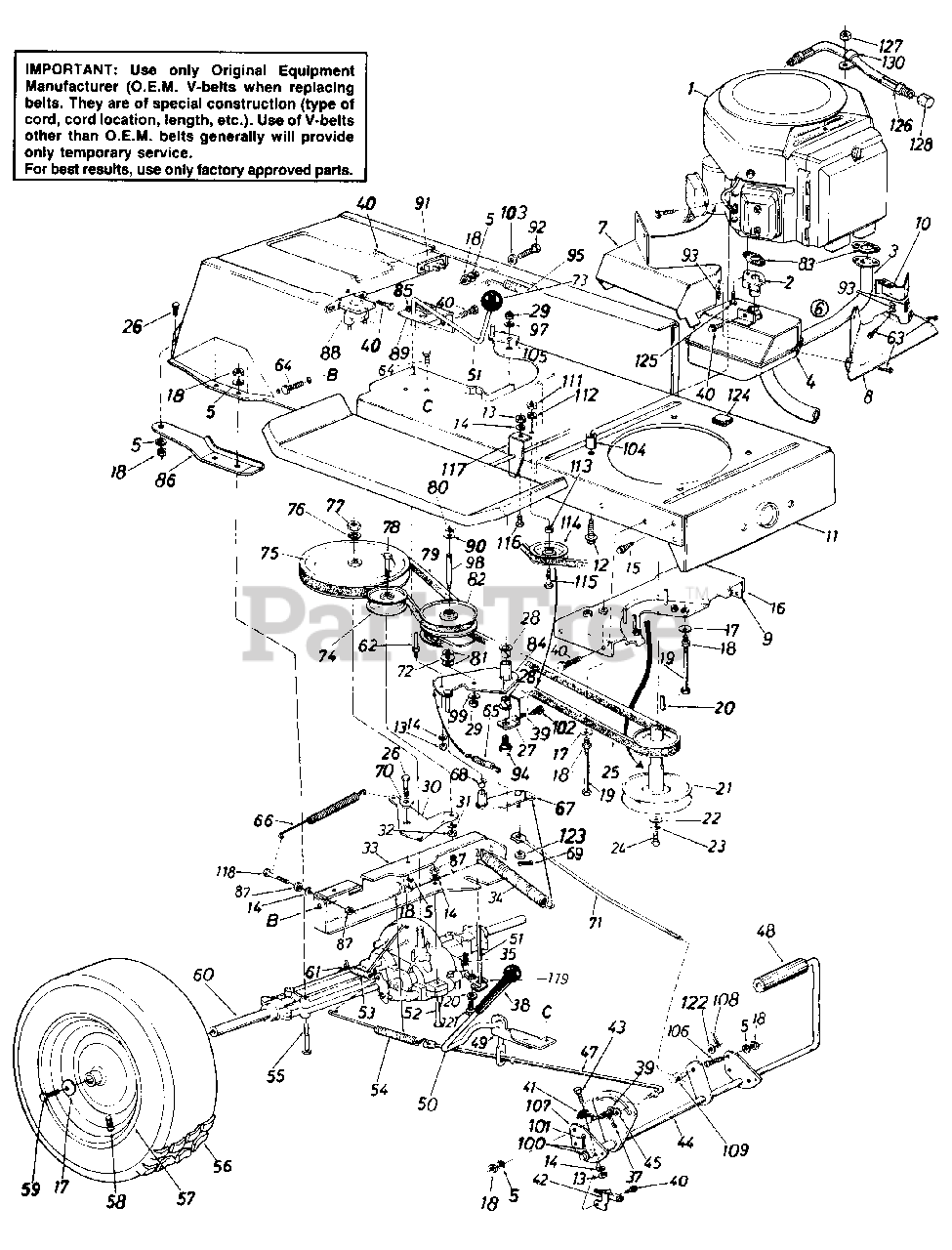

13685-9 - MTD Lawn Tractor (1989) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 751-0470

Inlet Tube Ass'y.

$

$

Not available

3

MTD 751-0471

Formed Tube Ass'y.

$

$

Currently unavailable

4

MTD 751-0472

Exhaust Muffler Sub Ass'y.

$

$

Not available

5

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 751-0469

Exhaust Muffler Comp.

$

$

Not available

7

MTD 16875

Muffler Heat Shield

$

$

Currently unavailable

8

MTD 16876A

Front Heat Shield

$

$

Not available

9

MTD 16371

Brake Cable Brk't.

$

$

Currently unavailable

10

MTD 16877

Front Heat Shield Ext.

$

$

Not available

11

MTD 15930B

Lower Frame Ass'y.

$

$

Not available

12

MTD 710-1035

Hex Wash. Hd. TT-Tap Scr. 3/8-16 Thd.

$10.99

$

Usually ships in 3-6 days

0

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 16219A

Belt Guard Brkt. Ass'y.

$

$

Currently unavailable

17

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0190

Hex Bolt 5/16-18 x 4.00"

$7.99

$

Usually ships in 3-6 days

0

20

MTD 714-0114

Sq. Key 1/4" x 1/4" X 2.00"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

21

MTD 756-0530

Engine Pulley

$

$

Not available

22

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

23

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

24

MTD 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

25

MTD 754-0280

Variable-Speed Belt
(Superseded to 954-0280A)

$45.99

$

Usually ships in 3-6 days

0

26

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

MTD 16553

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

MTD 741-0295

Flanged Nyliner Brg. 518" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

29

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

MTD 15891B

Idler Bracket
(Superseded to 15891C-0637)

$

$

Not available

31

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

MTD 15945E

Transaxle Support Brkt.
(Superseded to 15945E-0637)

Variations

MTD 15945E-0637

BRACKET-TRANS SUP - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 732-0459

Ext. Spring .94" O.D. x 6.7
(Superseded to 732-0459C)

$18.99

$

In Stock, only 1 left!

0

35

MTD 714-0149B

Inter. Cotter Pin

$4.49

$

In Stock, Qty 18

0

36

MTD 736-0204

Fl-Wash. .34" I.D. x .62" O.D. x .033

$4.49

$

In Stock, Qty 6

0

37

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

38

MTD 720-0223

Grip Black

$14.99

$

In Stock, Qty 7

0

39

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

40

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 X .50" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 732-0582

Switch Actuator

$

$

Not available

42

MTD 725-0577

Safety Switch

$

$

Not available

43

MTD 710-0597

Hex Bolt 1/4-20 x 1.0" Lg.

$3.99

$

In Stock, Qty 14

0

44

MTD 16235A

Clutch & Brake Pedal Ass'y.

$

$

Currently unavailable

45

MTD 736-0117

Fl-Wash.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

MTD 710-0402

Hex Bolt 5/16-18 x 4.5"

$

$

Not available

47

MTD 747-0519

Brake Rod 20.9" Lg.

$

$

Not available

48

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

49

MTD 15889B

Brake Lever Bracket

$

$

Not available

50

MTD 15888

Hill Holder Brake Handle

$

$

Currently unavailable

51

MTD 16430

Shift Lever Ass'y.

$

$

Not available

52

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

53

MTD 732-0264

Ext. Spring .38" O.D. x 2.5"
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

54

MTD 732-0413

Ext. Spring .59" O.D. x 7.08"
(Superseded to 932-0413)

$12.99

$

In Stock, only 4 left!

0

55

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

56

MTD 734-0817

Wheel Ass'y. Comp.

Variations

MTD 734-0817-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 734-0817-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-0817-0915

No Longer Available WHEEL ASM - Duro Gray (0915)

$

$

Not available

MTD 734-0817-0931

No Longer Available WHL ASM 1 - Carlisle Beige (0931)

$

$

Not available

MTD 734-0817-0932

No Longer Available WHEEL ASM - Dico Beige (0932)

$

$

Not available

MTD 734-0817-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

MTD 734-0817-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$

$

MTD 734-0448

Tire Only

Variations

MTD 734-0448-0901

No Longer Available TIRE 18 X - Carlisle (0901)

$

$

Not available

MTD 734-0448-0902

No Longer Available - Dico (0902)

$

$

Not available

MTD 734-0448-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

57

MTD 734-0603A

Wheel Rim Only
(Superseded to 634-04369)

$134.99

$

Usually ships in 3-6 days

0

58

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Service Only)

$4.49

$

In Stock, Qty 20+

0

59

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

60

MTD 717-1050

Transaxle Complete R.H.

$

$

Not available

61

MTD 732-0454

Brake Return Spring Anchor
(Superseded to 932-0722A)

$12.99

$

In Stock, only 4 left!

0

62

MTD 711-0768

Belt Guard Pin 1/4-20 Thd.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

63

MTD 710-0224

Hex AB-Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

64

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

65

MTD 732-0568

Ext. Spring
(Superseded to 932-0568)

$

$

Not available

66

MTD 732-0384

Ext. Spring .62" O.D. x 6.12"
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

67

MTD 16554A

Variable Speed Torque Brkt. Ass'y.
(Superseded to 16554A-0637)

Variations

MTD 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

68

MTD 741-0419

Flanged Bearing

$

$

Not available

69

MTD 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

70

MTD 748-0234

Shoulder Spacer .500" Dia. x.27" Lg.

$4.49

$

In Stock, Qty 20+

0

71

MTD 747-0530

Speed Control Link
(Superseded to 747-0530A)

$14.99

$

Usually ships in 3-6 days

0

72

MTD 741-0405

Truss Bearing .56 Dia. x 1.25"
(Superseded to 941-0405)

$

$

Not available

73

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

74

MTD 756-0437

Fl-Idler Pulley 3.25" x .75"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

MTD 756-0374

1/2" "V"-Pulley 8.0" O.D. x .501 " I.D.

$

$

Not available

76

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

77

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

78

MTD 710-0539

Hex Bolt 3/8-24 x .75" Lg.

$4.99

$

In Stock, Qty 11

0

79

MTD 754-0281

Variable Speed Belt
(Superseded to 954-0281)

$40.99

$

Usually ships in 3-6 days

0

80

MTD 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

81

MTD 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 12

0

82

MTD 717-0800

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

$245.99

$

In Stock, only 3 left!

0

83

MTD 721-0218

Gasket
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0

84

MTD 16354B

Variable Speed Brkt. Ass'y.

Variations

MTD 16354B-0637

Variable Speed Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

85

MTD 732-0525

Comp. Spring Clip

$10.99

$

In Stock, only 1 left!

0

86

MTD 14770

Transaxle Support Brkt. R.H.

$

$

Not available

MTD 14769A

Transaxle Support Brkt. L.H.

Note: (Not Shown)

$

$

Not available

87

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

88

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

89

MTD 16429A

Shift Lever Bracket

$

$

Not available

90

MTD 736-0414

Teflon Washer

$4.49

$

In Stock, only 4 left!

0

91

MTD 725-1382

Circuit Breaker

$

$

Not available

92

MTD 710-0959

Hex Bolt 5/16-18 x 1.50"

$7.49

$

Usually ships in 3-6 days

0

93

UNKNOWN

$

$

Not available

94

MTD 738-0755

Shld. Bolt 3/8-24 x 3.12" Lg.
(Superseded to 938-0755)

$14.99

$

Usually ships in 3-6 days

0

95

MTD 732-0307A

Ext. Spring .99" O.D. x 11.0"
(Superseded to 932-0307A)

$

$

Not available

97

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

MTD 738-0569

Shaft .56" Dia. x 3.875" Lg.
(Superseded to 938-0569)

$33.99

$

In Stock, only 1 left!

0

99

MTD 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 10

0

100

MTD 736-0256

Fl-Wash.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

102

MTD 710-0604

Hex Wash. Hd. Scr. 5/16-18 x.62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

103

MTD 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D.

$4.99

$

In Stock, Qty 20+

0

104

MTD 750-0748

Spacer 5/1 6" I.D.

$9.49

$

Usually ships in 3-6 days

0

105

MTD 16067

Belt Guard

$

$

Not available

106

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

107

MTD 15835A

Pedal Bracket

$

$

Not available

108

MTD 714-0507

Cotter Pin 3/32 x .75"

$4.49

$

In Stock, only 2 left!

0

109

MTD 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

111

MTD 712-0798

Hex Nut 3/8"-16 Thd.

$4.49

$

In Stock, only 2 left!

0

112

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

113

MTD 736-0280

Fl-Wash. .390" I.D. x 1.12"
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

114

MTD 756-0217

Fl-Idler w/Flanges 2.750
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

115

MTD 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

116

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

117

MTD 16181

Spring Hanger Bracket

$

$

Currently unavailable

118

MTD 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

119

MTD 16437A

Shift Lever Link Ass'y.

$

$

Not available

120

MTD 736-0270

Bell-Wash. .265 I.D. x .75 O.D.

$3.99

$

In Stock, Qty 20+

0

121

MTD 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

122

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

123

MTD 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

124

MTD 722-0155

Foam Strip

$

$

Not available

125

MTD 710-1037

Hex Bolt w/Washer

$

$

Currently unavailable

126

MTD 727-0434

Oil Drain

$

$

Not available

127

MTD 712-0342

Hex Jam Nut 318-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

128

MTD 737-0143

Cap Oil Drain

$

$

Not available

130

MTD 726-3009

Clamp

$

$

Not available
