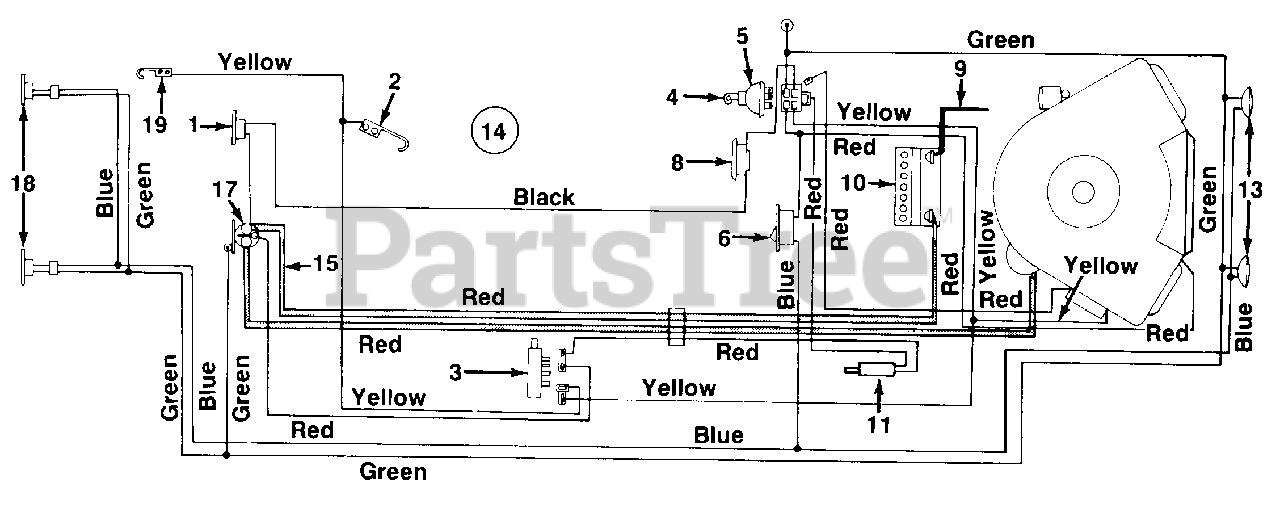

13685-9 - MTD Lawn Tractor (1989) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-1382

Circuit Breaker

$

$

Not available

2

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

$

$

Not available

3

MTD 725-0803B

Safety Switch Dpst.

$33.99

$

In Stock, only 1 left!

0

4

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

5

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

6

MTD 725-0634

Headlight Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

8

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

9

MTD 725-0994

Grounding Wire 14.0" Lg .
(Superseded to 629-0739)

$

$

Not available

10

MTD 725-0453A

12 Volt Battery

$

$

Not available

11

MTD 725-0577

Safety Switch

$

$

Not available

13

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

14

MTD 725-1372

Wire Harness

$

$

Not available

15

MTD 725-1080

Electric Wire 27.0" Lg.

$

$

Currently unavailable

17

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

18

MTD 725-1128

Taillight

$

$

Not available

19

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0
