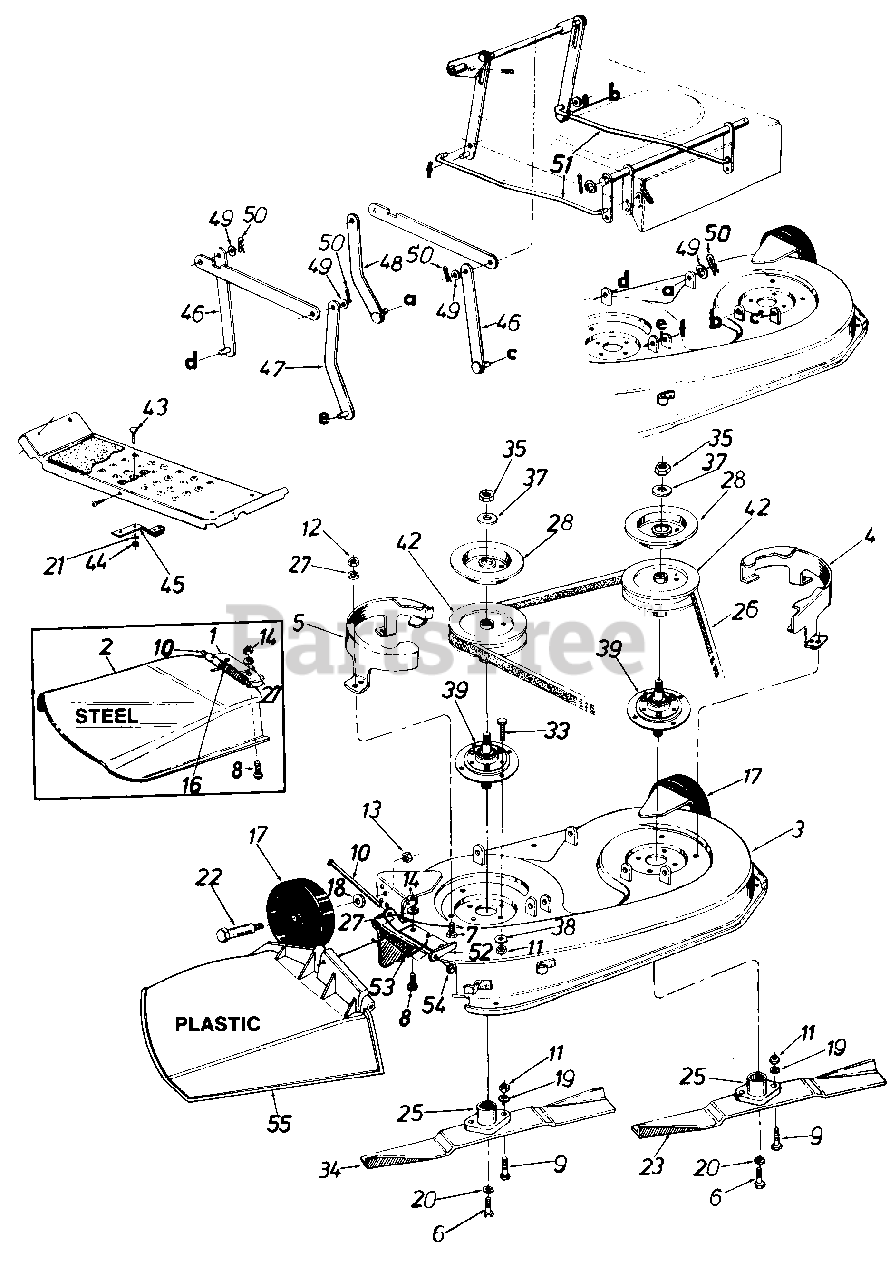

13685-9 - MTD Lawn Tractor (1989) 38" Parts Diagram

Lawn Tractor

38" Parts Diagram

  • Title
1

MTD 16521

Chute Bracket (Steel)

$

$

Not available

2

MTD 16566

Chute Deflector (Steel)
(Superseded to 753-0567)

$136.99

$

Usually ships in 3-6 days

0

3

MTD 16575A

38" Deep Deck Ass'y.
(Superseded to 753-04376)

$

$

Not available

MTD 801-6576

38" Deep Deck Ass'y. Comp.
(Superseded to 753-0694)

Note: (For Service Only)

$

$

Not available

4

MTD 16607

Belt Guard Deck L.H.

Variations

MTD 16607-0637

Belt Guard Deck-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 16608A

Belt Guard Deck R.H.

Variations

MTD 16608A-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-0152

Hex Bolt 3/8-24 x 1.00"
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0195

Hex Bolt 1/4-28 x .62"
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

8

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

11

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

12

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

13

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

16

MTD 732-0542

Torsion Spring
(Superseded to 932-0542)

$

$

Not available

17

MTD 734-0973

Deck Wheel 5"

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

21

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

MTD 742-0472

High-Lift Blade L.H.
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

25

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

MTD 754-0329

5L V-Belt
(Superseded to 954-0329A)

$52.99

$

In Stock, only 1 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 09322

Brake Disc

$

$

Not available

33

MTD 710-1013

Rib Neck Bolt 5/16-24 x 1.05" Lg.

$4.99

$

Usually ships in 3-6 days

0

34

MTD 742-0473

High-Lift Blade R.H.
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

35

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

37

MTD 736-0158

L-Wash. 518" I.D.

$4.49

$

In Stock, Qty 11

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

Note: (Incl. Ref. 33)

$128.99

$

In Stock, Qty 10

0

42

MTD 756-0486

51" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

43

MTD 710-0134

Carr. Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-0287

Hex Nut 1/4-20 Thd
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

MTD 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

46

MTD 14804

Link Deck Hanger Ass'y.

$

$

Not available

47

MTD 14800

Link Deck Hanger Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

48

MTD 15925

Link Deck Hanger Ass'y. L.H.

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 736-0160

Fl-Wash. .53" I.D. x 93" 0.D.

$4.49

$

In Stock, only 2 left!

0

50

MTD 714-0101

Inter. Cotter Pin .501 Dia.

$4.99

$

In Stock, only 2 left!

0

51

MTD 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

$

$

Not available

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y. Comp. (Plastic)
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0
