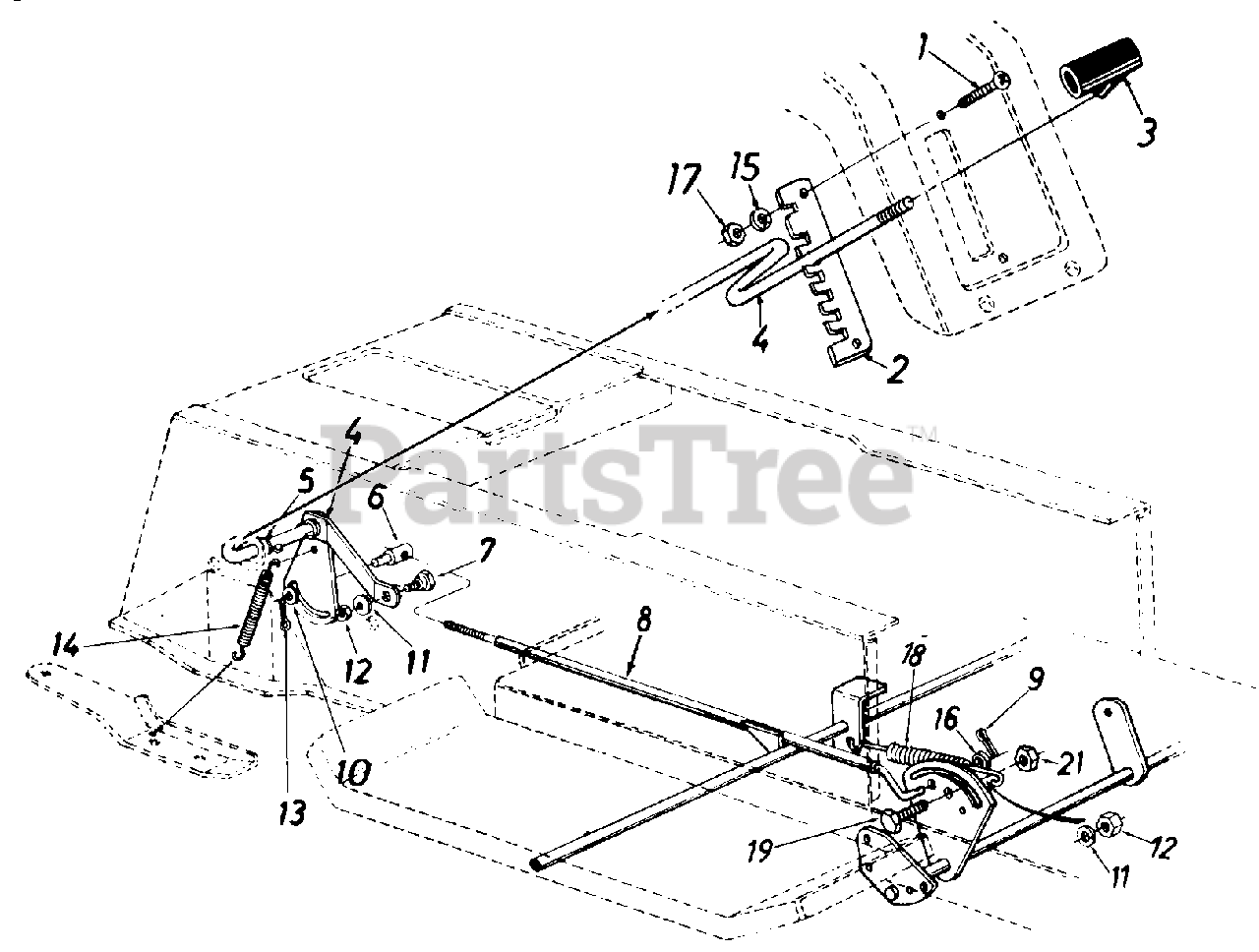

13665-8 - MTD Lawn Tractor (1988) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

2

MTD 17080

Speed Selector Plate

$

$

Currently unavailable

3

MTD 720-0209

Shift Knob

$21.99

$

In Stock, only 2 left!

0

4

MTD 17088

Speed Selector Cam Ass'y.

$

$

Currently unavailable

5

MTD 736-0192

Flat Washer .53" I.D. x .93"

$4.49

$

In Stock, Qty 18

0

6

MTD 711-0198

Ferrule 3/8-24 x .37" Dia.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

7

MTD 738-0155

Shoulder Bolt .435" Dia. x .160
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

8

MTD 16355

Speed Control Rod Ass'y.

$

$

Not available

9

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

10

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0507

Cotter Pin 3/32 Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

14

MTD 732-0303

Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

15

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 736-0226

Fl-Wash. .47" I.D. x .88" O.D.
(Superseded to 936-0226)

$3.99

$

Usually ships in 3-6 days

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

18

MTD 732-0470

Ext. Spring 4.75" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 6

0

19

MTD 710-0376

Hex Cap Bolt 5/16-18 x 1" Lg. (Grade 5)

$3.99

$

In Stock, Qty 5

0

21

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0
