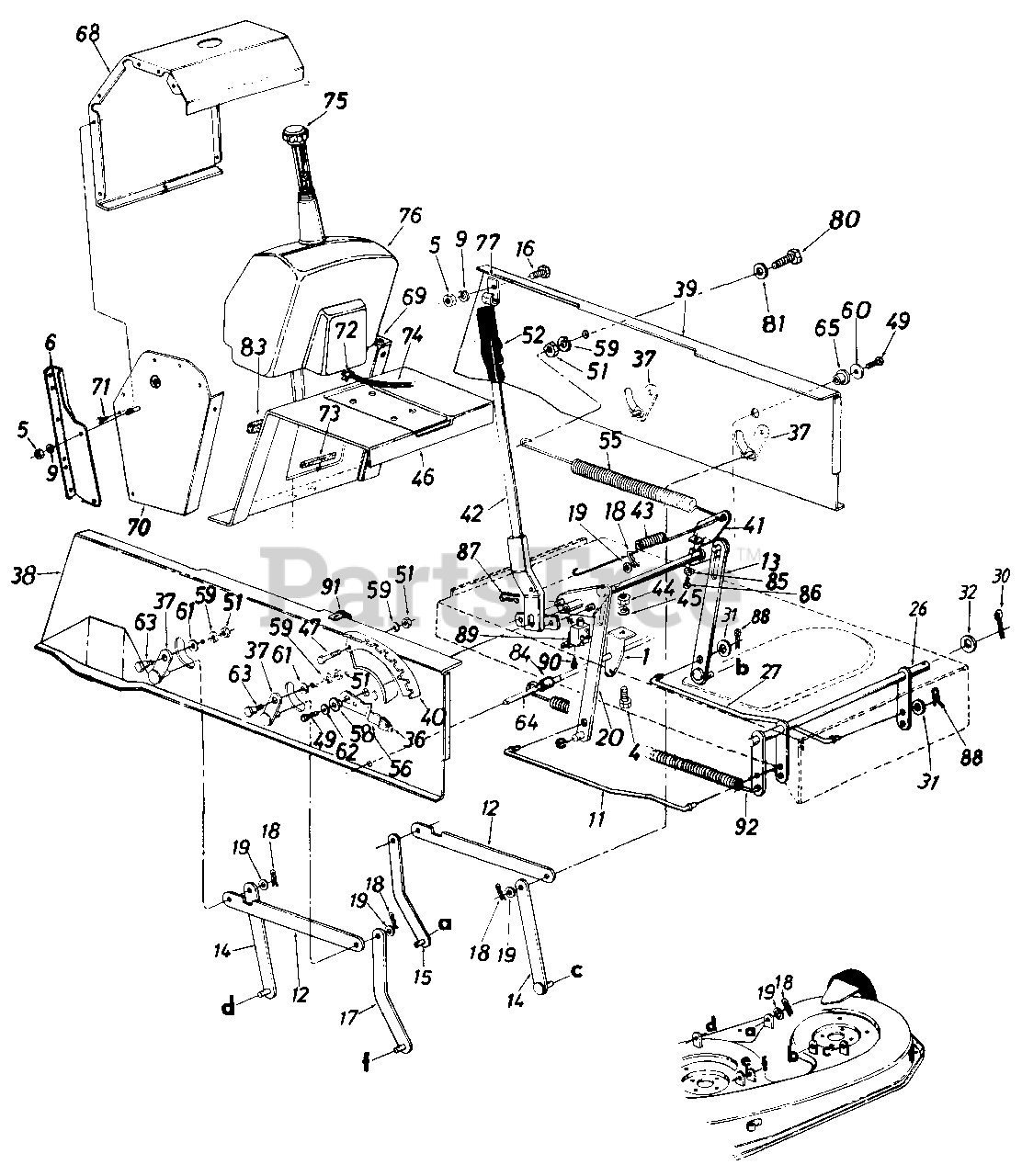

13665-7 - MTD Lawn Tractor (1988) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 16181

Spring Hanger Bracket

$

$

Currently unavailable

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 17078

Mounting Bracket R.H.

$

$

Not available

MTD 17077

Mounting Bracket L.H.

Note: (Not Shown)

$

$

Currently unavailable

9

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

$

$

Not available

12

MTD 09735

Connecting Rod 3/16 x 1 x 12.5

$

$

Not available

13

MTD 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

14

MTD 14804

Deck Hanger Link Ass'y.

$

$

Not available

15

MTD 15925

Deck Hanger Link Ass'y.

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

MTD 14800

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

18

MTD 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

19

MTD 736-0160

Fl-Wash. .531 I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

MTD 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

26

MTD 16234

Stabilizer Shaft Ass'y.

$

$

Not available

27

MTD 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

$

$

Not available

30

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0117

Fl-Wash. .385" I.D. x .620" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

32

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

36

MTD 08540

Knob Height Adj.

$

$

Not available

37

MTD 09721

Pivot Link Ass'y.

$

$

Not available

38

MTD 14602

Side Panel Upper Frame R.H.
(Superseded to 14602G-0637)

$

$

Not available

39

MTD 14603

Side Panel Upper Frame L.H.

$

$

Not available

40

MTD 16462

Index Brkt.

Note: (Deck Lift)

$

$

Currently unavailable

41

MTD 17154

Lift Shaft Ass'y.

Note: (Incl. Ref. 85 & 86)

$

$

Not available

42

MTD 16465

Lift Handle Brkt. Ass'y.
(Superseded to 753-0548)

$

$

Not available

43

MTD 732-0573

Ext. Spring

$

$

Not available

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

46

MTD 17226

Hitch Plate

$

$

Not available

47

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

55

MTD 732-0307

Ext. Spring .99" Dia. x 11.00" Lg.
(Superseded to 932-0307A)

$

$

Not available

56

MTD 732-0412

Deck Lift Down Stop
(Superseded to 983-0003)

$

$

Not available

58

MTD 748-0176

Flange Brg. .630" I.D.

$9.99

$

In Stock, only 1 left!

0

59

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

61

MTD 736-0264

Fl-Wash. .344" I.D. x .62" O.D. x .063

$6.99

$

In Stock, only 1 left!

0

62

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

63

MTD 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

64

MTD 738-0526

Running Board Rod

$

$

Not available

65

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

68

MTD 16238

Gas Tank Housing Main Panel

$

$

Not available

69

MTD 17083

Side Panel L.H. Gas Tank

Variations

MTD 17083-0637

No Longer Available PANEL-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

70

MTD 17082

Side Panel R.H. Gas Tank

$

$

Not available

71

MTD 710-0351

Truss. Mach. B-Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 726-0207

Hose Clamp .406" Dia.

$

$

Not available

73

MTD 731-0511

Trim Strip 5" Lg.

$3.99

$

Usually ships in 3-6 days

0

74

MTD 751-0173

Gas Line 44" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

75

MTD 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 9

0

76

MTD 751-0403

Gas Tank

$

$

Not available

77

MTD 726-0175

Hose Clamp

$

$

Not available

80

MTD 710-0959

Hex Bolt 5/16-18 x 1.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

81

MTD 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

83

MTD 722-0157

Foam Strip 3/8" x 1-1/8" x 1-1/2" Lg.

Note: (2 Req'd.)

$4.49

$

Usually ships in 3-6 days

0

84

MTD 711-0425

Spacer .523" I.D. x .640" O.D. x 1.95" Lg.

$

$

Currently unavailable

85

MTD 712-3007

Hex Jam Nut 5/16-18 (Grade 5)

$6.99

$

In Stock, only 3 left!

0

86

MTD 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

87

MTD 714-0145

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

88

MTD 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

89

MTD 725-0803

Safety Switch
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

90

MTD 710-0351

Truss Mach. Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

91

MTD 726-0175

Clamp

$

$

Not available

92

MTD 732-0530

Ext. Spring 13.25" Lg.

$

$

Not available
