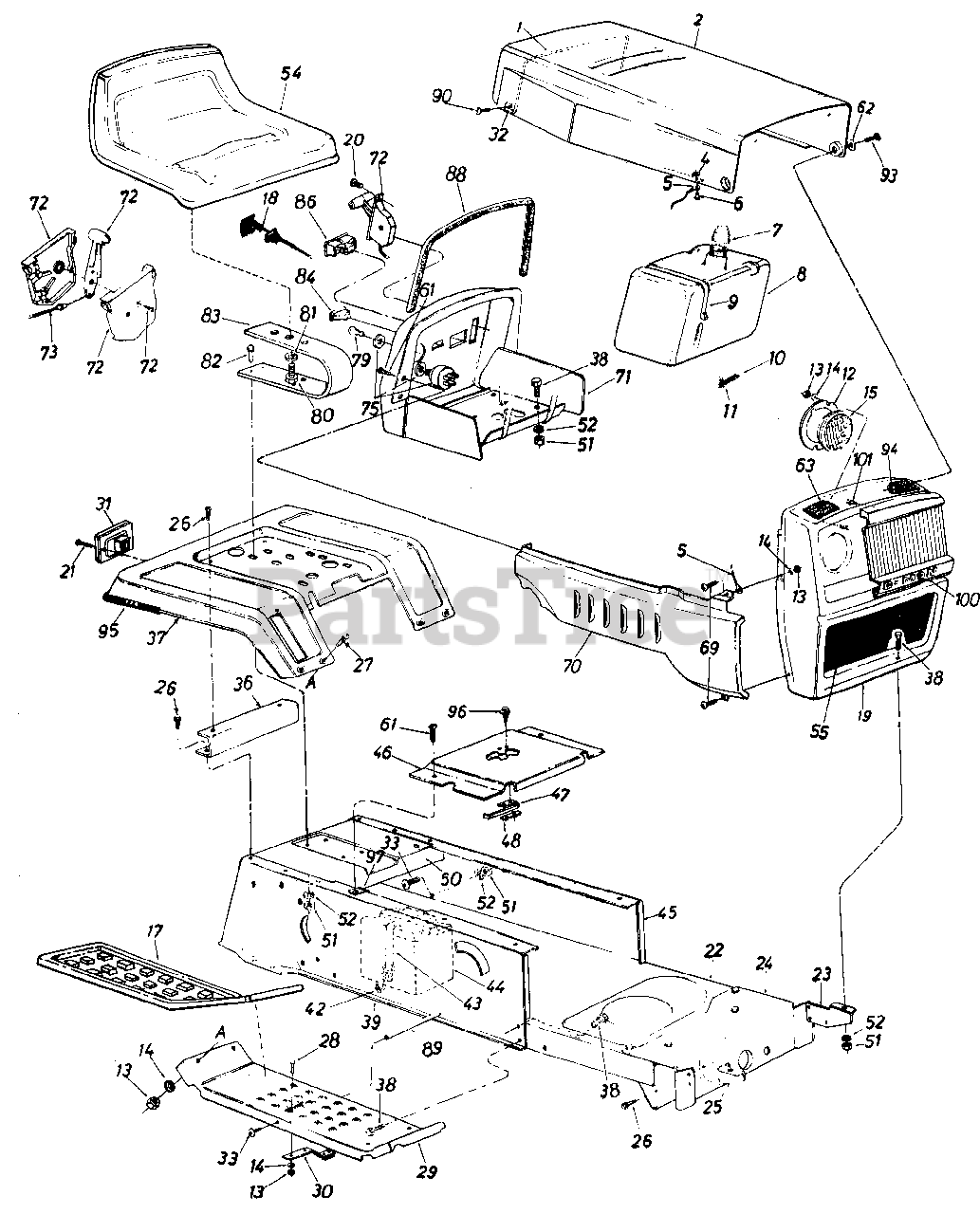

13655-7 - MTD Lawn Tractor (1987) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 732-0559

Hood Spring

$

$

Not available

2

MTD 16646

Hood

Variations

MTD 16646-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 16646-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 16646-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 736-0931

Fl-Wash. .203 I.D.

$4.99

$

In Stock, only 1 left!

0

5

MTD 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

MTD 728-0123

Pop Rivet
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 723-0333

Fuel Cap Gauge

$

$

Not available

8

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

9

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

MTD 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

MTD 726-0207

Hose Clamp

$

$

Not available

12

MTD 09960

Headlight Retainer

$

$

Not available

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

15

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

17

MTD 731-0753

Foot Pad

$

$

Not available

18

MTD 746-0615

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

19

MTD 14779

Grille Ass'y.

Variations

MTD 14779-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 14779-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

20

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

21

MTD 710-0936

Truss AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

22

MTD 15930

Lower Frame

$

$

Not available

23

MTD 16643

Grille Mount Brkt. L.H.

$

$

Not available

24

MTD 14619

Front Pivot Brkt.

$

$

Currently unavailable

25

MTD 16644

Grille Mount Brkt. R.H.

$

$

Not available

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0167

Carriage Bolt 1/4-20 x 2.0"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

30

MTD 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

31

MTD 725-1128

Taillight

$

$

Not available

32

MTD 731-0895

Hood Spring Retainer

$

$

Not available

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

36

MTD 15848

Fender Mount Brace

$

$

Currently unavailable

37

MTD 17085

Fender

$

$

Currently unavailable

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

42

MTD 747-0475

Battery Strap Hook

$

$

Not available

43

MTD 731-0718

Battery Hold Down Strap

$

$

Not available

44

MTD 725-0514

12-V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

MTD 14603

L.H. Side Frame

$

$

Not available

46

MTD 16433

Shift Cover

$

$

Currently unavailable

47

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

MTD 14607

Hitch Plate

$

$

Currently unavailable

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

MTD 757-0333

Seat Ass'y.
(Superseded to 957-0333)

$

$

Not available

55

MTD 13730

Grille Insert

$

$

Not available

61

MTD 710-0351

Truss Mach. Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

MTD 736-0413

Washer .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

63

MTD 722-0157

Foam Strip 3/8 x 1-1/8 x 11/2

$4.49

$

Usually ships in 3-6 days

0

69

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

70

MTD 16280

R.H. Grille Side Panel

$

$

Not available

MTD 16283

L.H. Grille Side Panel

$

$

Not available

71

MTD 16285

Dash Panel Ass'y.

$

$

Currently unavailable

72

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

73

MTD 746-0638

Throttle Control Wire
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 8

0

75

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

79

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

80

MTD 710-0865

Hex Bolt 1/2-13 x 1.0" Lg.

$

$

Not available

81

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

82

MTD 710-0376

Hex Bolt 5/16-18 x 1.0"

$3.99

$

In Stock, Qty 20+

0

83

MTD 732-0458

Seat Spring 5.5" High

$

$

Not available

84

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

86

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

88

MTD 731-0511

Molding Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

89

MTD 738-0526

Running Board Rod

$

$

Not available

90

MTD 710-0697

Self-Tap Scr. .5" Lg.

$

$

Not available

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

93

MTD 738-0724

Shld Bolt .375 Dia. x .125
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

94

MTD 712-0380

Hex L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

95

MTD 731-0511

Trim Strip 81"

$3.99

$

Usually ships in 3-6 days

0

96

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

97

MTD 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

100

MTD 731-0501

Bezel

$

$

Currently unavailable

101

MTD 710-0200

Self-Tap Scr. #8 x .5" Lg.

$

$

Not available
