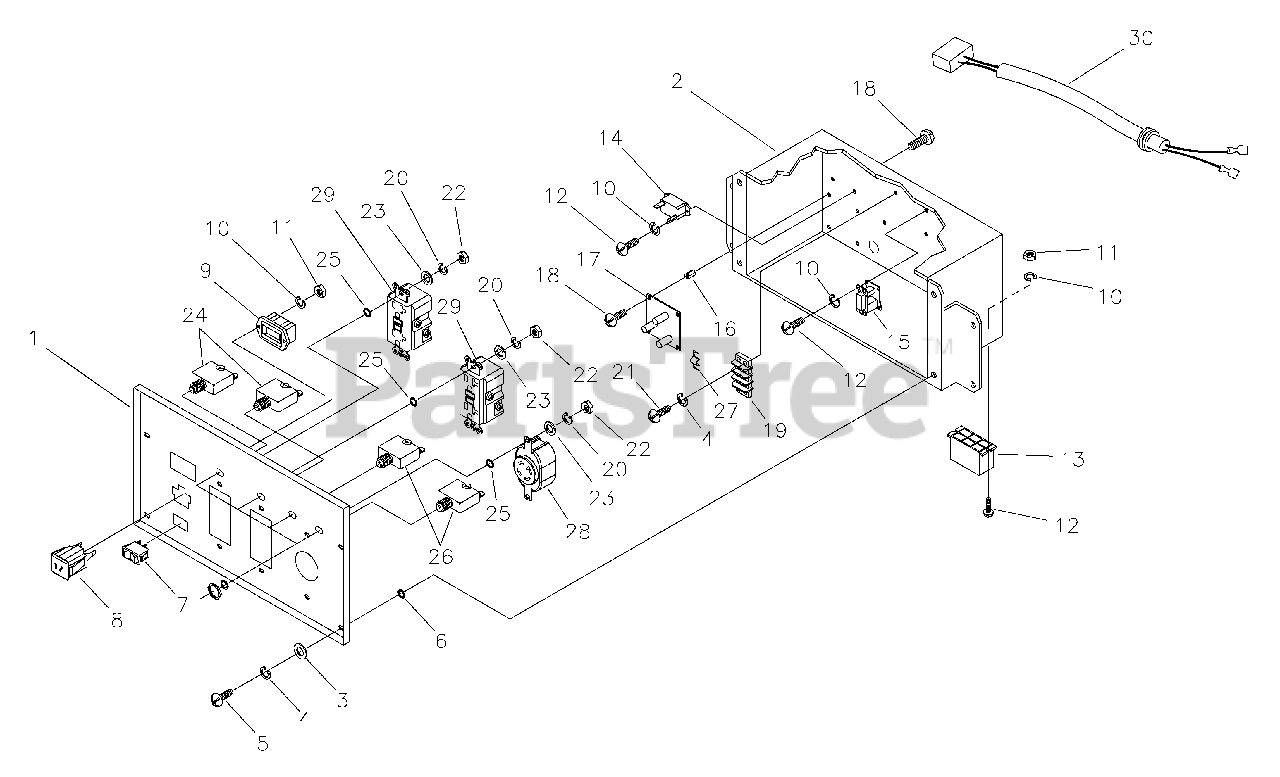

1365 GN - Husqvarna Portable Generator (2006-04) Control Panel Parts Diagram

Portable Generator

Control Panel Parts Diagram

  • Title
1

Husqvarna B191714GS

PANEL, Control

$

$

Currently unavailable

2

Husqvarna B192836GS

BOX, Control Panel

$

$

Currently unavailable

3

Husqvarna 23897GS

WASHER, Flat, #10 - M5

$

$

Currently unavailable

4

Husqvarna 49226GS

WASHER, Lock, M5

$

$

Currently unavailable

5

Husqvarna 91526GS

PPHMS, M5 - 0.8 x 12

$

$

Currently unavailable

6

Husqvarna 22447GS

WASHER, M6 - 1/4, Int. Shakeproof

$

$

Currently unavailable

7

Husqvarna 82538GS

SWITCH, Rocker

$

$

Currently unavailable

8

Husqvarna 90418GS

OUTLET, 12VDC, Snap

$

$

Currently unavailable

9

Husqvarna 77604GS

METER, Hour

$

$

Currently unavailable

10

Husqvarna 43182GS

WASHER, Lock, M3

$

$

Currently unavailable

11

Husqvarna 51714GS

NUT, M3 - 0.5

$

$

Currently unavailable

12

Husqvarna 43181GS

PHMS, M3 - 0.5 x 10

$

$

Currently unavailable

13

Husqvarna 22694GS

HOUSING, Receptacle

$

$

Currently unavailable

14

Husqvarna 87962GS

BREAKER, Circuit, 12V, 10A

$

$

Currently unavailable

15

Husqvarna 84028GS

TRANSFORMER, Idle Cnt

$

$

Currently unavailable

16

Husqvarna 64525GS

STANDOFF, Hex

$

$

Currently unavailable

17

Husqvarna 189367GS

PCB, Idle Control

$

$

Currently unavailable

18

Husqvarna 64526GS

PHTS, #6-32 x 3/8

$

$

Currently unavailable

19

Husqvarna 193077GS

STRIP,Terminal

$

$

Currently unavailable

20

Husqvarna 22264GS

WASHER, Lock, M4

$

$

Currently unavailable

21

Husqvarna 75477GS

PPHMS, M5 - 0.8 x 20

$

$

Currently unavailable

22

Husqvarna 51715GS

NUT, M4 - 0.7

$

$

Currently unavailable

23

Husqvarna 43180GS

WASHER, Flat, M4

$

$

Currently unavailable

24

Husqvarna 75207GS

BREAKER, Circuit, 20A, with Hardware

$

$

Currently unavailable

25

Husqvarna 23365GS

WASHER, Shakeproof, Int. #8

$

$

Currently unavailable

26

Husqvarna 75207PGS

BREAKER, Circuit, 25A, with Hardware

$

$

Currently unavailable

27

Husqvarna 193095GS

JUMPER,Terminal Block

$

$

Currently unavailable

28

Husqvarna 43437GS

OUTLET, 120/240V, 30A

$

$

Currently unavailable

29

Husqvarna 80409GS

OUTLET, 120V, 20A, Duplex. GFCI

$

$

Currently unavailable

30

Husqvarna 189502GS

HARNESS,Wire

$

$

Currently unavailable
