1365 GN - Husqvarna Portable Generator (2006-04) Alternator Parts Diagram

Portable Generator

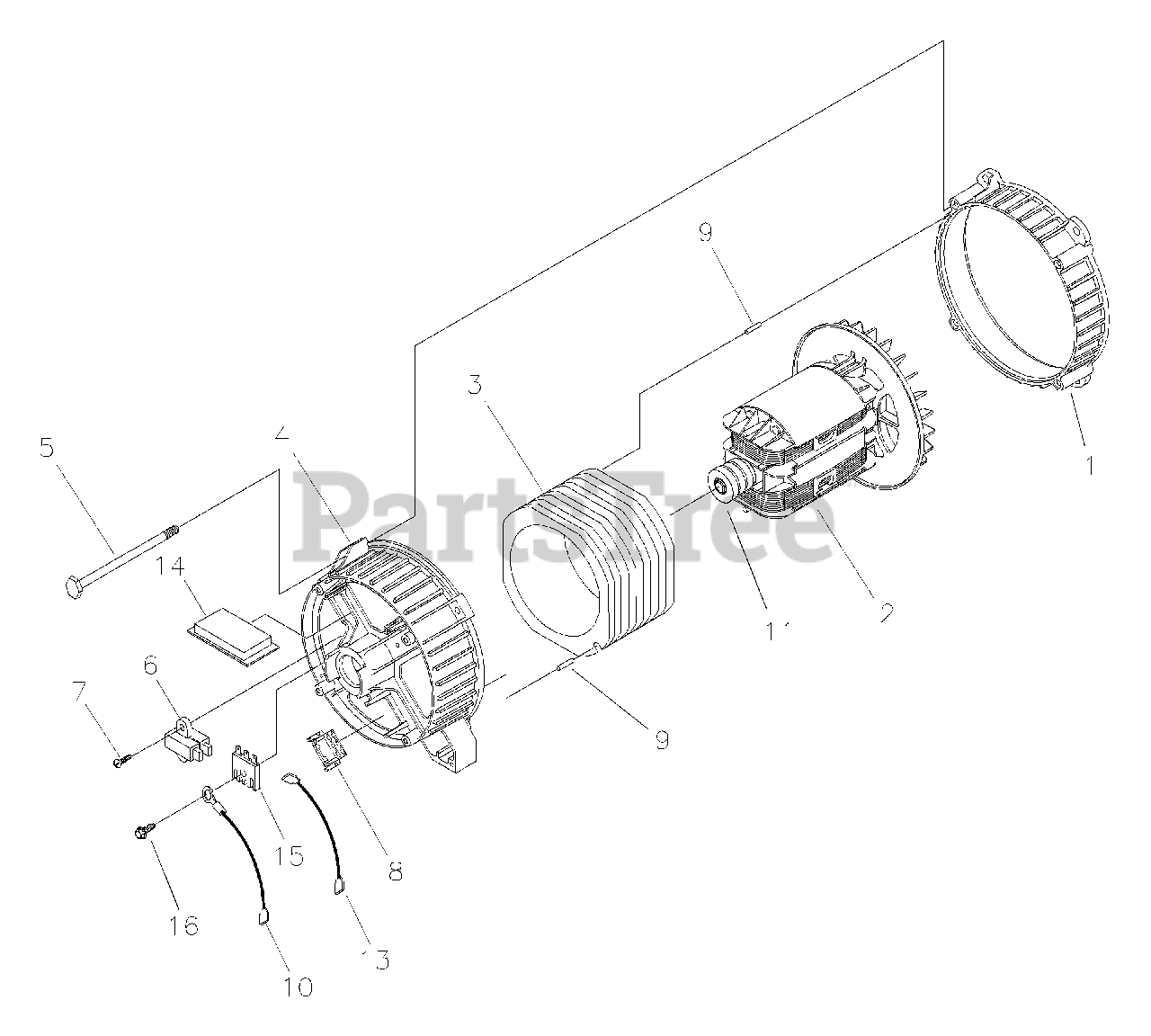

Alternator Parts Diagram

  • Title

1

Husqvarna 186059GS

ADAPTER, Mounting,Alternator

$

$

Currently unavailable

2

Husqvarna 192919GS

ROTOR

Note: (Includes Item 11)

$

$

Currently unavailable

3

Husqvarna 192920AGS

STATOR

$

$

Currently unavailable

4

Husqvarna 193336GS

RBC

Note: (with O-Ring, p/n 189197GS)

$

$

Currently unavailable

5

Husqvarna 86308HGS

HHCS, M6 - 1.0 x 140 SEMS

$

$

Currently unavailable

6

Husqvarna 66386GS

ASSY, Holder, Brush

$

$

Currently unavailable

7

Husqvarna 66849GS

TAPTITE, M5 - 0.8 x 16

$

$

Currently unavailable

8

Husqvarna 22694GS

RECEPTACLE, 6 pin

$

$

Currently unavailable

9

Husqvarna 81917GS

PIN, Roll, 4mm x 10

$

$

Currently unavailable

10

Husqvarna 193428AGS

ASSY,Wire, Ground

$

$

Currently unavailable

11

Husqvarna 65791GS

BEARING

$

$

Currently unavailable

13

Husqvarna 192403XGS

ASSY,Wire, Ground

$

$

Currently unavailable

14

Husqvarna 189769GS

REGULATOR,Voltage,AVR

$

$

Currently unavailable

15

Husqvarna 65795GS

RECTIFIER

$

$

Currently unavailable

16

Husqvarna 66849AGS

TAPTITE, M5 - 0.8 x 20

$

$

Currently unavailable
