1365 GN - Husqvarna Portable Generator (2003-07) Main Unit Parts Diagram

Portable Generator

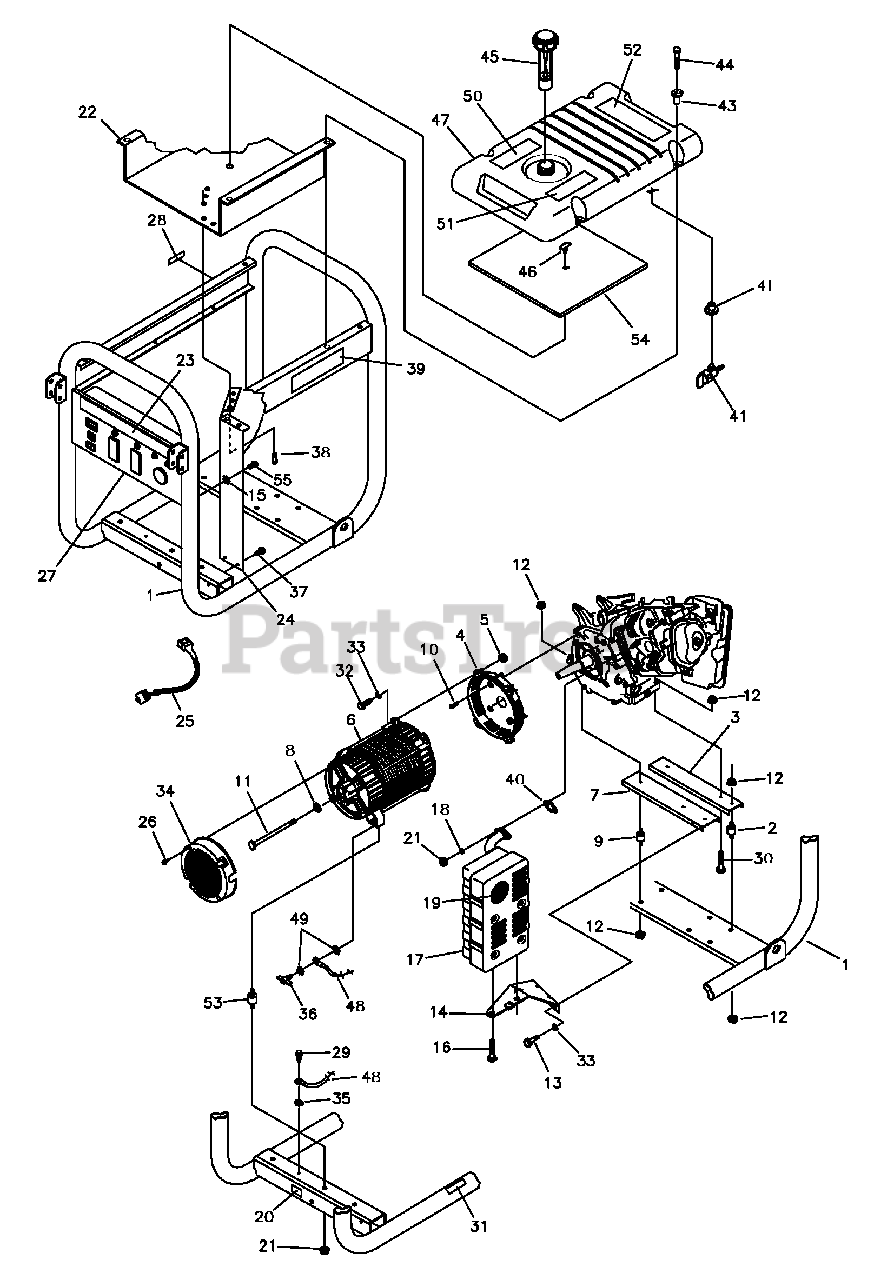

Main Unit Parts Diagram

  • Title

1

Husqvarna N192958AGS

CRADLE

$

$

Currently unavailable

2

Husqvarna 82857GS

MOUNT,Vibration

$

$

Currently unavailable

3

Husqvarna N92531GS

SUPPORT, Engine

$

$

Currently unavailable

4

Husqvarna 190220GS

HOUSING, Engine Adapter

$

$

Currently unavailable

5

Husqvarna 45771GS

NUT

$

$

Currently unavailable

6

Husqvarna ~NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Currently unavailable

7

Husqvarna N92731GS

SUPPORT, Eng/Muffler

$

$

Currently unavailable

8

Husqvarna 96796GS

WASHER

$

$

Currently unavailable

9

Husqvarna 92609GS

MOUNT,Vibration

$

$

Currently unavailable

10

Husqvarna 190274BGS

SCREW

$

$

Currently unavailable

11

Husqvarna 187365JGS

SCREW

$

$

Currently unavailable

12

Husqvarna 189160GS

NUT

$

$

Currently unavailable

13

Husqvarna 22142GS

SCREW

$

$

Currently unavailable

14

Husqvarna 193048GS

BRACKET, Muffler

$

$

Currently unavailable

15

Husqvarna 23762GS

WASHER

$

$

Currently unavailable

16

Husqvarna 66476GS

SCREW, w/Lock Washer

$

$

Currently unavailable

17

Husqvarna 192569GS

MUFFLER

$

$

Currently unavailable

18

Husqvarna 31579GS

SPACER

$

$

Currently unavailable

19

Husqvarna 83083GS

SCREEN, Spark Arrest

$

$

Currently unavailable

20

Husqvarna B4986GS

DECAL, Ground

$

$

Currently unavailable

21

Husqvarna 67989GS

NUT, Flange Serrated

$

$

Currently unavailable

22

Husqvarna 192981GS

SHIELD, Heat

$

$

Currently unavailable

23

Husqvarna 193058GS

DECAL, Panel, Control

$

$

Currently unavailable

24

Husqvarna 192983GS

SHIELD, Heat

$

$

Currently unavailable

25

Husqvarna 193157GS

HARNESS,Wire, Power

$

$

Currently unavailable

26

Husqvarna 74908GS

SCREW

$

$

Currently unavailable

27

Husqvarna 193049GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Currently unavailable

28

Husqvarna 191435GS

DECAL, Fuel Shut-off

$

$

Currently unavailable

29

Husqvarna 86292GS

SCREW

$

$

Currently unavailable

30

Husqvarna 22531GS

SCREW

$

$

Currently unavailable

31

Husqvarna 191436GS

DECAL, Hot Muffler

$

$

Currently unavailable

32

Husqvarna 43107GS

SCREW

$

$

Currently unavailable

33

Husqvarna 22129GS

WASHER, Lock

$

$

Currently unavailable

34

Husqvarna 186347GS

COVER, Bearing Carrier

$

$

Currently unavailable

35

Husqvarna 23762GS

WASHER

$

$

Currently unavailable

36

Husqvarna 86494GS

SCREW,Wing

$

$

Currently unavailable

37

Husqvarna 192376GS

SCREW

$

$

Currently unavailable

38

Husqvarna 56893GS

SCREW

$

$

Currently unavailable

39

Husqvarna 193057GS

DECAL, Unit

$

$

Currently unavailable

40

Husqvarna ~NSP

GASKET, Muffler (with Item 900)

$

$

Currently unavailable

41

Husqvarna 192980GS

KIT,VLV, FUEL, SRV

$

$

Currently unavailable

43

Husqvarna 83465GS

GROMMET,Tank

$

$

Currently unavailable

44

Husqvarna 78831AGS

SCREW

$

$

Currently unavailable

45

Husqvarna B4363GS

CAP, Fuel Gauge

$

$

Currently unavailable

46

Husqvarna 85000GS

CLIP, Insulation

$

$

Currently unavailable

47

Husqvarna 193399GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Currently unavailable

48

Husqvarna 14353621GS

WIRE, Ground

$

$

Currently unavailable

49

Husqvarna 26850GS

WASHER

$

$

Currently unavailable

50

Husqvarna 188333GS

DECAL, Instruction, Fuel Level

$

$

Currently unavailable

51

Husqvarna 92982GS

DECAL, Danger

$

$

Currently unavailable

52

Husqvarna 189274GS

DECAL, Start Instructions

$

$

Currently unavailable

53

Husqvarna 85652GS

MOUNT,Vibration

$

$

Currently unavailable

54

Husqvarna 92665GS

INSULATION

$

$

Currently unavailable

55

Husqvarna B2153GS

SCREW

$

$

Currently unavailable

900

Husqvarna ~NSP

ENGINE

$

$

Currently unavailable

Husqvarna 43438GS

PLUG, 250V 30A, 4 Prong

Note: Parts Not Illustrated

$

$

Currently unavailable

Husqvarna BB3061BGS

OIL, Bottle

Note: Parts Not Illustrated

$

$

Currently unavailable

Husqvarna 65787GP

CABLE, Battery Charge

Note: Parts Not Illustrated

$

$

Currently unavailable

Husqvarna B1464GS

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Currently unavailable

Husqvarna 193174GS

MANUAL, Owner's

Note: Parts Not Illustrated

$

$

Currently unavailable
