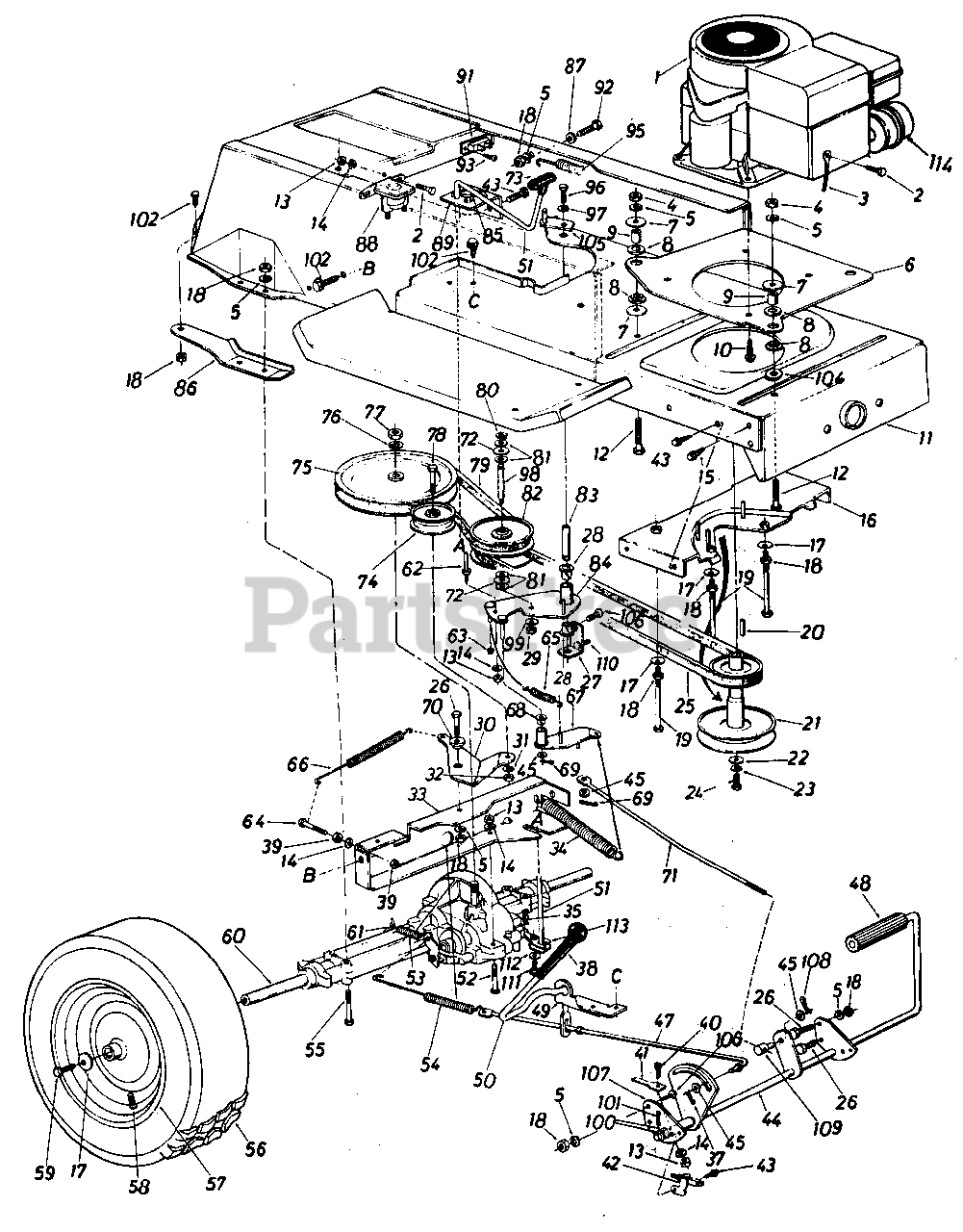

13648C - MTD Lawn Tractor (1986) Rear Axle And Frame Parts Diagram

Lawn Tractor

Rear Axle And Frame Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

MTD 725-0122

Electric Ground Wire

$

$

Not available

4

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

5

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 14791

Engine Mounting Plate

$

$

Not available

7

MTD 736-0343

Fl-Wash. .320" I.D. x 1.25"

$4.49

$

In Stock, Qty 7

0

8

MTD 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

9

MTD 750-0539

Spacer
(Superseded to 950-0539)

$

$

Not available

10

MTD 710-0650

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x 7/8" Lg.

$3.99

$

In Stock, Qty 20+

0

11

MTD 15930

Lower Frame Ass'y.

$

$

Not available

12

MTD 710-0158

Hex Bolt 5/16-24 x 1.25"
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 710-0781

Hex Wash. Hd. AB-Tap Scr. 5/16" x.75" Lg.

$

$

Not available

16

MTD 15898

Belt Guard Brkt. Ass'y.

$

$

Currently unavailable

17

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0833

Hex Bolt 5/16-18 x 5.25" Lg.

$9.49

$

In Stock, only 1 left!

0

20

MTD 714-0114

Sq. Key 1/4" x 1/4" x 2.00"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

21

MTD 756-0428

Engine Pulley

$87.99

$

In Stock, only 1 left!

0

22

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

23

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

24

MTD 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

25

MTD 754-0280

Variable-Speed Belt .715 x 53" Lg.
(Superseded to 954-0280A)

$45.99

$

Usually ships in 3-6 days

0

26

UNKNOWN

$

$

Not available

27

MTD 16553

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

MTD 741-0295

Flanged Nyliner Brg. 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

29

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

MTD 15891

Idler Bracket
(Superseded to 15891C-0637)

$

$

Not available

31

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

MTD 15945

Transaxle Support Brkt.
(Superseded to 15945E-0637)

$

$

Not available

34

MTD 732-0459

Ext. Spring .94" O.D. x 6.7
(Superseded to 732-0459C)

$18.99

$

In Stock, only 1 left!

0

35

MTD 714-0149

Inter. Cott-Pin
(Superseded to 914-0149B)

$

$

Not available

37

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

38

MTD 720-0143

Grip Black

$

$

Not available

39

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

40

MTD 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 14

0

41

MTD 732-0435

Switch Actuator

$

$

Not available

42

MTD 725-0577

Safety Switch

$

$

Not available

43

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

MTD 16235

Clutch & Brake Pedal Ass'y.

$

$

Currently unavailable

45

MTD 736-0117

Fl-Wash.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

47

MTD 747-0519

Brake Rod 20.9" Lg.

$

$

Not available

48

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

49

MTD 15889

Brake Lever Bracket

$

$

Not available

50

MTD 15888

Hill Holder Brake Handle

$

$

Currently unavailable

51

MTD 16430

Shift Lever Ass'y.

$

$

Not available

52

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

53

MTD 732-0264

Ext. Spring .38" O.D. x 2.5"
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

54

MTD 732-0413

Ext. Spring .59" O.D. x 7.08'
(Superseded to 932-0413)

$12.99

$

In Stock, only 4 left!

0

55

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

56

Wheel Ass'y. Comp.

$

$

Not available

57

Wheel Rim Only

$

$

Not available

58

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Service Only)

$4.49

$

In Stock, Qty 20+

0

59

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

60

MTD 717-0750A

Transaxle Complete

$

$

Not available

61

MTD 732-0454

Brake Return Spring Anchor
(Superseded to 932-0722A)

$12.99

$

In Stock, only 4 left!

0

62

MTD 711-0768

Belt Guard Pin 1/4-20 Thd.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

63

MTD 726-0106

Cap Speed Nut 1/4" Dia.

$3.99

$

Usually ships in 3-6 days

0

64

MTD 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

65

MTD 732-0387

Ext. Spring .50" Dia.

$

$

Not available

66

MTD 732-0384

Ext. Spring .62" O.D. x 6.12"
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

67

MTD 16554

Variable Speed Torque Brkt. Ass'y.

$

$

Currently unavailable

68

MTD 741-0419

Flanged Bearing

$

$

Not available

69

MTD 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

70

MTD 748-0234

Shoulder Spacer .500" Dia. x.27" Lg.

$4.49

$

In Stock, Qty 20+

0

71

MTD 747-0530

Speed Control Link
(Superseded to 747-0530A)

$14.99

$

Usually ships in 3-6 days

0

72

MTD 741-0405

Truss Bearing .56 Dia. x 1 .25"
(Superseded to 941-0405)

$

$

Not available

73

MTD 720-0210

Ball Knob
(Superseded to 720-0210A)

$15.99

$

In Stock, only 2 left!

0

74

MTD 756-0437

Fl-Idler Pulley 3.25" x 1.0"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

MTD 756-0374

1/2" 'V"-Pulley 8.0" O.D. x .501 " I.D.

$

$

Not available

76

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

77

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

78

MTD 710-0539

Hex Bolt 3/8-24 x .75" Lg.

$4.99

$

In Stock, Qty 11

0

79

MTD 754-0281

Variable Speed Belt .715 x 44" Lg.
(Superseded to 954-0281)

$40.99

$

Usually ships in 3-6 days

0

80

MTD 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

81

MTD 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 12

0

82

MTD 717-0800

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

$245.99

$

In Stock, only 3 left!

0

83

MTD 711-0766

Bearing Shaft

$

$

Not available

84

MTD 16354

Variable Speed Brkt. Ass'y.

$

$

Not available

85

MTD 732-0525

Comp. Spring Clip

$10.99

$

In Stock, only 1 left!

0

86

MTD 14770

Transaxle Support Brkt. R.H.

$

$

Not available

MTD 14769

Transaxle Support Brkt. L.H.
(Superseded to 14769A)

Note: (Not Shown)

$

$

Not available

87

MTD 736-0231

Fl-Wash. .34 I.D. x 1.12 O.D.

$4.99

$

In Stock, Qty 20+

0

88

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

89

MTD 16429

Shift Lever Bracket

$

$

Not available

91

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

92

MTD 710-0959

Hex Bolt 5/16-18 x 1.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

93

MTD 710-0351

Truss Hd. Phil. Scr. #10 x 1/2 " Lg .

$4.49

$

Usually ships in 3-6 days

0

95

MTD 732-0307

Ext. Spring .99" O.D. x 11.0"
(Superseded to 932-0307A)

$

$

Not available

96

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

97

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

MTD 738-0569

Shaft .56" Dia. x 3.875" Lg.
(Superseded to 938-0569)

$33.99

$

In Stock, only 1 left!

0

99

MTD 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 10

0

100

MTD 736-0256

Fl-Wash.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.0"

$4.99

$

In Stock, Qty 13

0

102

MTD 710-0604

Hex Wash. Hd. Scr. 5/16-18 x.62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

104

MTD 736-0362

Fl-Wash. .32" I.D. x 1.25"

$4.49

$

In Stock, Qty 8

0

105

MTD 16067

Belt Guard

$

$

Not available

106

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

107

MTD 15835

Pedal Bracket

$

$

Not available

108

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

109

MTD 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

110

MTD 710-0971

Truss Phillips Hd. Sc:. 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, only 1 left!

0

111

MTD 710-0195

Hex Bolt 1/4-28 x .50" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

112

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

113

MTD 16437

Shift Lever Link Ass'y.

$

$

Not available

114

UNKNOWN

$

$

Not available
