13648C - MTD Lawn Tractor (1986) 34" Parts Diagram

Lawn Tractor

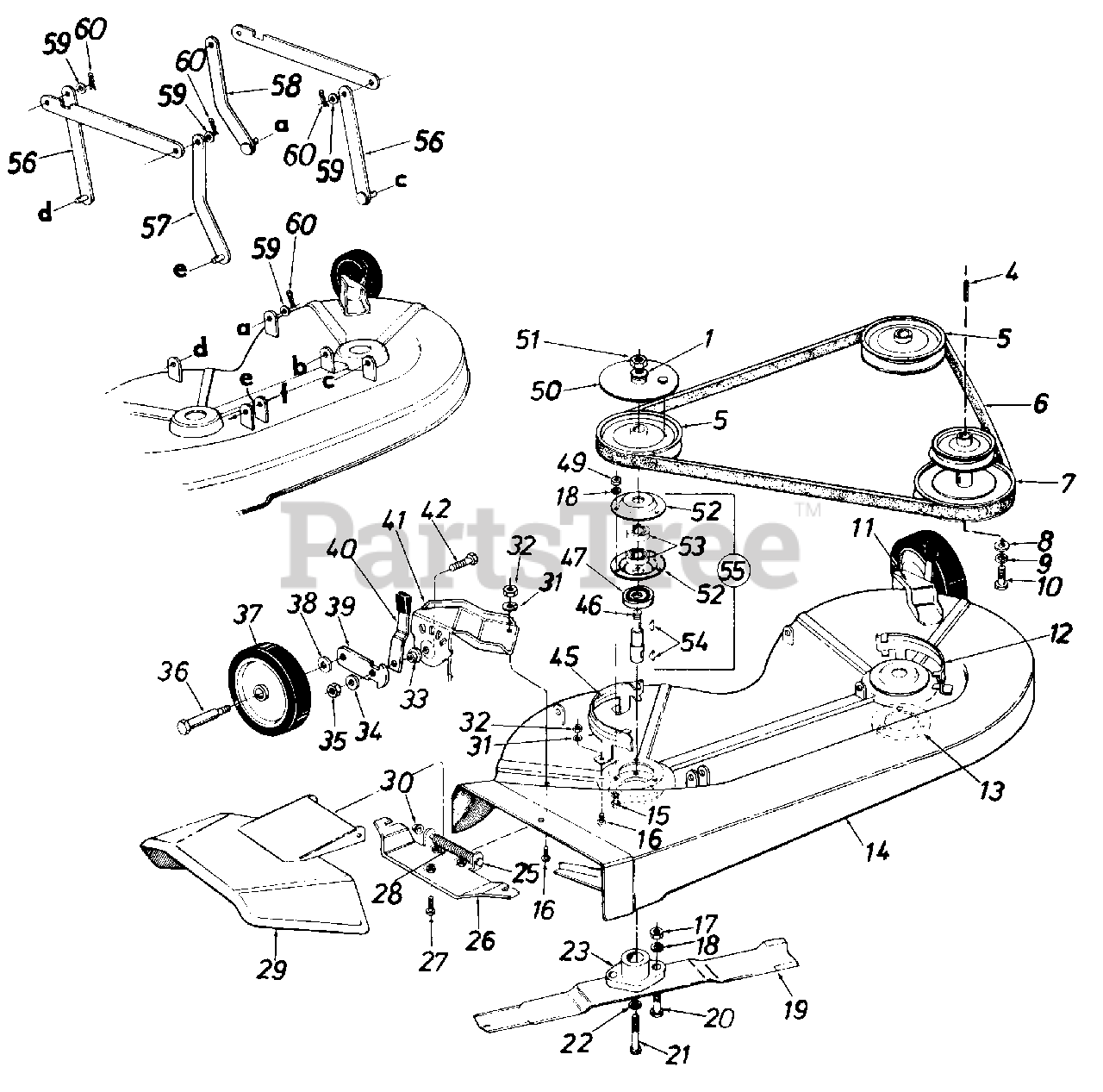

34" Parts Diagram

  • Title

1

MTD 736-0158

L-Wash. 518" I.D.

$4.49

$

In Stock, Qty 11

0

4

MTD 714-0114

Sq. Key 1/4" x 1/4" x 2.0" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

5

MTD 756-0251

Pulley 4.75" O.D.

$59.99

$

Usually ships in 3-6 days

0

6

MTD 754-0151

"V"-Belt 21/32 x 67" Lg.

Note: (34" Deck)

$

$

Not available

MTD 754-0145

"V"-Belt 21/32 x 69" Lg.
(Superseded to 954-0145A)

Note: (38" Deck)

$48.99

$

Usually ships in 3-6 days

0

7

See Lawn Tractor Manual

$

$

Not available

8

MTD 736-0322

Fl-Wash. 7116" I.D. x 1.25 O.D. x .180t

$9.49

$

In Stock, Qty 7

0

9

MTD 736-0171

L-Wash. 7116" I.D.

$4.49

$

In Stock, only 4 left!

0

10

MTD 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

11

MTD 09082

Wheel Brkt. L.H.

$

$

Not available

12

MTD 12672

Belt Guard L.H.

$

$

Not available

13

MTD 09164

Plate Deck Reinforcement
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

14

MTD 16459

34" Deck Ass'y.

$

$

Currently unavailable

MTD 16458

34" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Currently unavailable

MTD 14662

38" Deck Ass'y.

$

$

Currently unavailable

MTD 14777

38" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Currently unavailable

15

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

16

MTD 710-0195

Hex Bolt 1/4-28 x .50" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

17

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

18

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 742-0120

17" Blade

Note: (34" Deck)

$

$

Not available

MTD 742-0122

19" Blade

Note: (38" Deck)

$

$

Not available

20

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

22

MTD 736-0217

L-Wash. 3/8" I.D. (Heavy Duty)

$4.49

$

In Stock, Qty 8

0

23

MTD 10769

Blade Adapter Kit

$

$

Not available

25

MTD 711-0571

Hinge Pin

$

$

Not available

26

MTD 11396

Adapter Plate

$

$

Not available

27

MTD 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 732-0261

Torsion Spring

$

$

Not available

29

MTD 11633

Chute Cover Ass'y. Comp.

$

$

Currently unavailable

30

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

31

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

33

MTD 748-0279

Shld. Spacer

$

$

Not available

34

MTD 736-0219

Bell-Wash. .400" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

35

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

36

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

37

MTD 734-0973

Plastic Wheel 5.0" x 1.38"

$12.99

$

In Stock, Qty 20+

0

38

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

39

MTD 10937

Pivot Bar

$

$

Not available

40

MTD 14082

Spring Lever Ass'y. w/Knob

$

$

Not available

41

MTD 09080

Wheel Brkt. R.H.

$

$

Not available

42

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

45

MTD 12673

Belt Guard R.H.

$

$

Not available

46

MTD 711-0255

Blade Spindle
(Superseded to 911-0255)

$

$

Not available

47

MTD 13703

Bearing Shield

$

$

Not available

49

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

MTD 09322

Brake Disc

$

$

Not available

51

MTD 712-0261

Hex Jam L-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

52

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

53

MTD 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

54

MTD 714-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

55

MTD 09321

Blade Spindle Ass'y.

$102.99

$

Usually ships in 3-6 days

0

56

MTD 14804

Link Deck Hanger Ass'y.

$

$

Not available

57

MTD 14800

Link Deck Hanger Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

58

MTD 15925

Link Deck Hanger Ass'y. L.H.

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 736-0160

Fl-Wash. .53" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

60

MTD 714-0101

Inter. Cotter Pin .50" Dia.

$4.99

$

In Stock, only 2 left!

0

MTD 761-0168

Blade Brake Assembly
(Superseded to 961-0168D)

Note: (34" Deck)

$31.99

$

In Stock, only 1 left!

0

MTD 761-0169

Blade Brake Assembly
(Superseded to 961-0197)

Note: (38" Deck)

$

$

Not available
