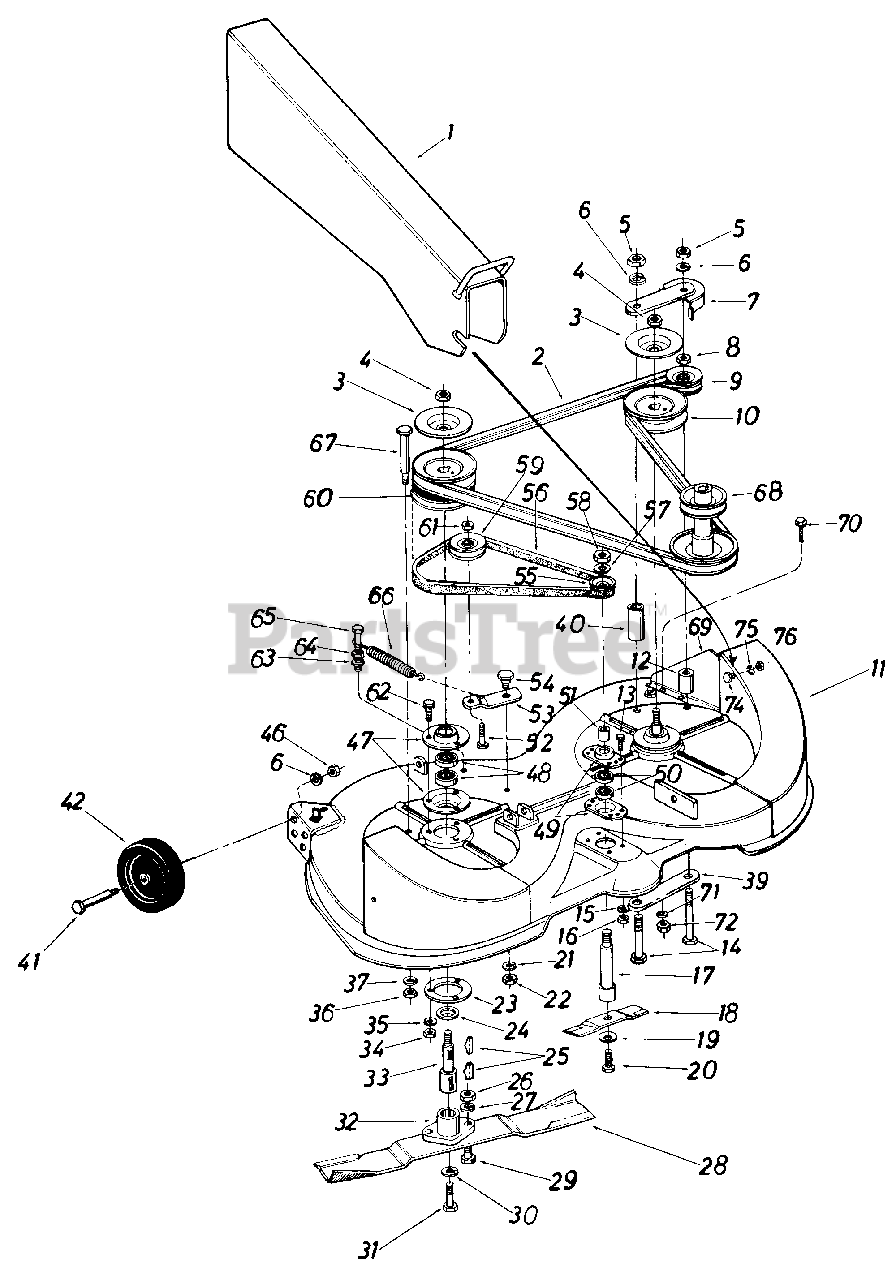

13619S - MTD Lawn Tractor (1985) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 16083

Chute Extension Ass'y. L.H.

$

$

Currently unavailable

MTD 16084

Chute Extension Ass'y. R.H.

Note: (Not Shown)

$

$

Currently unavailable

2

MTD 754-0270

"V"-Belt 1/2 x 84.0" Lg.
(Superseded to 954-0270)

$109.99

$

Usually ships in 3-6 days

0

3

MTD 09322

Brake Disc

$

$

Not available

4

MTD 712-0261

Hex Cent. L-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

5

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

6

MTD 736-0169

L-Wash. 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

7

MTD 15877

Idler Pulley Belt Guard Ass'y.

$

$

Currently unavailable

8

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

9

MTD 756-0399

5/8-V Belt Idler 3.50" O.D.
(Superseded to 956-0399)

$50.99

$

In Stock, only 2 left!

0

10

MTD 756-0397

5/8-V Pulley .628" I.D. x 5.25 O.D.

$

$

Not available

11

MTD 16075

40" Rear Discharge Deck

$

$

Currently unavailable

12

MTD 750-0586

Spacer.40" I.D. x 1.25" O.D. x 1.59" Lg.

$

$

Currently unavailable

13

MTD 710-0567

Hex Sems Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

14

MTD 710-0771

Hex Bolt 3/8-16 x 3.75" Lg.
(Superseded to 710-04576)

$4.99

$

Usually ships in 3-6 days

0

15

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

17

MTD 738-0557

Blade Spindle

$

$

Not available

18

MTD 742-0252

6.50" Blade

$

$

Not available

19

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0877

Hex Bolt 3/8-24 x .87" Lg.
(Superseded to 710-0696)

$6.99

$

In Stock, only 2 left!

0

21

MTD 736-0169

L-Wash. 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

MTD 09164

Plate Deck Reinforcement
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

24

MTD 13703

Bearing Shield

$

$

Not available

25

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

26

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 742-0254

20" High Lift Blade R.H.

$

$

Not available

MTD 742-0253

20" High Lift Blade L.H.

Note: (Not Shown)

$

$

Not available

29

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. Grade 5

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0217

L-Wash. 3/8 I.D. Heavy Duty

$4.49

$

In Stock, Qty 6

0

31

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. Grade 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

32

MTD 10769

Blade Adapter Kit

$

$

Not available

33

MTD 738-0396

Blade Spindle

$

$

Not available

34

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

37

MTD 736-0169

L-Wash. 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

39

MTD 15878

Reinforcement Plate

$

$

Not available

40

MTD 750-0593

Spacer 3/8 I.D. x .50" O.D. x 2.72"

$

$

Not available

41

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53" Lg.
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

42

MTD 734-0973

Cutting Deck Wheel

$12.99

$

In Stock, Qty 20+

0

46

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

47

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

48

MTD 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

49

MTD 15319

Bearing Housing
(Superseded to 15319B)

$10.99

$

In Stock, only 3 left!

0

50

MTD 741-0155

Ball Bearing .63" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

51

MTD 750-0182

Spacer.63" I.D. x .88" O.D. x 1.25" Lg.

$

$

Currently unavailable

52

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

53

MTD 15358

Idler Bracket

$

$

Currently unavailable

54

MTD 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 2 left!

0

55

MTD 756-0406

3/8" V-Pulley .628" I.D. x 2.00" O.D.

$

$

Not available

56

MTD 754-0271

"V"-Belt 3/8 x 39.0" Lg.
(Superseded to 954-0271)

$28.99

$

Usually ships in 3-6 days

0

57

MTD 736-0317

Bell-Wash. .63" I.D. x 1.05" O.D.

$7.99

$

In Stock, Qty 20+

0

58

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

59

MTD 756-0166

1/2" V-Belt Idler 2.625" O.D.
(Superseded to 756-1035A)

$34.99

$

In Stock, only 3 left!

0

60

MTD 756-0398

Double Pulley

$

$

Currently unavailable

61

MTD 712-0181

Hex Top L-Jam Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

62

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

63

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

64

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

65

MTD 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 13

0

66

MTD 732-0429

Ext. Spring .50" O.D. x 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

67

MTD 738-0481

Shld. Bolt .498" Dia. x 2.63" Lg.
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

68

MTD 756-0428

Two Step Engine Pulley

$87.99

$

In Stock, only 1 left!

0

69

MTD 16081

Inner Chute Extension L.H.

$

$

Currently unavailable

MTD 16082

Inner Chute Extension R.H.

Note: (Not Shown)

$

$

Currently unavailable

70

MTD 710-0567

Hex Sems Scr. 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

71

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

72

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

74

MTD 738-0183

Shld. Scr. .500" Dia. x .218
(Superseded to 938-0183)

$

$

Not available

75

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

76

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0
