13618C - MTD Lawn Tractor (1986) Frame And Front Cowling Parts Diagram

Lawn Tractor

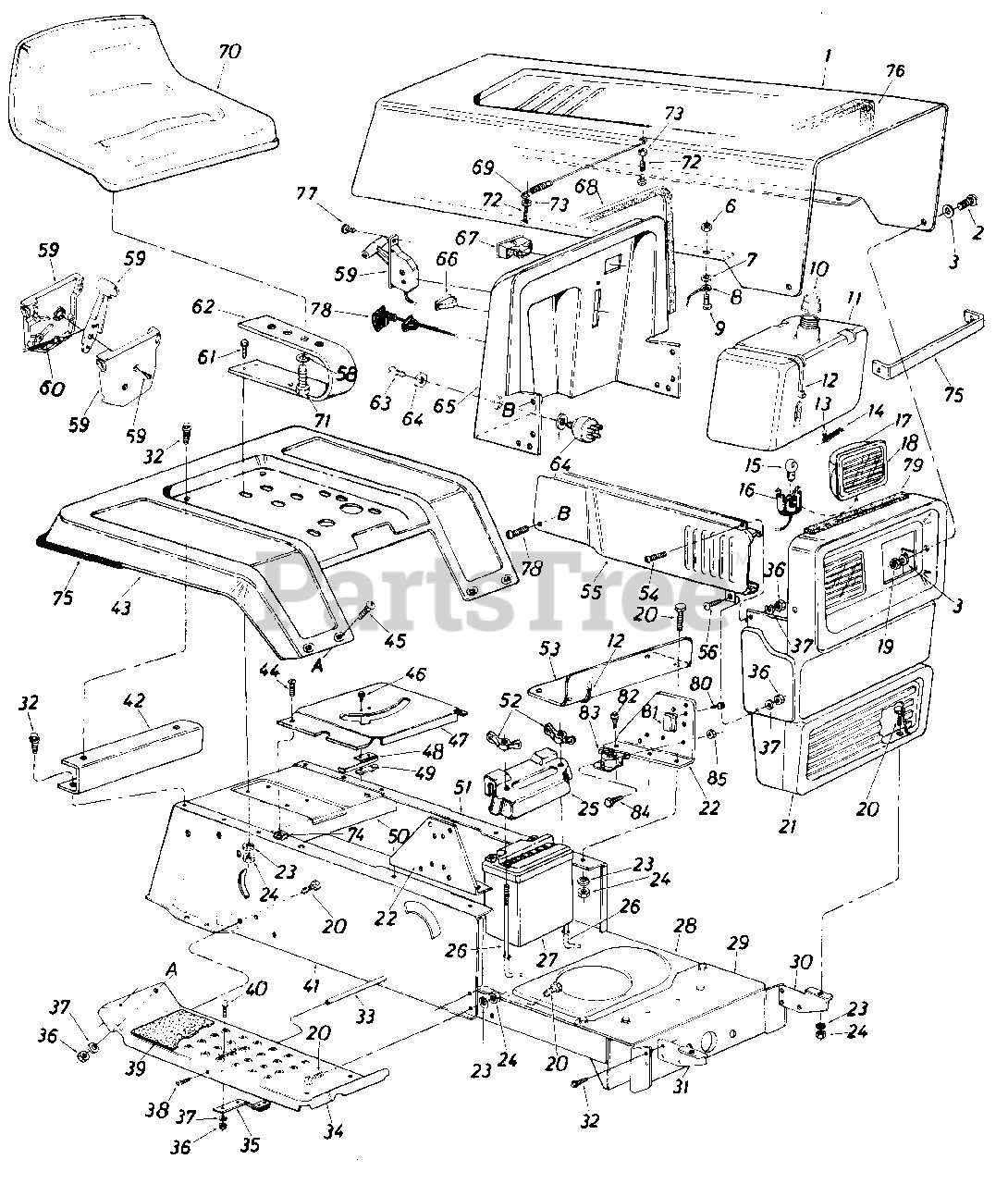

Frame And Front Cowling Parts Diagram

  • Title

1

MTD 15808

Hood

$

$

Currently unavailable

2

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0463

Fl-Wash. .296" I.D. x .62" O.D.

$4.49

$

In Stock, only 2 left!

0

6

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

7

MTD 736-0931

Fl-Wash. .203" I.D. x .41 O.D. x .040

$4.99

$

In Stock, only 1 left!

0

8

MTD 727-0290

Hood Stop
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

9

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2" Lg.

$4.49

$

In Stock, only 2 left!

0

10

MTD 723-0155

Fuel Cap Gauge

$

$

Not available

11

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

12

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

13

MTD 726-0207

Hose Clamp

$

$

Not available

14

MTD 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

16

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

18

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

19

MTD 712-0324

Hex Sems Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 15804

Grille

$

$

Currently unavailable

22

MTD 15829

Dash Support Bracket
(Superseded to 17294B-0637)

$

$

Not available

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 731-0708

Battery Cover

$

$

Not available

26

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

27

MTD 725-0514

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

28

MTD 14606

Lower Frame

$

$

Currently unavailable

29

MTD 14619

Front Pivot Brk't.

$

$

Currently unavailable

30

MTD 15821

Grille Mount Brk't. L.H.

$

$

Not available

31

MTD 15822

Grille Mount Brk't. R.H.

Variations

MTD 15822-0637

No Longer Available BRACKET-GR - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0526

Running Board Rod

$

$

Not available

34

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

35

MTD 761-0169

Blade Brake Ass'y.
(Superseded to 961-0197)

$

$

Not available

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

37

MTD 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

39

MTD 723-0360

Foot Pad

$

$

Not available

40

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

41

MTD 14602

R.H Side Frame
(Superseded to 14602G-0637)

$

$

Not available

42

MTD 15848

Fender Mount Brace

$

$

Currently unavailable

43

MTD 15887

Rear Fender

$

$

Currently unavailable

44

MTD 710-0351

Truss Mach. Tap Screw #10 x .50"

$4.49

$

In Stock, only 2 left!

0

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 710-0473

Truss Hd. Scr. #10-24 x .50 Lg.

$4.49

$

In Stock, only 2 left!

0

47

MTD 15823

Transmission Panel

$

$

Currently unavailable

48

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

49

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

50

MTD 14607

Hitch Plate

$

$

Currently unavailable

51

MTD 14603

L.H. Side Frame

$

$

Not available

52

MTD 712-0113

Wing Nut 1/4-20 Plastic
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

53

MTD 14605

Fuel Tank Support

$

$

Not available

54

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75 Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

55

MTD 15814

Side Cover R.H.

$

$

Not available

MTD 15815

Side Cover L.H.

Note: (Not Shown)

$

$

Not available

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50 Lg.

$4.49

$

Usually ships in 3-6 days

0

58

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

59

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

60

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

61

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, only 4 left!

0

62

MTD 732-0458

Seat Spring 5.5 High

$

$

Not available

63

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

65

MTD 16550

Dash Panel

$

$

Not available

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

68

MTD 731-0511

Molding Strip

$3.99

$

Usually ships in 3-6 days

0

69

MTD 732-0462

Hood Spring

$

$

Not available

70

MTD 757-0299

Seat Ass'y.

Note: (w/o Safety Switch)

$

$

Currently unavailable

MTD 757-0318

Seat Ass'y.

Note: (w/Safety Switch)

$

$

Not available

71

MTD 710-0493

Hex Bolt 1/2-13 x 1.0" Lg.
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

72

MTD 710-0749

Hex Bolt #10-24 x 1.0" Lg.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

73

MTD 712-0102

Hex Top L-Nut #10-24
(Superseded to 712-0102A)

$3.99

$

Usually ships in 3-6 days

0

74

MTD 726-0139

Speed Nut #10Z

$6.99

$

In Stock, only 1 left!

0

75

MTD 15931

Tie Strap Grille Side Panel

$

$

Not available

76

MTD 722-0138

PVC-Foam

$

$

Not available

77

MTD 710-0779

Truss Mach. Scr. AB-Tap #10 x .50 Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

78

MTD 746-0613

Choke Control Comp.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

79

MTD 722-0155

Foam Strip 3/8 x 1 x 14 Lg.

$

$

Not available

80

MTD 710-0599

Hex Wash. Hd. AB-Tap Scr. 1/4 x.50 Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

82

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

83

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

84

MTD 710-0289

Hex Bolt 1/4-20 x .50 Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

85

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0
