1361614G401 - Yard-Man Lawn Tractor (1996) Steering Assembly Complete Parts Diagram

Lawn Tractor

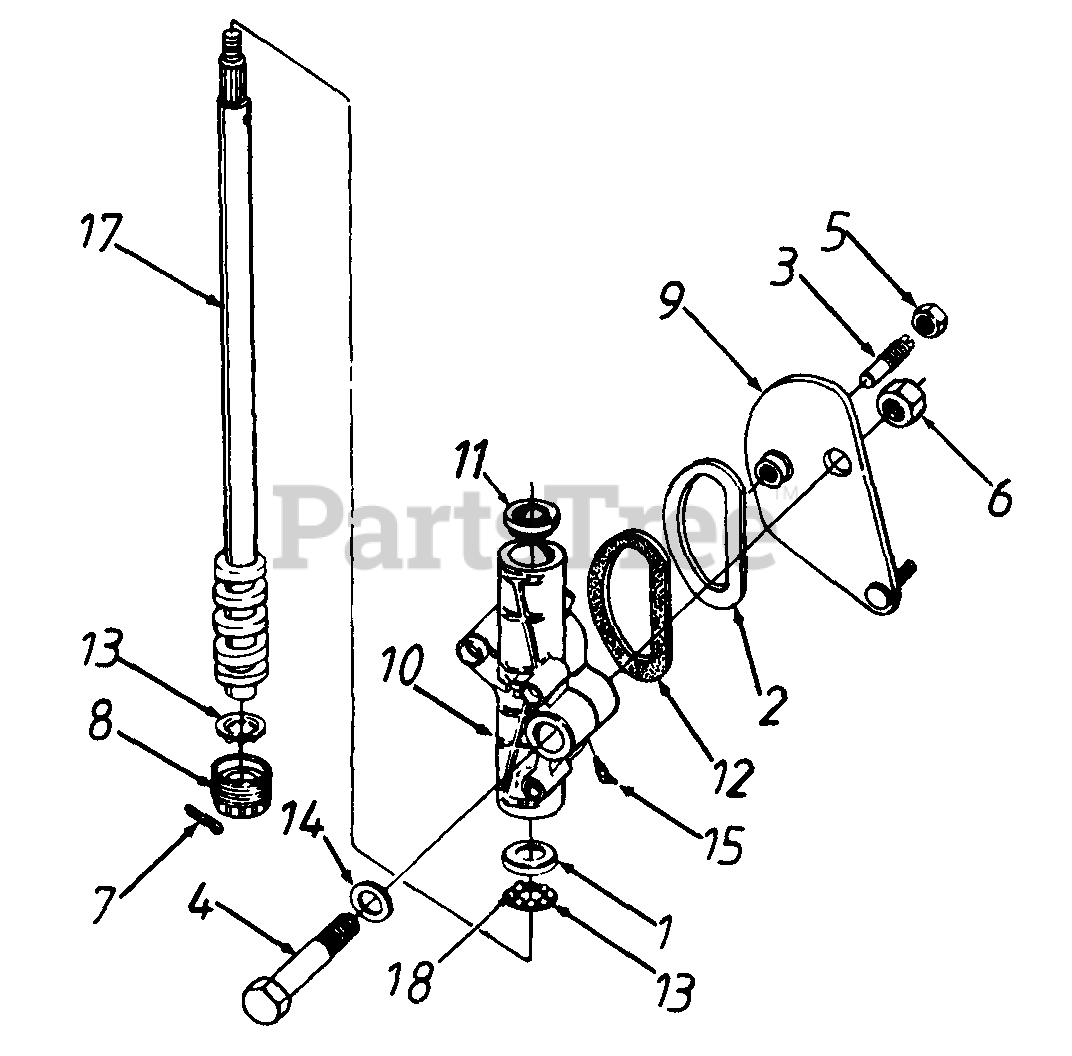

Steering Assembly Complete Parts Diagram

  • Title

1

MTD 703-1029

Bearing Cup
(Superseded to 903-1029)

$

$

Not available

2

MTD 703-1031

Seal Retainer

$

$

Not available

3

MTD 711-3149A

Cam Follower
(Superseded to 911-3149A)

$45.99

$

In Stock, only 2 left!

0

4

MTD 711-3208

Pivot Shaft

$

$

Not available

5

MTD 712-3062

Hex Jam Nut 9/16-18 Thd.

$

$

Not available

6

MTD 712-3063

Hex Crown L-Nut 5/8-18 Thd.

$8.49

$

Usually ships in 3-6 days

0

7

MTD 714-0474

Cotter Pin 1/8" Dia.

$4.99

$

In Stock, Qty 14

0

8

MTD 717-1048

Adjustment Plug Ass'y.

$

$

Not available

9

MTD 717-1219

Steering Arm Ass'y.

$45.99

$

Usually ships in 3-6 days

0

10

MTD 618-0047

Steering Hsg. Bushing Ass'y.

$

$

Not available

11

MTD 721-0260

Oil Seal

$

$

Not available

12

MTD 723-3039

Seal
(Superseded to 923-3039)

$8.99

$

In Stock, Qty 20+

0

13

MTD 731-3040

Ball Retainer

$3.99

$

Usually ships in 3-6 days

0

14

MTD 736-3029

Fl-Wash. .781" I.D. x 1.25" O.D.

$11.99

$

In Stock, only 1 left!

0

15

MTD 737-3001

Grease Fltting

$12.99

$

Usually ships in 3-6 days

0

17

MTD 611-0018

Steering Shaft Ass'y.

$

$

Not available

18

MTD 741-3022

Ball Bearing

$4.49

$

Usually ships in 3-6 days

0

MTD 737-3007

Grease #251 E.P.

$

$

Currently unavailable

MTD 618-0114

Steering Ass'y. Comp.

Note: (Incl. Ref. Nos. 1 thru 18)

$

$

Not available
