136 LE - Husqvarna Chainsaw, CARB (2001-06) Clutch / Drum / Oiler Assy. Parts Diagram

Chainsaw, CARB

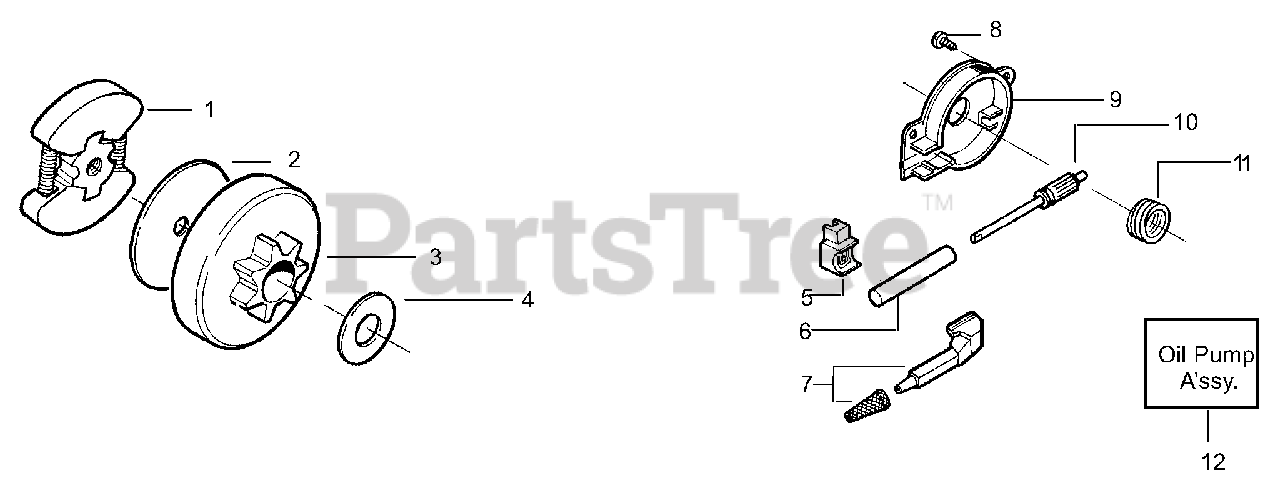

Clutch / Drum / Oiler Assy. Parts Diagram

  • Title
1

Husqvarna 530014949

Assy-Clutch

$22.99

$

In Stock, only 2 left!

0

2

Husqvarna 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 6

0

3

Husqvarna 530047061

Assy-Clutch Drum w/Bearing

$17.99

$

In Stock, Qty 5

0

4

Husqvarna 530015907

Washer-Thrust

$

$

Not available

5

Husqvarna 530019174

Seal-Oil
(Superseded to 545037101)

$10.99

$

In Stock, Qty 7

0

6

Husqvarna 530029834

Barrel-Oil Pump
(Superseded to 545036801)

$20.99

$

In Stock, Qty 6

0

7

Husqvarna 530014776

Assy-Oil Pick-Up and Screen
(Superseded to 545037101)

$10.99

$

In Stock, Qty 7

0

$6.49

$

In Stock, Qty 13

0

9

Husqvarna 530029835

Housing-Oil Pump
(Superseded to 545036801)

$20.99

$

In Stock, Qty 6

0

10

Husqvarna 530029838

Assy-Plunger & Gear
(Superseded to 545036801)

$20.99

$

In Stock, Qty 6

0

11

Husqvarna 530029833

Worm-Oil Pump

$8.99

$

In Stock, Qty 11

0

12

Husqvarna 530014410

Assy-Oil Pump
(Superseded to 545036801)

Note: (Includes 6,9 & 10)

$20.99

$

In Stock, Qty 6

0
