136 - Husqvarna Chainsaw (SN: 20040100001 & Above) FUEL SYSTEM Parts Diagram

Chainsaw

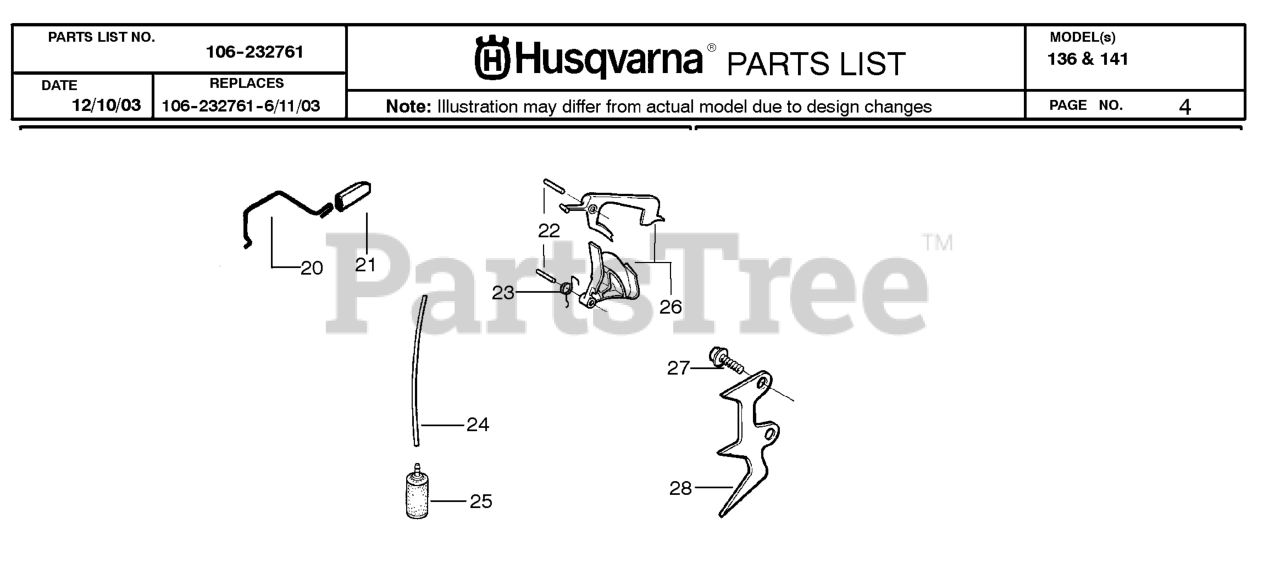

FUEL SYSTEM Parts Diagram

  • Title
25

Husqvarna 530014497

FUEL PICK-UP
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 530029860

PIN,TRIGGER 36/41

$4.99

$

In Stock, Qty 9

0

23

Husqvarna 530029861

TRIGGER SPRING 36/41

$6.49

$

In Stock, Qty 5

0

27

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 530029869

THROTTLE SHAFT 36/41

$6.49

$

In Stock, Qty 16

0

26

Husqvarna 530069587

THROTTLE TRIGGER-KIT

$

$

Not available

28

Husqvarna 530014381

SPIKE 36/41

$9.99

$

In Stock, Qty 7

0

21

Husqvarna 530029863

THROTTLE ACTUATOR 36/41

$

$

Not available

24

Husqvarna 530069247

HOSE. FUEL

$7.99

$

In Stock, Qty 20+

0
