136 - Husqvarna Chainsaw (SN: 20040100001 & Above) CARBURETOR DETAILS Parts Diagram

Chainsaw

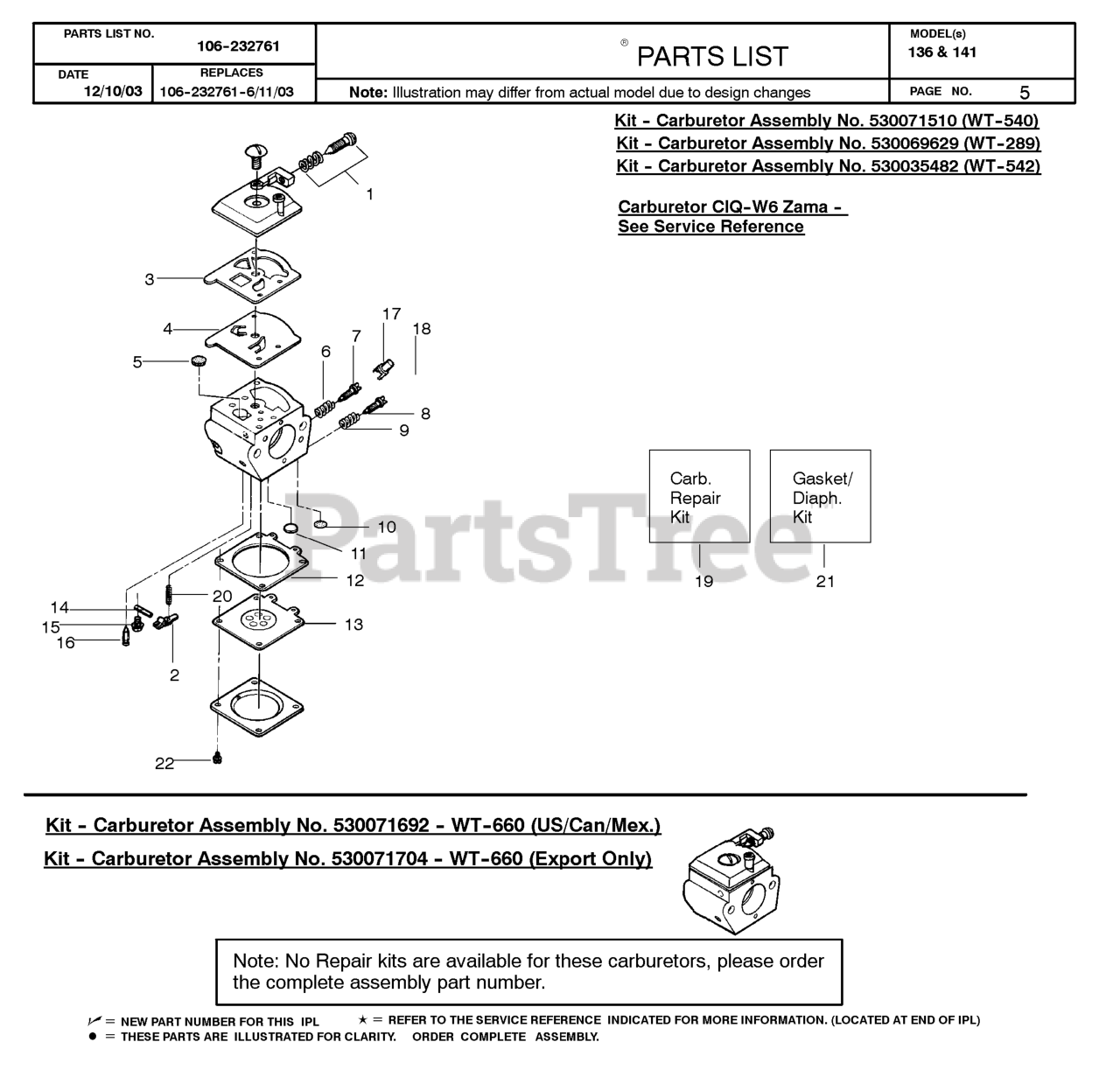

CARBURETOR DETAILS Parts Diagram

  • Title
10

Husqvarna 530035162

Plug-5/16 Dia. Welch

$

$

Not available

20

Husqvarna 530035188

SPRING-METERING LEVER

$4.99

$

In Stock, Qty 10

0

13

Husqvarna 530035014

DIAPHRAGM
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

6

Husqvarna 530035293

NEEDLE SPRING

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530035031

LEVER
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530037259

High Speed Needle

$

$

Not available

530035269

Husqvarna 530035269

KIT, CARB REPAIR

$47.99

$

In Stock, only 1 left!

0

22

Husqvarna 530035021

SCREW, MOTOR COVER

$3.99

$

Usually ships in 3-10 days

0

11

$3.99

$

Usually ships in 3-10 days

0

530069844

Husqvarna 530069844

GASKET/DIAPHRAGM KIT

$20.99

$

In Stock, Qty 5

0

7

Husqvarna 530035281

LOW SPEED NEEDLE

$9.99

$

In Stock, only 1 left!

0

4

Husqvarna 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

$7.99

$

In Stock, Qty 6

0

12

Husqvarna 530035165

METERING DIA GASKET

$

$

Not available

18

Husqvarna 530038478

LIMITER CAP-LOW

$3.99

$

In Stock, Qty 19

0

530031157

Husqvarna 530031157

LIMITER CAP REMOVAL TOOL
(Superseded to 540068201)

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

530035270

Husqvarna 530035270

GASKET/DIAPHRAGM KIT ZAMA

$18.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

1

Husqvarna 530035296

IDLE ADV SCREW KIT

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530038479

LIMITER CAP-HIGH

$3.99

$

Usually ships in 3-10 days

0

530031161

Husqvarna 530031161

LIMITER CAP INSERTION TOOL

$

$

Not available

9

Husqvarna 530035295

NEEDLE SPRING

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 530035028

PIN
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

5

Husqvarna 507432582

FILTER SCREEN
(Superseded to 530035249)

$14.99

$

In Stock, Qty 5

0

530069826

Husqvarna 530069826

CARB REPAIR KIT

$34.99

$

In Stock, only 1 left!

0
