136 - Husqvarna Chainsaw (SN: 20013500001 - 20030100000) CYLINDER PISTON Parts Diagram

Chainsaw

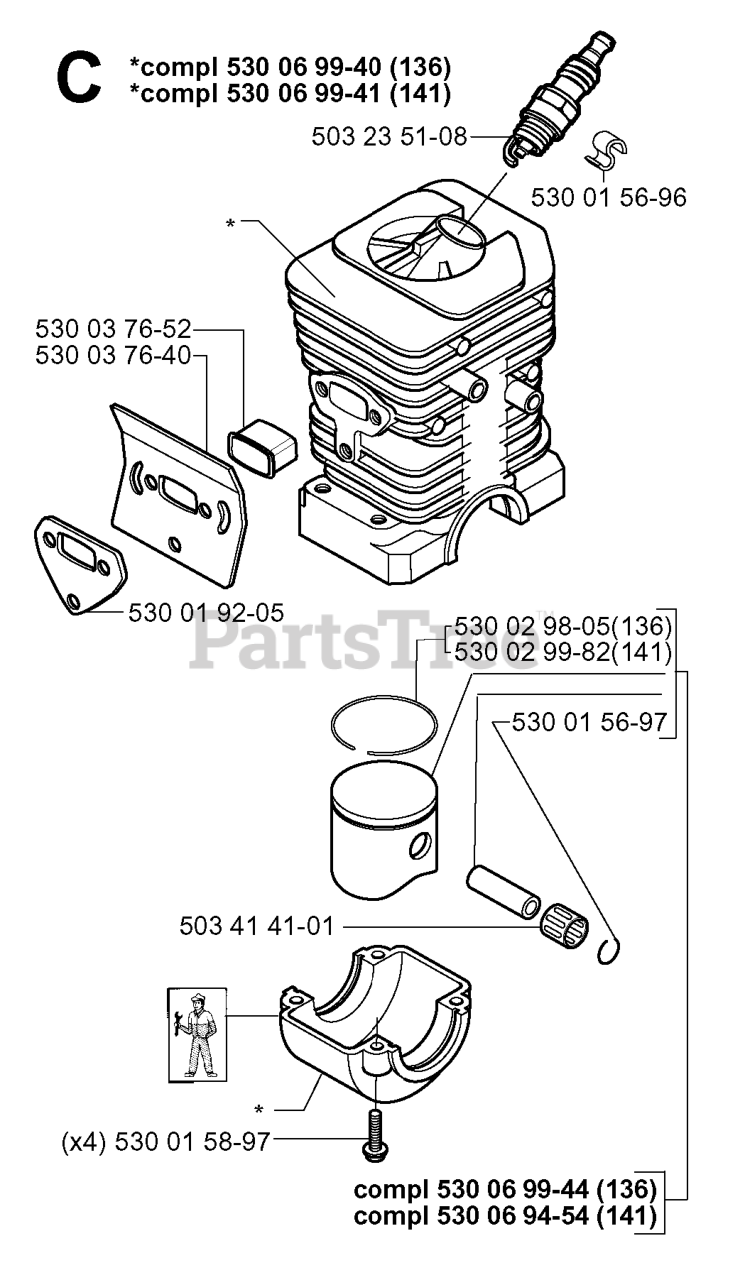

CYLINDER PISTON Parts Diagram

  • Title
530 01 56-96

Husqvarna 530015696

CLIP - HIGH TENSION LE

$

$

Not available

530 03 76-52

Husqvarna 530037652

HEAT INSULATOR

$

$

Not available

530 06 99-44

Husqvarna 530069944

PISTON KIT/136

Note: 136

$

$

Not available

530 02 98-05

Husqvarna 530029805

PISTON RING 36

Note: 136

$6.49

$

In Stock, Qty 17

0

530 03 76-40

Husqvarna 530037640

MUFFLER PLATE

$

$

Not available

530 01 56-97

Husqvarna 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

530 01 92-05

$6.49

$

In Stock, only 3 left!

0

503 41 41-01

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

530 06 99-40

Husqvarna 530069940

CYLINDER ASSY/136

Note: 136

$

$

Not available

530 01 58-97

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0
