136 - Husqvarna Chainsaw (2003-06) Clutch / Drum & Oil Pump & Crankcase / Oil Tank Parts Diagram

Chainsaw

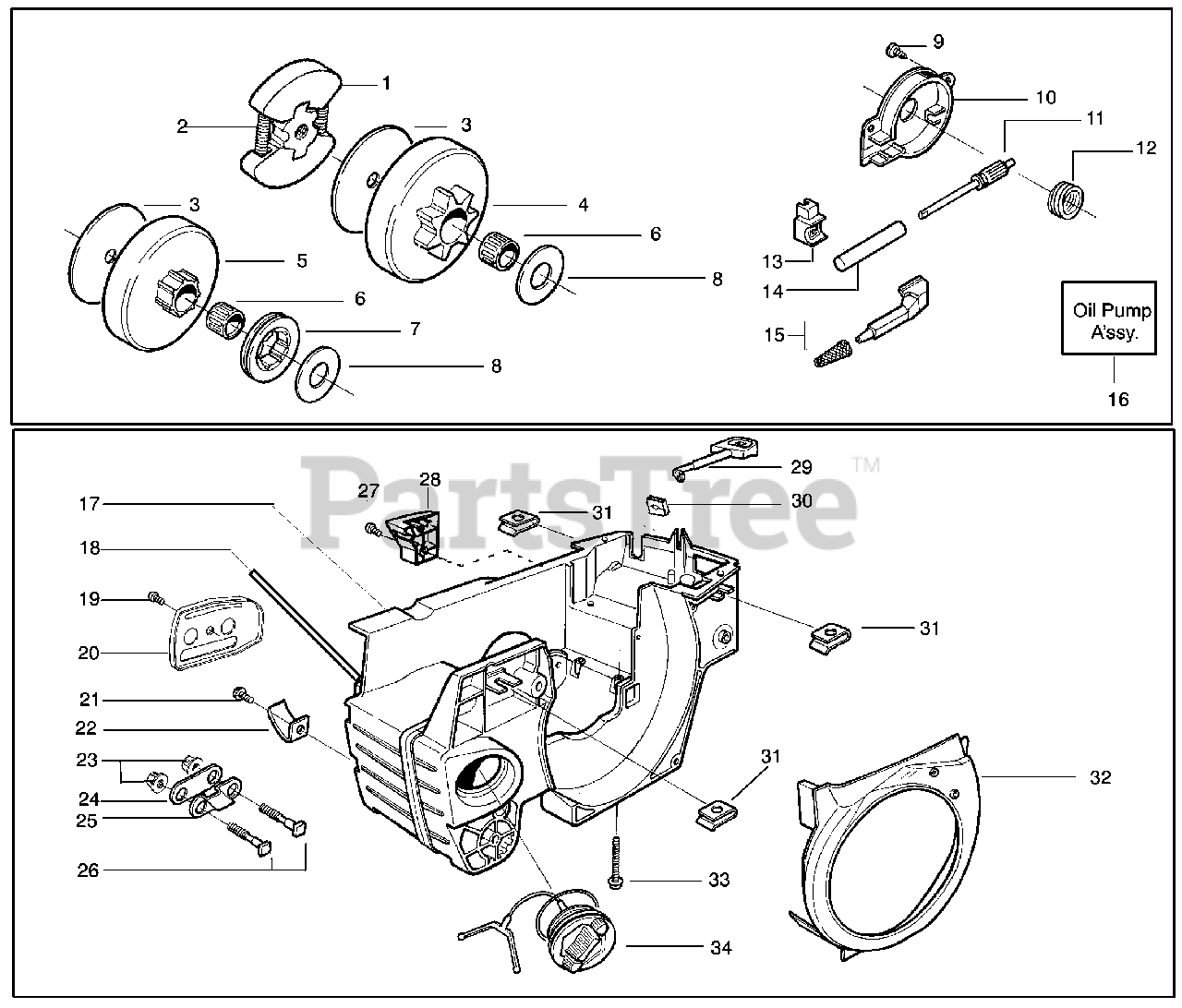

Clutch / Drum & Oil Pump & Crankcase / Oil Tank Parts Diagram

  • Title
1

Husqvarna 530014949

Clutch Assembly

Note: (incl. 2)

$22.99

$

In Stock, only 1 left!

0

2

Husqvarna 530094188

Spring - Clutch
(Superseded to 530014949)

$22.99

$

In Stock, only 1 left!

0

3

Husqvarna 530015611

Clutch Washer

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 530047061

Clutch Drum w/Bearing Ass'y. (3/8x6 spur)

$17.99

$

In Stock, Qty 5

0

5

Husqvarna 530069316

Drum, Adapt. & Bearing Kit

Note: (incl. 6 & 7)

$

$

Not available

6

Husqvarna 530032119

Clutch Bearing

$10.99

$

In Stock, Qty 5

0

7

Husqvarna 530028650

Rim-Floating (.325)
(Superseded to 640200010)

$8.49

$

In Stock, Qty 8

0

8

Husqvarna 530015907

Thrust Washer

$

$

Not available

$6.49

$

In Stock, Qty 13

0

10

Husqvarna 530029835

Oil Pump Housing
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

11

Husqvarna 530029838

Plunger & Gear Assembly
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

12

Husqvarna 530029833

Oil Pump Worm

$8.99

$

In Stock, Qty 12

0

13

Husqvarna 530019174

Oil Seal
(Superseded to 545037101)

$10.99

$

In Stock, Qty 12

0

14

Husqvarna 530029834

Oil Pump Barrel
(Superseded to 545036801)

$20.99

$

In Stock, Qty 8

0

15

Husqvarna 530014776

Oil Pick-Up and Screen Assembly
(Superseded to 545037101)

$10.99

$

In Stock, Qty 12

0

16

Husqvarna 530014410

Oil Pump Assembly
(Superseded to 545036801)

Note: (Includes 10,11 & 14)

$20.99

$

In Stock, Qty 8

0

17

Husqvarna 530069942

Kit - Chassis Ass'y.
(Superseded to 530069887)

$

$

Not available

18

Husqvarna 530052440

Tube-Oil Vent
(Superseded to 545033501)

$6.99

$

In Stock, only 1 left!

0

19

Husqvarna 530015896

Screw

Note: (optional)

$6.49

$

In Stock, Qty 13

0

20

$

$

Not available

$

$

Not available

22

Husqvarna 530029850

Chain Catcher

$6.49

$

In Stock, only 3 left!

0

$3.99

$

In Stock, Qty 10

0

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 530036043

Bar Stud Plate

$5.99

$

In Stock, only 3 left!

0

26

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 20+

0

$

$

Not available

29

Husqvarna 530029831

Choke Lever

$

$

Not available

30

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530015922

Type "U" Speed Nut

$6.49

$

In Stock, Qty 5

0

32

Husqvarna 530029800

Baffle Plate

$

$

Not available

$

$

Not available

34

Husqvarna 501765602

Assy.- Oil Tank Cap

$10.99

$

In Stock, Qty 5

0
